COOLING SYSTEM
7-13

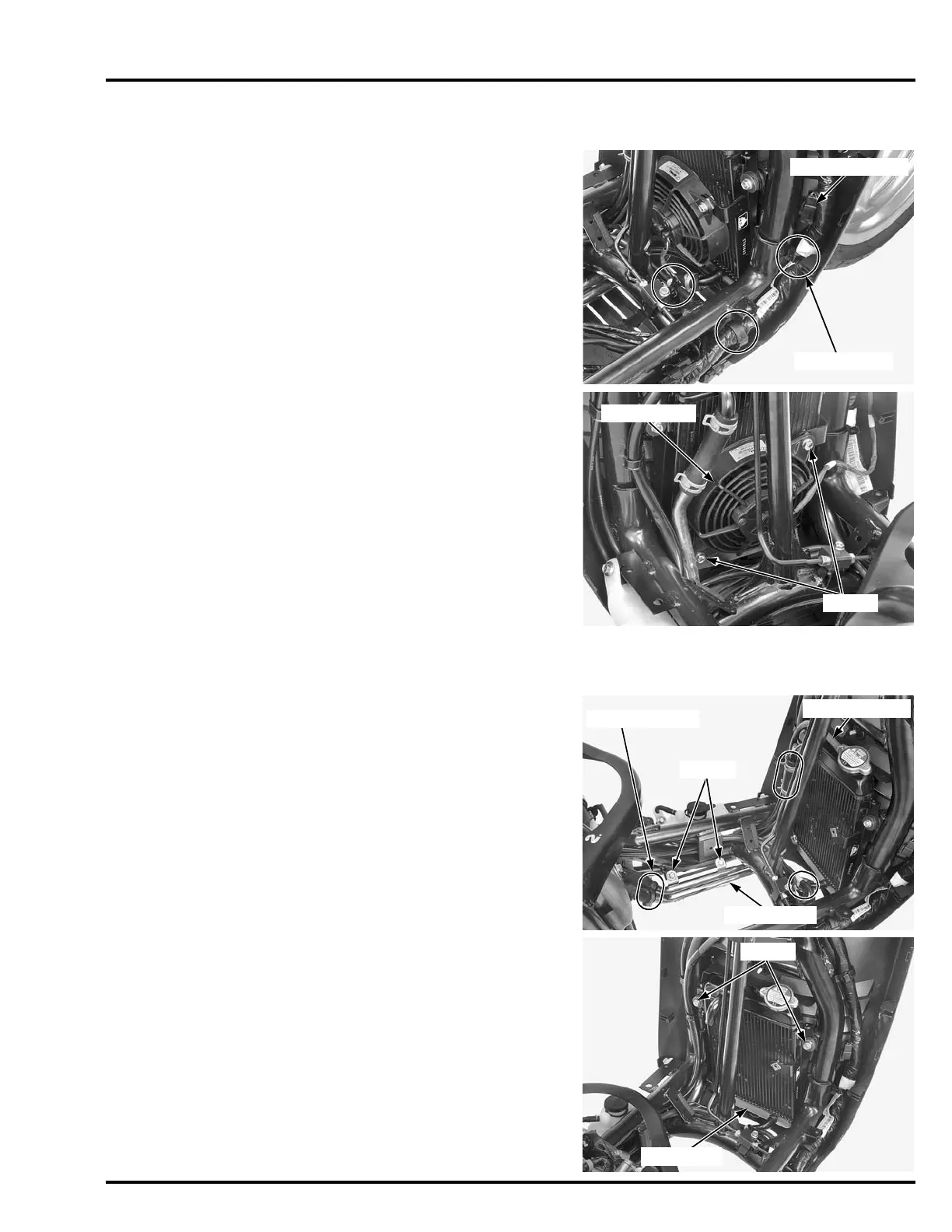

RADIATOR COOLING FAN
REMOVAL/INSTALLATION
Remove the following:
– floor side cover (page 3-8)
– front inner cover (page 3-10)
– floor panel (page 3-13)
Disconnect the cooling fan motor 2P (black) connec-
tor and release the wire from the three wire bands.
Be careful not to
damage the radiator
fins.
Remove the two mounting bolts and fan motor
assembly.
Installation is in the reverse order of removal.
RADIATOR
REMOVAL/INSTALLATION
Remove the following:
– floor side cover (page 3-8)
– under cover (page 3-9)
– front inner cover (page 3-10)
– floor panel (page 3-13)
– cooling fan motor (page 7-13)
Drain the coolant from the system (page 7-7).
Disconnect the four water hoses.
Disconnect the radiator siphon hose.
Remove the two bolts and water pipe.
Be careful not to
damage the radiator
fins.
Remove the two mounting bolts and radiator.
Installation is in the reverse order of removal.
• When installing the radiator, align the rubber of
the radiator and hole of the frame.
Fill and bleed the cooling system (page 7-6).
WIRE BANDS
2P CONNECTOR
Route the fan
motor wire properly
(page 1-19).
TORQUE:
Cooling fan motor mounting bolt:
8.5 N·m (0.9 kgf·m, 6.3 lbf·ft)
FAN MOTOR
BOLTS
WATER HOSES
BOLTS
WATER PIPE
SIPHON HOSE
Route the wire
harness properly
(page 1-19).
RADIATOR
BOLTS

Honda SH300 2009 Specifications

General

Displacement	279.1 cc
Bore x Stroke	72 mm x 68.5 mm
Compression Ratio	10.5:1
Fuel System	PGM-FI electronic fuel injection
Front Tire	110/70-16
Rear Tire	130/70-16
Width	730 mm
Height	1, 195 mm
Wheelbase	1, 420 mm
Engine Type	Liquid-cooled, 4-stroke, single-cylinder
Max Torque	26.5 Nm @ 6, 000 rpm
Transmission	V-Matic
Front Suspension	Telescopic fork, 35 mm
Rear Suspension	Twin shock absorbers
Front Brake	256mm hydraulic disc
Rear Brake	240 mm disc
