FRAME/BODY PANELS/EXHAUST SYSTEM
3-12

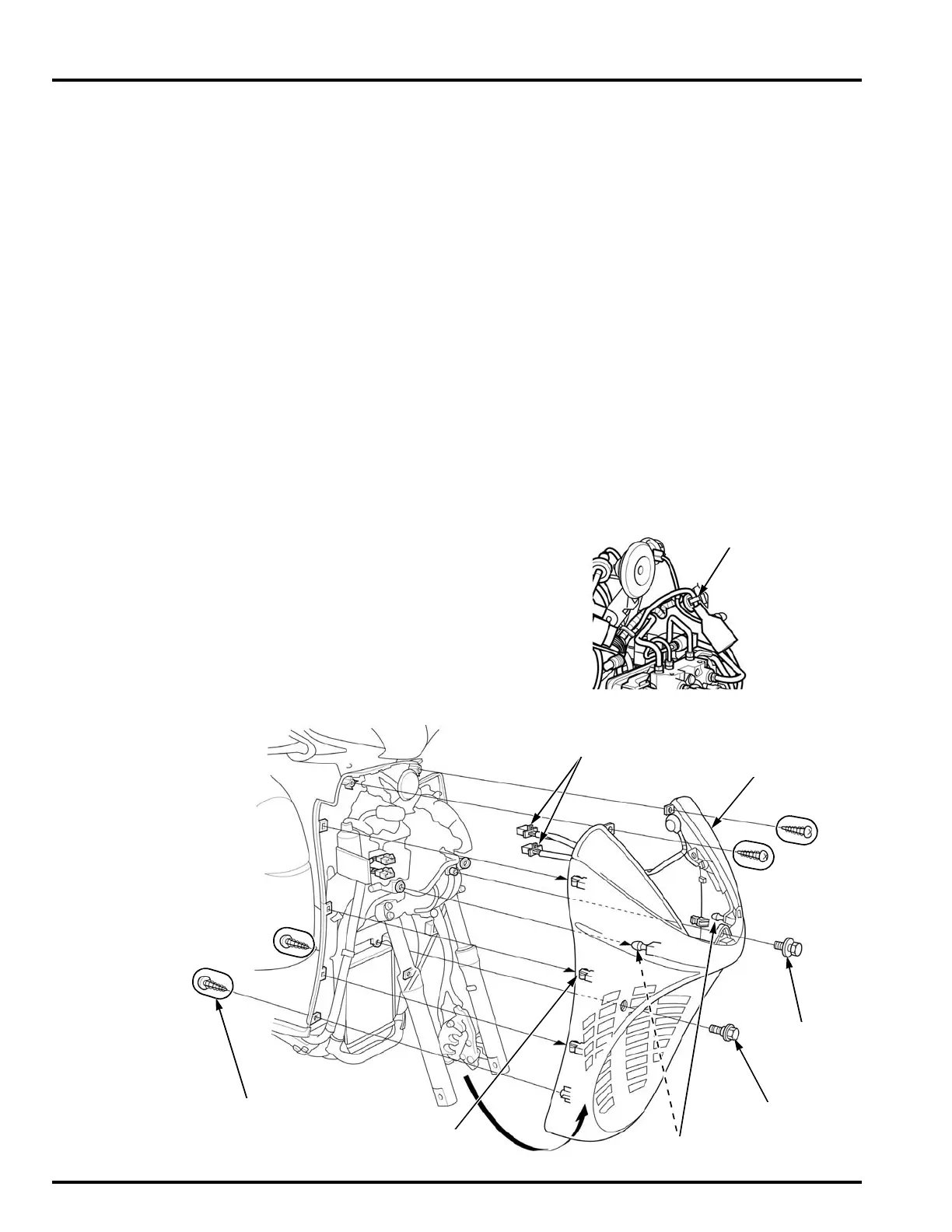

FRONT LOWER COVER
Remove the following:
– front upper cover (page 3-9)
– floor side cover (page 3-8)
– front wheel (page 15-6)
– front fender (page 3-8)
– four screws
– washer bolt
– special bolt
Release the two bosses from the grommets and six
snap fit clips (page 3-4) of the front lower cover
from the front inner cover slots.
Release the accessory socket wire band from the
front lower cover.
Release the left turn signal/position wire from the
wire band.
While supporting the front lower cover and discon-
nect the turn signal/position light 3P connectors
then remove the front lower cover.
Installation is in the reverse order of removal.
• Align the mating areas of the front lower cover
and front inner cover properly.
Be careful not to
damage the tab on
the center body
cover.
Route the wires
properly
(page 1-19).
FRONT LOWER
COVER
SPECIAL BOLT
SNAP FIT CLIPS
CONNECTORS
WASHER
BOLT
SCREWS
BOSSES
ACCESSORY
SOCKET WIRE BAND

Honda SH300 2009 Specifications

General

Displacement	279.1 cc
Bore x Stroke	72 mm x 68.5 mm
Compression Ratio	10.5:1
Fuel System	PGM-FI electronic fuel injection
Front Tire	110/70-16
Rear Tire	130/70-16
Width	730 mm
Height	1, 195 mm
Wheelbase	1, 420 mm
Engine Type	Liquid-cooled, 4-stroke, single-cylinder
Max Torque	26.5 Nm @ 6, 000 rpm
Transmission	V-Matic
Front Suspension	Telescopic fork, 35 mm
Rear Suspension	Twin shock absorbers
Front Brake	256mm hydraulic disc
Rear Brake	240 mm disc
