FUEL SYSTEM (PGM-FI)
6-8

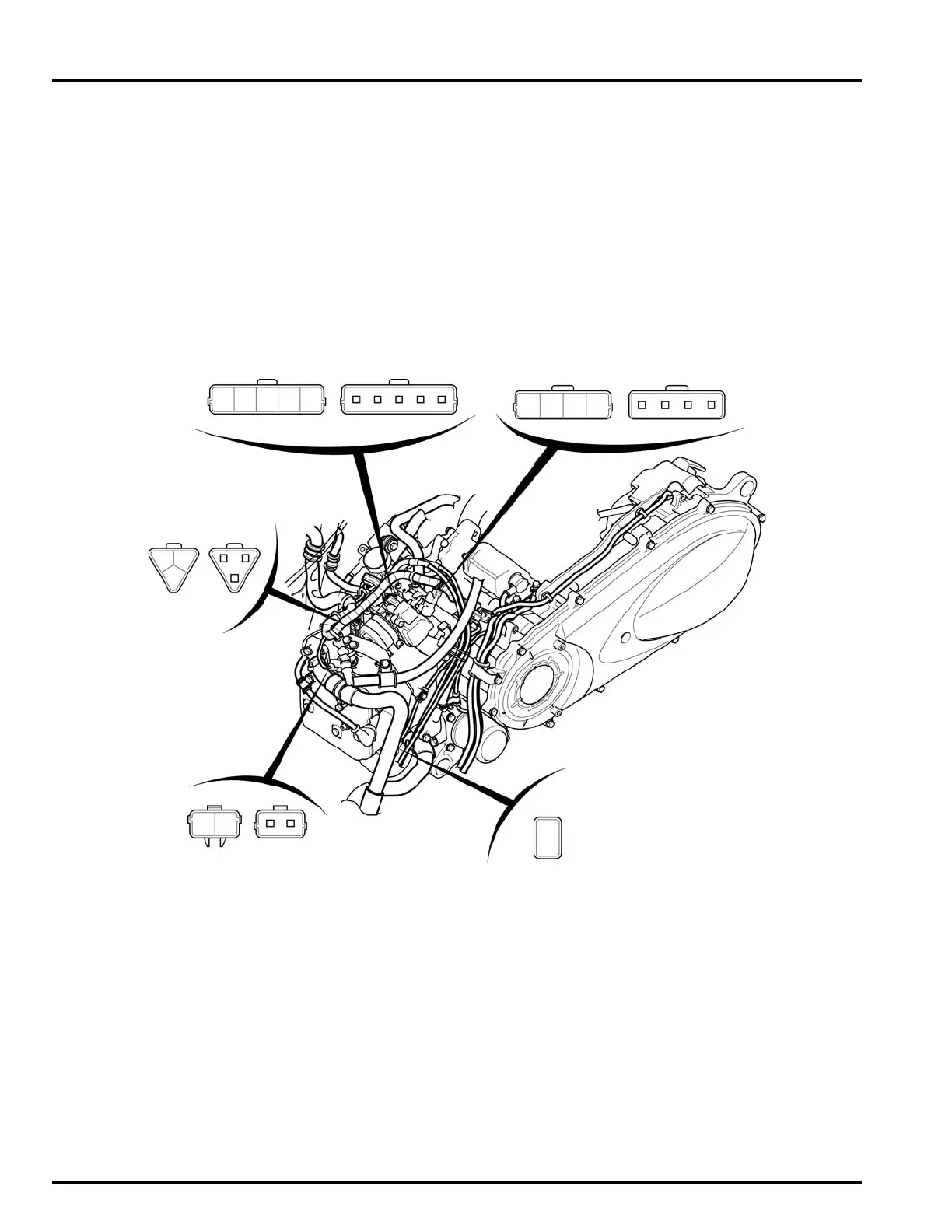

PGM-FI CONNECTOR LOCATIONS
NOTE 1: Remove the luggage box (page 3-5).
ECT SENSOR 3P (Gray)
CONNECTOR
(NOTE 1)
IACV 4P CONNECTOR
(NOTE 1)
O2 SENSOR 2P (Natural) CONNECTOR
(NOTE 1)
INJECTOR 2P CONNECTOR
(NOTE 1)
SENSOR UNIT 5P (Black) CONNECTOR
(NOTE 1)
Wire side of
female terminal
Sensor side of
male terminal
Wire side of
female terminal
Sensor side of
male terminal
Wire side of
male terminal
Wire side of
female
terminal
Sensor side
of male
terminal
Wire side of
female terminal
Sensor side of
male terminal
