FUEL SYSTEM (PGM-FI)
6-52

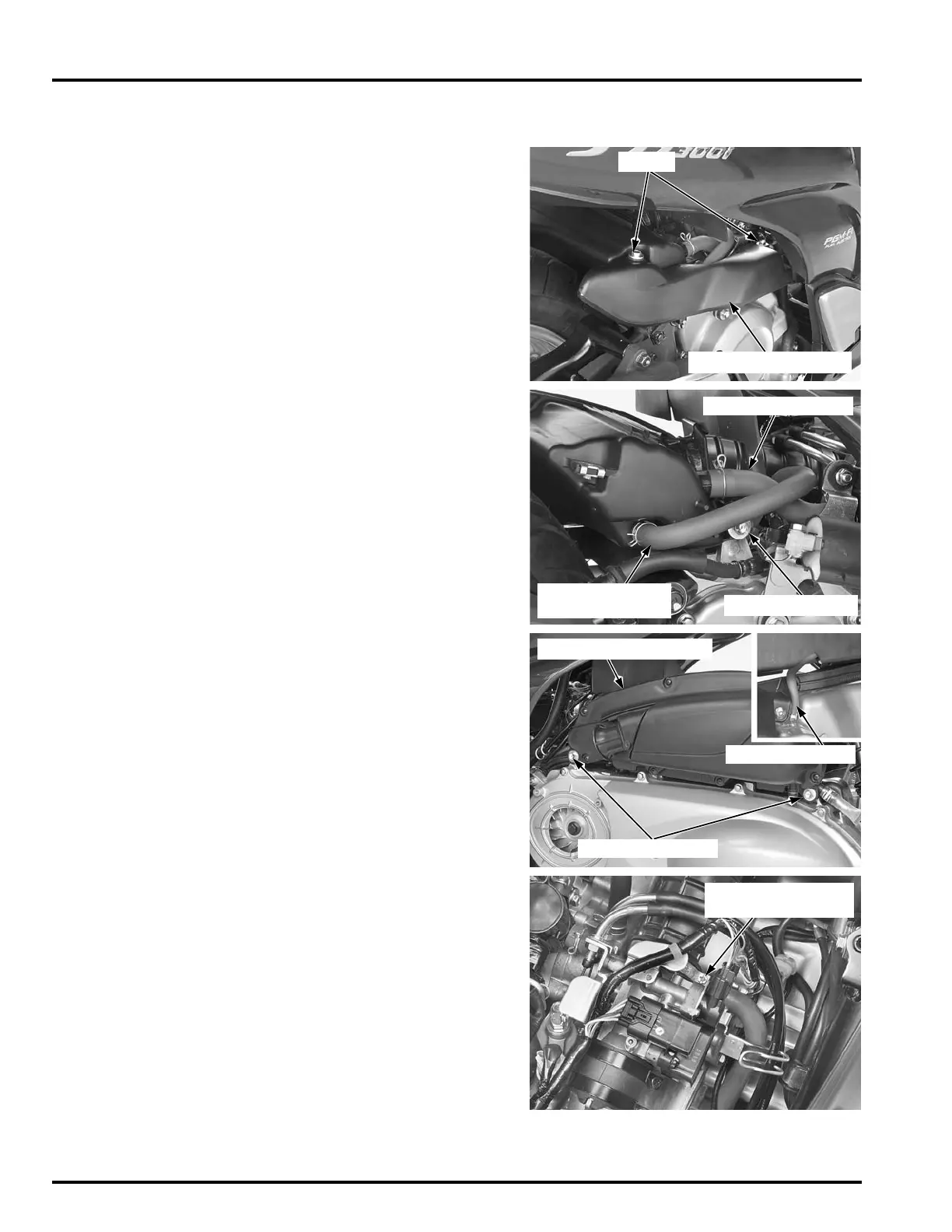

AIR CLEANER HOUSING
REMOVAL/INSTALLATION
Remove the luggage box (page 3-5).
Remove the washer bolts and ignition coil cover.
Disconnect the following hoses from the air cleaner
housing:
– Crankcase breather hose
– PAIR air suction hose
Remove the mounting washer bolt from the air
cleaner housing.
Disconnect the final reduction case breather hose
from the air cleaner housing.
Remove the two mounting washer bolts from the air
cleaner housing.
Loosen the connecting hose band screw and dis-
connect the connecting hose from the throttle body.
Remove the air cleaner housing.
BOLTS
IGNITION COIL COVER
AIR SUCTION HOSE
CRANKCASE
BREATHER HOSE
MOUNTING BOLT
AIR CLEANER HOUSING
BREATHER HOSE
MOUNTING BOLTS
CONNECTING HOSE
BAND SCREW
