FUEL SYSTEM (PGM-FI)
6-50

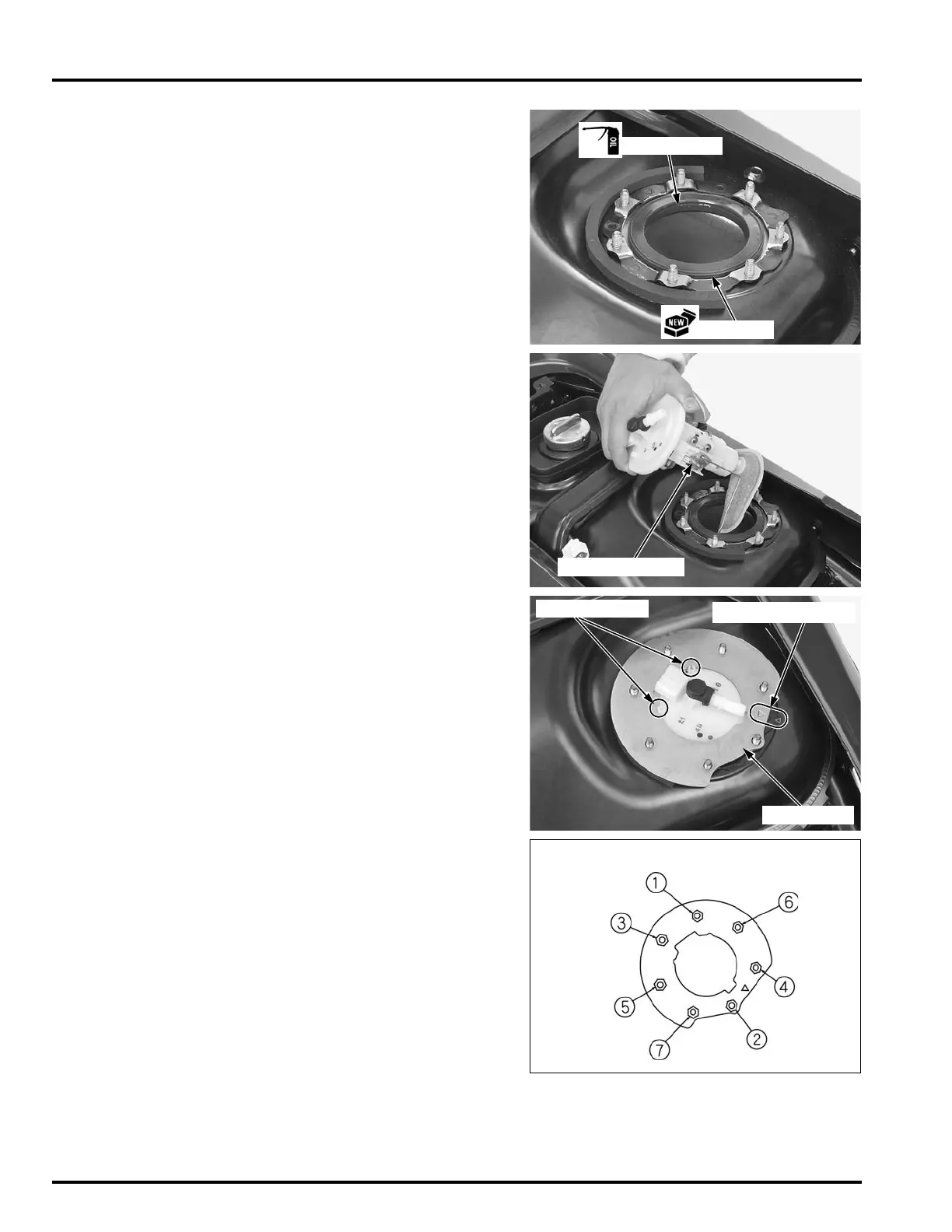

INSTALLATION
Always replace
packing with a new
one.
Place a new packing onto the fuel tank and apply
less than 1.0 g of engine oil to lip surface of the
packing.
Install the fuel pump unit to the fuel tank.
• Be careful not to damage the fuel level sensor
when installing the fuel pump unit.
• Be careful not to allow the dirt and debris
between the fuel pump and packing.
Install the set plate by aligning the allow marks and
its holes with the tabs on the fuel pump unit.
• Be careful not to damage the pipe end when
installing the set plate.
Install and tighten the fuel pump mounting nuts in
the sequence shown.
PACKING
LIP SURFACE
FUEL PUMP UNIT
SET PLATE
Align (tab/hole)
Align (allow marks)
TORQUE: 12 N·m (1.2 kgf·m, 9 lbf·ft)

Honda SH300 2009 Specifications

General

Displacement	279.1 cc
Bore x Stroke	72 mm x 68.5 mm
Compression Ratio	10.5:1
Fuel System	PGM-FI electronic fuel injection
Front Tire	110/70-16
Rear Tire	130/70-16
Width	730 mm
Height	1, 195 mm
Wheelbase	1, 420 mm
Engine Type	Liquid-cooled, 4-stroke, single-cylinder
Max Torque	26.5 Nm @ 6, 000 rpm
Transmission	V-Matic
Front Suspension	Telescopic fork, 35 mm
Rear Suspension	Twin shock absorbers
Front Brake	256mm hydraulic disc
Rear Brake	240 mm disc
