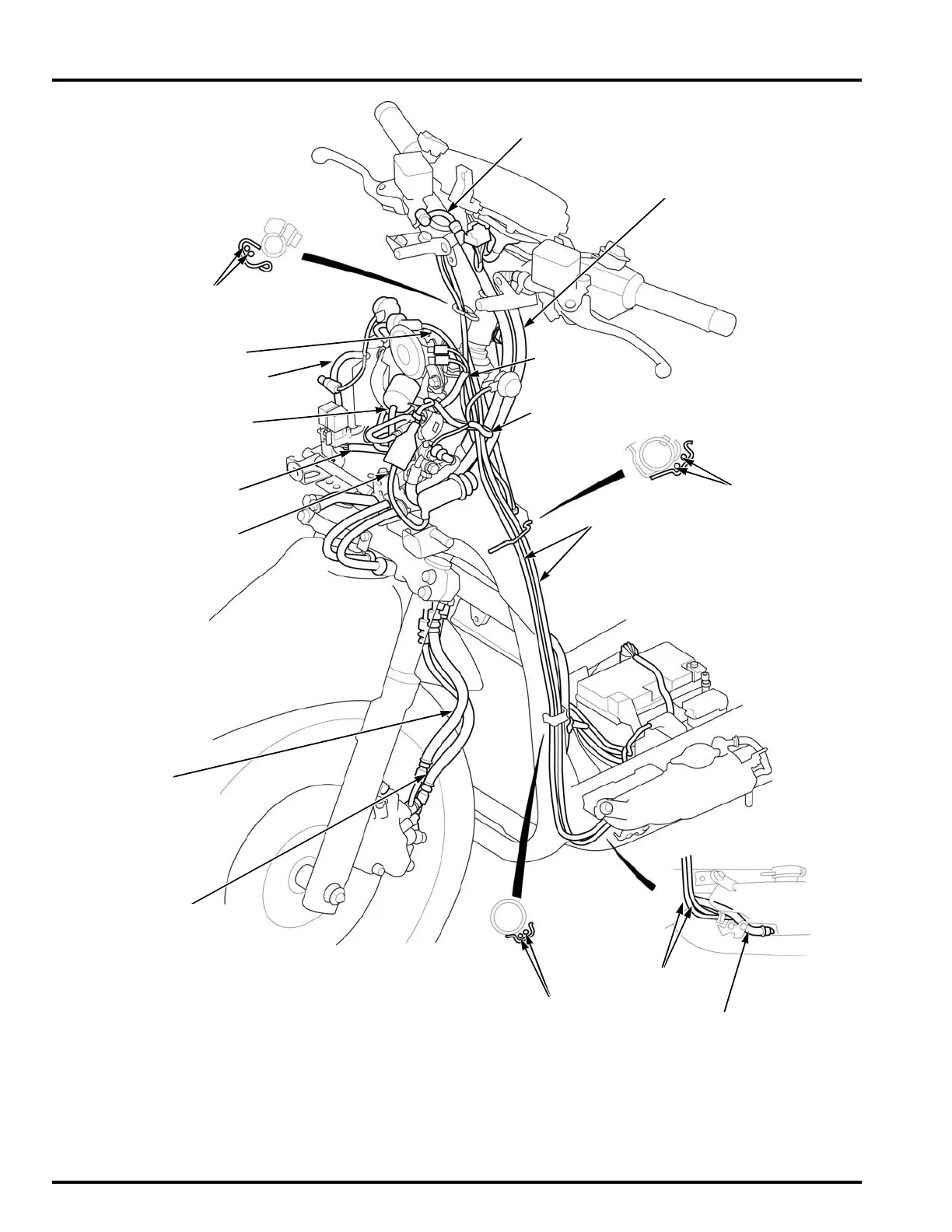

GENERAL INFORMATION
1-20
FRONT BRAKE HOSE
IGNITION SWITCH WIRE
ACCESSORY SOCKET
WIRE
REAR BRAKE HOSE
SEAT LOCK CABLE
RIGHT FRONT TURN SIGNAL/
POSITION LIGHT WIRE
MAIN RELAY/FAN
MOTOR RELAY WIRE
LEFT FRONT TURN
SIGNAL/POSITION
LIGHT WIRE
HORN WIRE
RADIATOR SIPHON HOSE
THROTTLE CABLES
THROTTLE CABLES
THROTTLE CABLES
THROTTLE CABLES
FRONT BRAKE HOSE
REAR (COMBINED)
BRAKE HOSE
THROTTLE CABLES
