FRONT WHEEL/SUSPENSION/STEERING
15-10

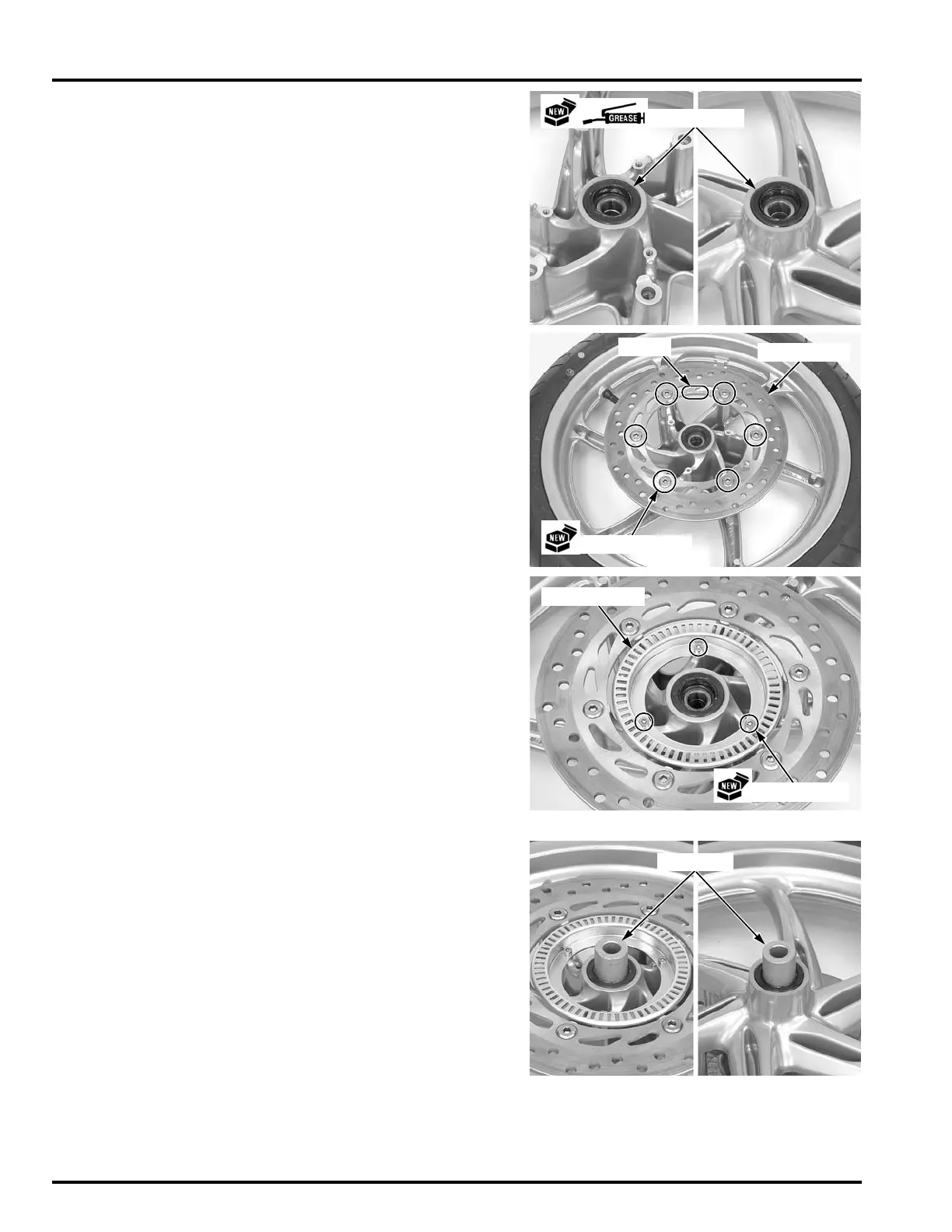

Apply grease to a new dust seal lips and install the
dust seals until it is flush with the hub.
Do not get grease
on the brake disc or
stopping power will
be reduced.
Install the brake disc on the wheel hub with the
marked side facing out.
Install new socket bolts and tighten them in a criss-
cross pattern in several steps.
ABS type only. Install the front pulser ring on the left wheel hub.
Install and tighten new torx bolts to the specified
torque.
INSTALLATION
Install the right and left side collars.
DUST SEALS
TORQUE: 42 N·m (4.3 kgf·m, 31 lbf·ft)
BRAKE DISC
SOCKET BOLTS
MARK
TORQUE: 8 N·m (0.8 kgf·m, 5.9 lbf·ft)
PULSER RING
TORX BOLTS
COLLARS

Honda SH300 2009 Specifications

General

Displacement	279.1 cc
Bore x Stroke	72 mm x 68.5 mm
Compression Ratio	10.5:1
Fuel System	PGM-FI electronic fuel injection
Front Tire	110/70-16
Rear Tire	130/70-16
Width	730 mm
Height	1, 195 mm
Wheelbase	1, 420 mm
Engine Type	Liquid-cooled, 4-stroke, single-cylinder
Max Torque	26.5 Nm @ 6, 000 rpm
Transmission	V-Matic
Front Suspension	Telescopic fork, 35 mm
Rear Suspension	Twin shock absorbers
Front Brake	256mm hydraulic disc
Rear Brake	240 mm disc
