REAR WHEEL/SUSPENSION
16-5

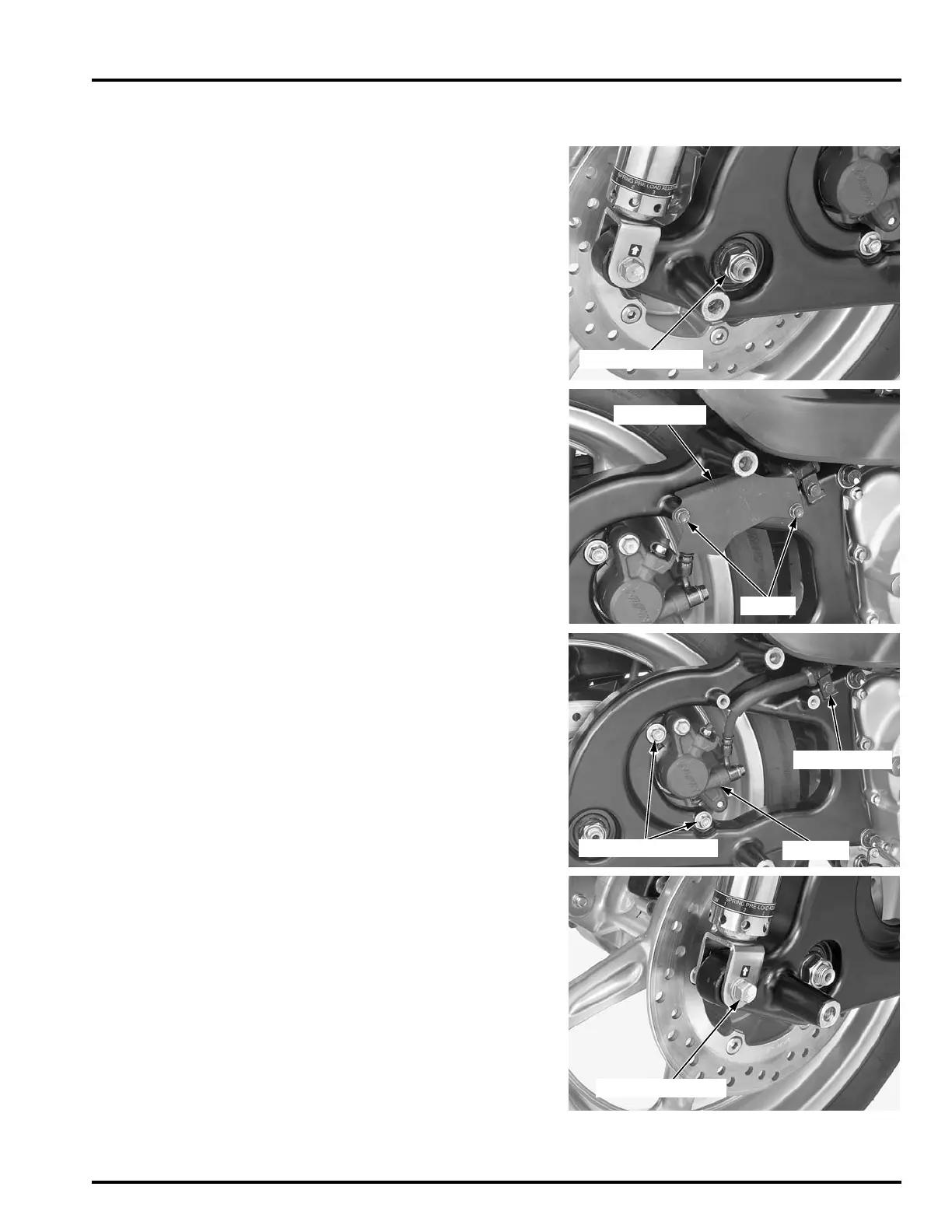

REAR WHEEL/SWINGARM
REMOVAL
Remove the exhaust pipe/muffler (page 3-15).
Support the scooter securely on its centerstand.
Lower the rear wheel and ground it, then loosen the
rear axle nut.
Support the left crankcase and remove the follow-
ing:
– two bolts
– brake hose protector
– bolt and brake hose clamp
– two caliper mounting bolts
– rear brake caliper
– right side shock absorber lower mounting bolt
(and secure the shock absorber with a piece of
rope)
REAR AXLE NUT
Support the brake
caliper so that it
does not hang from
the brake hose.
Do not twist the
brake hose.
Do not operate the
brake lever after
removing the brake
caliper.
PROTECTOR
BOLTS
BOLT/CLAMP
CALIPER
MOUNTING BOLTS
MOUNTING BOLT

Honda SH300 2009 Specifications

General

Displacement	279.1 cc
Bore x Stroke	72 mm x 68.5 mm
Compression Ratio	10.5:1
Fuel System	PGM-FI electronic fuel injection
Front Tire	110/70-16
Rear Tire	130/70-16
Width	730 mm
Height	1, 195 mm
Wheelbase	1, 420 mm
Engine Type	Liquid-cooled, 4-stroke, single-cylinder
Max Torque	26.5 Nm @ 6, 000 rpm
Transmission	V-Matic
Front Suspension	Telescopic fork, 35 mm
Rear Suspension	Twin shock absorbers
Front Brake	256mm hydraulic disc
Rear Brake	240 mm disc
