Honda SH300 2009 User Manual

REAR WHEEL/SUSPENSION
16-12
REAR SHOCK ABSORBER
REMOVAL/INSTALLATION
Remove the following:
– maintenance rid (page 3-4)
– luggage box (page 3-5)
– grab rail (page 3-5)
– body cover (page 3-6)
– rear fender A (page 3-7)
Support the engine with a jack or adjustable support
to relieve stress from the shock absorber.
Remove the upper/lower mounting bolts and shock
absorber.
Installation is in the reverse order of removal.
INSPECTION
Check the upper joint bushing for wear or damage.
Check the dumper rod for bent or damage.
Check the dumper unit for leakage or other damage.
Check the engine or swingarm bushings for wear or
damage.

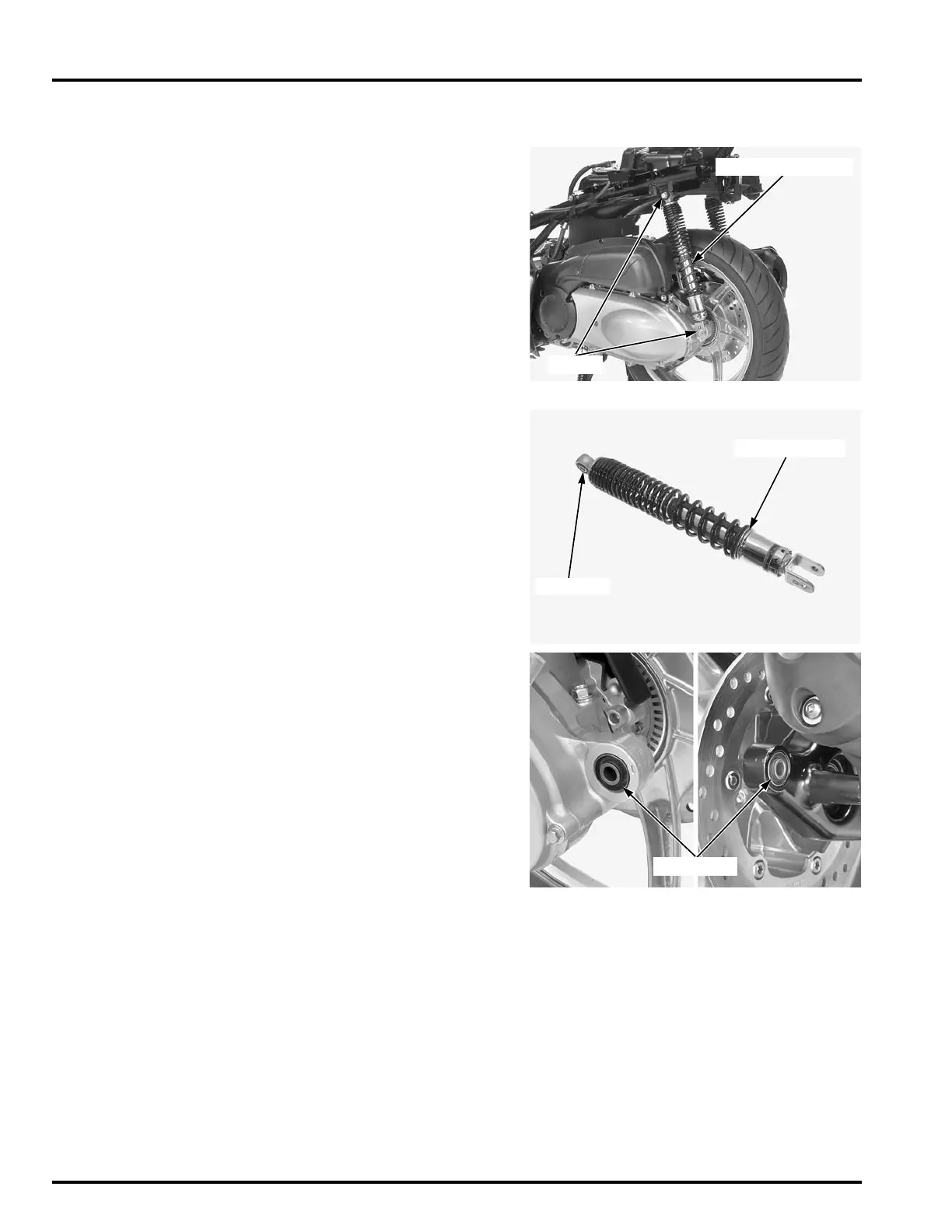

SHOCK ABSORBER
BOLTS
BUSHING
DAMPER UNIT
BUSHINGS

Honda SH300 2009 Specifications

General

Displacement	279.1 cc
Bore x Stroke	72 mm x 68.5 mm
Compression Ratio	10.5:1
Fuel System	PGM-FI electronic fuel injection
Front Tire	110/70-16
Rear Tire	130/70-16
Width	730 mm
Height	1, 195 mm
Wheelbase	1, 420 mm
Engine Type	Liquid-cooled, 4-stroke, single-cylinder
Max Torque	26.5 Nm @ 6, 000 rpm
Transmission	V-Matic
Front Suspension	Telescopic fork, 35 mm
Rear Suspension	Twin shock absorbers
Front Brake	256mm hydraulic disc
Rear Brake	240 mm disc
