Honda SH300 2009 User Manual

ANTI-LOCK BRAKE SYSTEM (ABS; SH300A/AII/AIII)
18-24

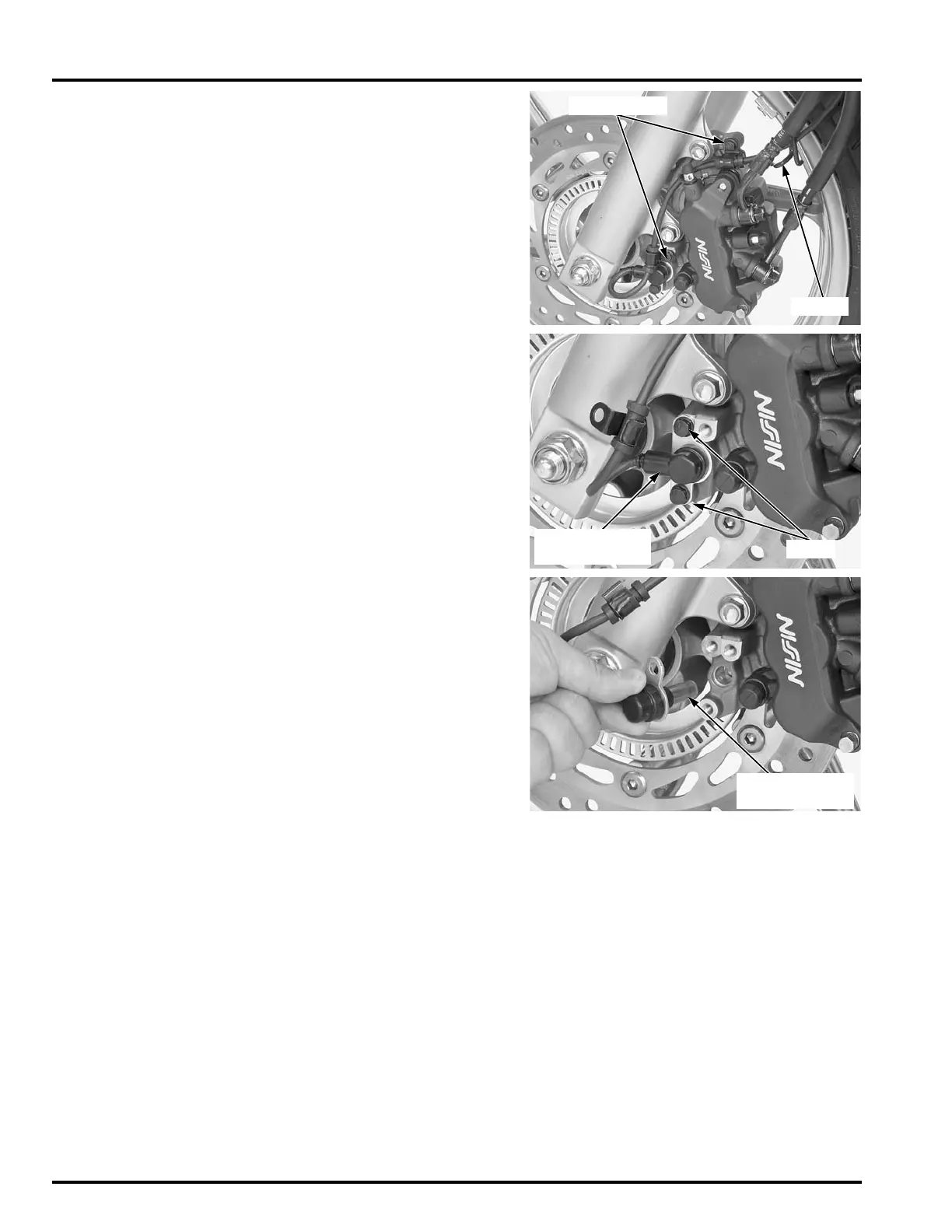

Remove the wire clamp bolts and wire guide.
Remove the two bolts and front wheel speed sen-
sor.
Check that there is iron or other magnetic deposits
between the pulser ring and wheel speed sensor.
Remove any deposits.
Check the sensor tip for deformation or damage
(e.g., chipped pulser ring teeth).
Replace the speed sensor if necessary.
Installation is in the reverse order of removal.
After installing the speed sensor, Measure the clear-
ance (air gap) between the sensor and pulser ring
(page 18-23).
CLAMP BOLT
GUIDE
BOLTS
FRONT WHEEL
SPEED SENSOR
Route the sensor
wire properly (page
1-19).
FRONT WHEEL
SPEED SENSOR

Honda SH300 2009 Specifications

General

Displacement	279.1 cc
Bore x Stroke	72 mm x 68.5 mm
Compression Ratio	10.5:1
Fuel System	PGM-FI electronic fuel injection
Front Tire	110/70-16
Rear Tire	130/70-16
Width	730 mm
Height	1, 195 mm
Wheelbase	1, 420 mm
Engine Type	Liquid-cooled, 4-stroke, single-cylinder
Max Torque	26.5 Nm @ 6, 000 rpm
Transmission	V-Matic
Front Suspension	Telescopic fork, 35 mm
Rear Suspension	Twin shock absorbers
Front Brake	256mm hydraulic disc
Rear Brake	240 mm disc
