Honda SH300 2009 User Manual

BATTERY/CHARGING SYSTEM
19-6
BATTERY
REMOVAL/INSTALLATION
Always turn the
ignition switch OFF
before removing
the battery.

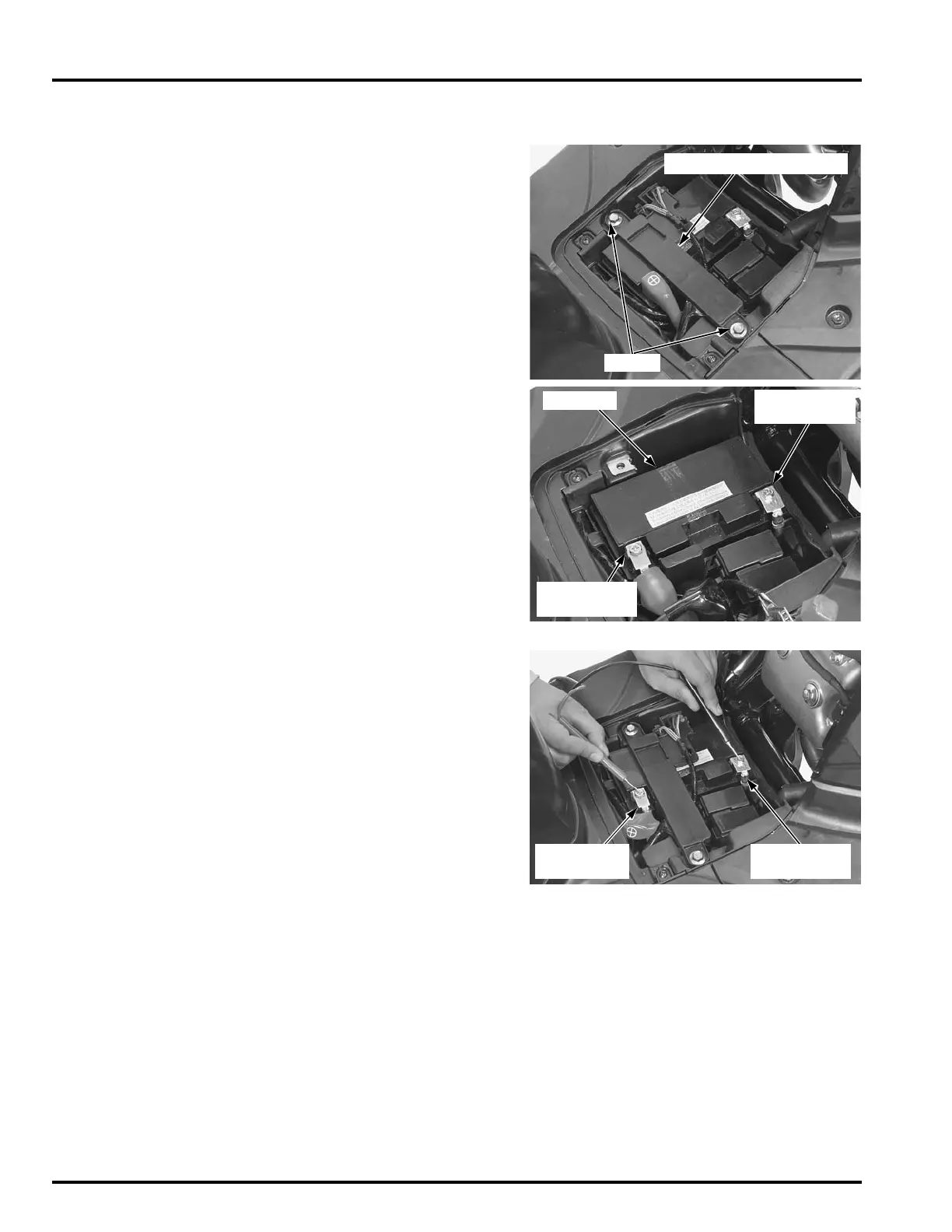

Remove the maintenance lid (page 3-4).
Remove the bolts and battery holder plate.
Disconnect the
negative terminal
first, then the posi-
tive terminal.
Remove the bolt and disconnect the negative (–)
cable.
Remove the bolt and disconnect the positive (+)
cable.
Remove the battery.
Install the battery in the reverse order of removal.
After installing the battery, coat the terminals with
clean grease.
Install the maintenance lid (page 3-4).
VOLTAGE INSPECTION
Remove the maintenance lid (page 3-4).
Measure the battery voltage using a digital
multimeter.
If the battery voltage is below 12.3 V, charge the bat-
tery.
BATTERY HOLDER PLATE
BOLTS
Connect the posi-
tive terminal first,
then the negative
terminal.
POSITIVE (+)
CABLE
NEGATIVE (–)
TERMINAL
BATTERY
VOLTAGE:
Fully charged: Above 12.8 V
Needs charging: Below 12.3 V
NEGATIVE (–)
TERMINAL
POSITIVE (+)
TERMINAL

Honda SH300 2009 Specifications

General

Displacement	279.1 cc
Bore x Stroke	72 mm x 68.5 mm
Compression Ratio	10.5:1
Fuel System	PGM-FI electronic fuel injection
Front Tire	110/70-16
Rear Tire	130/70-16
Width	730 mm
Height	1, 195 mm
Wheelbase	1, 420 mm
Engine Type	Liquid-cooled, 4-stroke, single-cylinder
Max Torque	26.5 Nm @ 6, 000 rpm
Transmission	V-Matic
Front Suspension	Telescopic fork, 35 mm
Rear Suspension	Twin shock absorbers
Front Brake	256mm hydraulic disc
Rear Brake	240 mm disc
