LIGHTS/METERS/SWITCHES
22-21

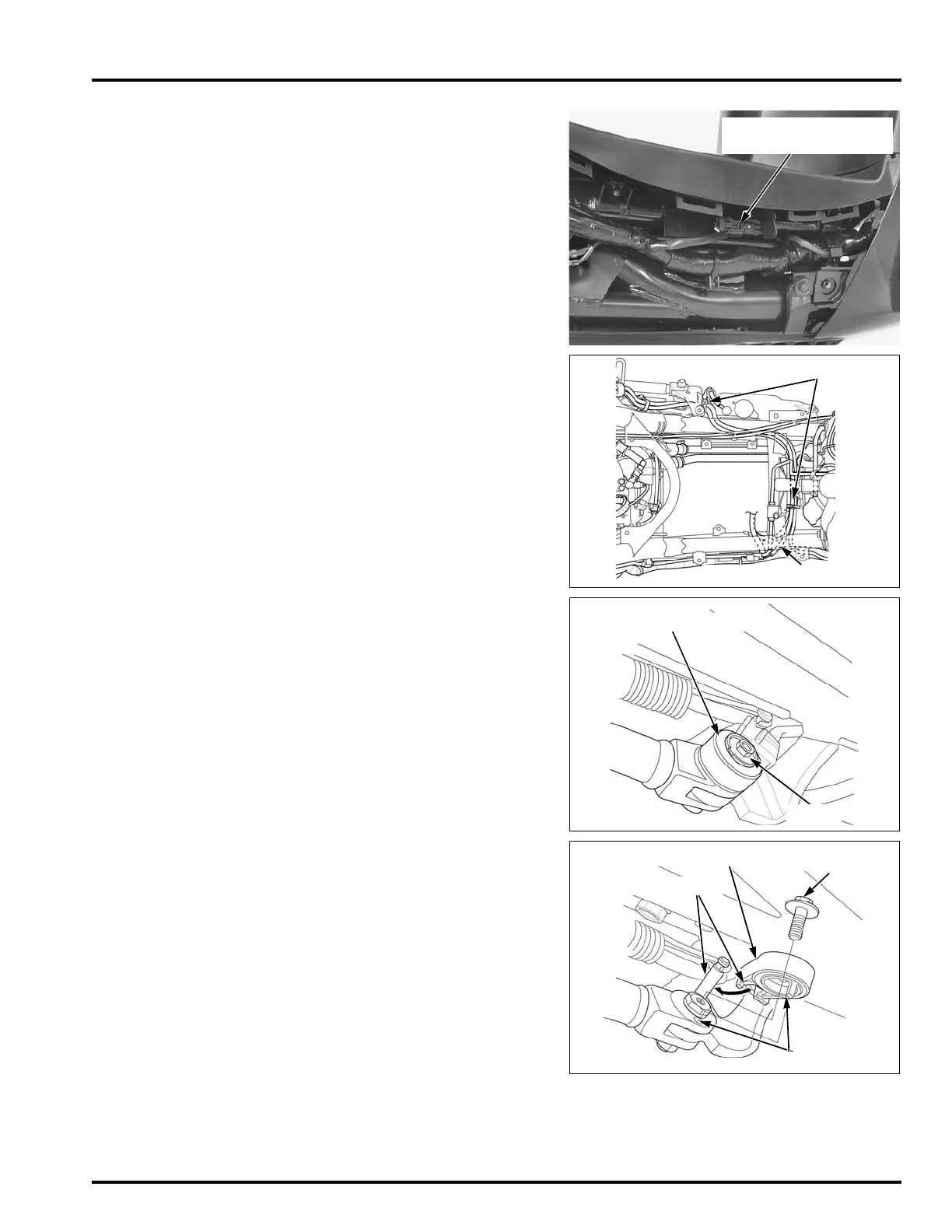

REMOVAL/INSTALLATION
Remove the following:
– Floor side cover (page 3-8)
– Floor panel (page 3-13)
Support the scooter securely using the centerstand.
Disconnect the sidestand switch 2P (Black) connec-
tor.
Release the sidestand switch wire from the wire
bands.
Remove the bolt and sidestand switch.
Install the sidestand switch by aligning its pin with
the sidestand hole and switch groove with the
bracket pin.
Install and tighten the bolt to the specified torque.
Install the removed parts in the reverse order of
removal.
SIDESTAND SWITCH 2P
(BLACK) CONNECTOR
WIRE BAND
SIDESTAND SWITCH WIRE
BOLT
SIDESTAND SWITCH
TORQUE: 10 N·m (1.0 kgf·m, 7 lbf·ft)
Route the side-
stand switch wire
properly (page 1-
19).
SIDESTAND SWITCH
BOLT
Align (Pin/Groove)
Align (Tab/Hole)

Honda SH300 2009 Specifications

General

Displacement	279.1 cc
Bore x Stroke	72 mm x 68.5 mm
Compression Ratio	10.5:1
Fuel System	PGM-FI electronic fuel injection
Front Tire	110/70-16
Rear Tire	130/70-16
Width	730 mm
Height	1, 195 mm
Wheelbase	1, 420 mm
Engine Type	Liquid-cooled, 4-stroke, single-cylinder
Max Torque	26.5 Nm @ 6, 000 rpm
Transmission	V-Matic
Front Suspension	Telescopic fork, 35 mm
Rear Suspension	Twin shock absorbers
Front Brake	256mm hydraulic disc
Rear Brake	240 mm disc
