NFS2-3030 Programming Manual — P/N 52545:K1 03/20/2012 103
Abort Switches Releasing Applications
B.3.4 AHJ Abort Switch
An AHJ (Authority Having Jurisdiction) Abort Switch has a delay timer that restores the
programmed Delay Time.
When an alarm initiates
i
n the programmed releasing zone, the programmed Delay Time starts.
Pressing and holding the abort switch suspends the delay timer. When the abort switch is released,
the control panel restores the value of the programmed Delay Time and the delay timer counts
down. When the Delay Time expires, the control panel activates releasing zone outputs.

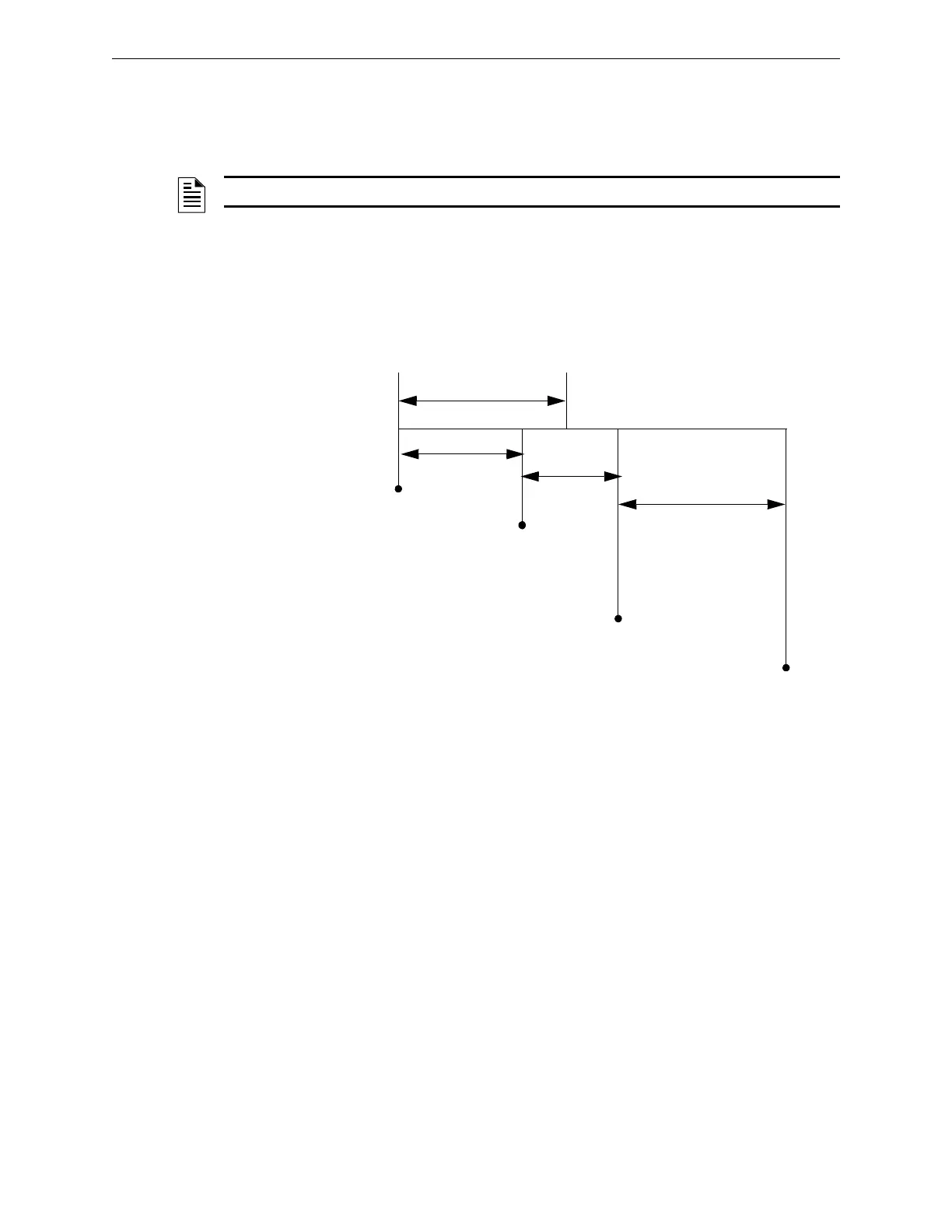

Figure B.7 AHJ Abort Switch
NOTE: An AHJ timer does not comply with UL Standard 864.
Delay Time: 60 seconds
Abort Switch: AHJ
Cross Zone: N
Soak Time: 0
Program selections for this releasing zone
Release the abort switch and the control
panel restores the programmed value
Delay Time (60 sec.) and counts down
Delay=60 sec.
Press and hold
the Abort
Switch (30 sec.)
When the Delay Time
expires, the control
panel activates
releasing zone outputs
30 sec.
45 sec.
60 sec.
Total time from alarm initiation to
release:
45 + 30 + 60 = 135 seconds
Alarm
0 sec.
45 sec
60 sec.
75 sec.
135 sec.
