NFS2-3030 Programming Manual — P/N 52545:K1 03/20/2012 127
Detector Status Display Intelligent Sensing Applications
• Press ACCEPT
Figure D.6 Smoke Detector Screen - Read Status
D.5.2 Print a Detector Maintenance Report
A Detector Maintenance Report lists detector maintenance status for each installed addressable
detector [except FDX (an analog heat detector)].
To print this report, press the Printer Function soft key at the Main Menu, then press
the Detector
Maintenance Report soft key sends a Detector Maintenance Report (Figure D.7) to the printer
connected to the control panel.

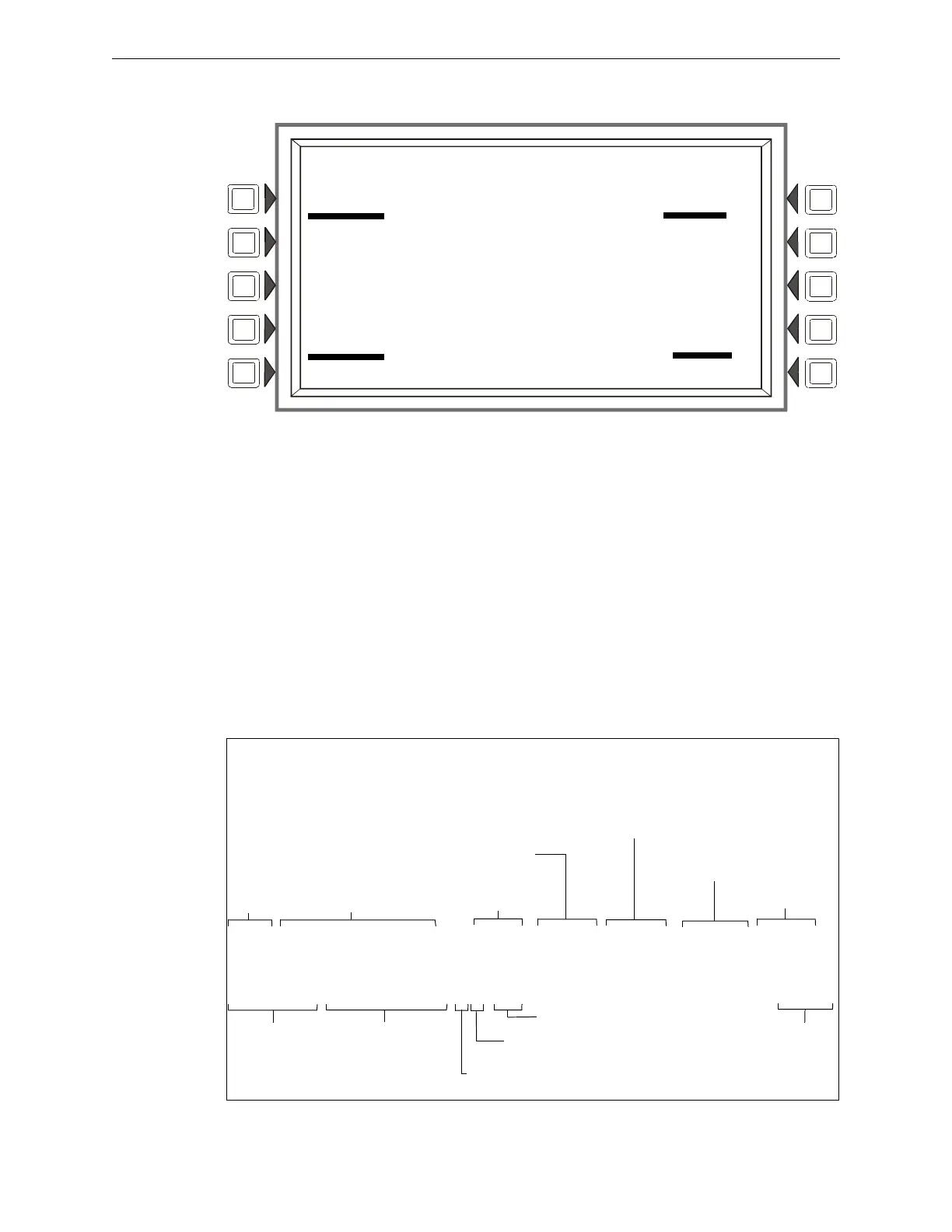

Figure D.7 Sample Detector Maintenance Report
LAKEVIEW GENERAL HOSPITAL
SYSTEM NORMAL
10:22:34A WED DEC 19, 2007
READ ADDRESS: L03D052
AUTOMATIC INACTIVE
ELEVATOR LOBBY EAST WING
FIFTH FLOOR Z003 SMOKE(PHOTO)
Z005, Z027, Z066, , ,
, , , , ,
VALUES: 011% OF ALARM, 045% OF PREALARM
ALARM: 6= 1.66%, PREALARM: 3= 0.47%
ACTION/STATUS: NONE/VERY CLEAN
PEAKS:56% VERIFY COUNT:02 CO-OP:D100,158
10:22:34A WED DEC 19, 2007
BACK
******DETECTOR MAINTENANCE******************************************************
NORMAL SMOKE(LASER) Detector L01D001 000330us 000340us Comp:000% Pk: 002%
Alarm: 000% PreAlarm: 000% A6P6 V000 L01D001
NORMAL SMOKE ACCLIM Detector L01D002 000030us 000000us Comp:000% Pk: 000%
Alarm: 000% PreAlarm: 000% A8P8 V000 L01D002
Field Identification
State
Label
Extended
Label
Current reading of raw analog
value in microseconds
Long term average of
raw analog value in
microseconds
Compensation
percentage
Detector peak
Address
Percent of
alarm
threshold
Percent of
prealarm
threshold
Verification count
Programmed alarm sensitivity setting in
effect when the report was generated.
Programmed prealarm sensitivity setting in
effect when the report was generated
Alarm: 000% PreAlarm: 000% A6P6 V000 L01D001
NORMAL SMOKE(LASER) Detector L01D001 000330us 000340us Comp:000% Pk: 002%
To Next Page
