5.3 Bootloader Screen
This screen is used for LCD-160 and Loop downloads. To display this screen, press the RESET key
during the entire power-up self-testing process, then release the key.

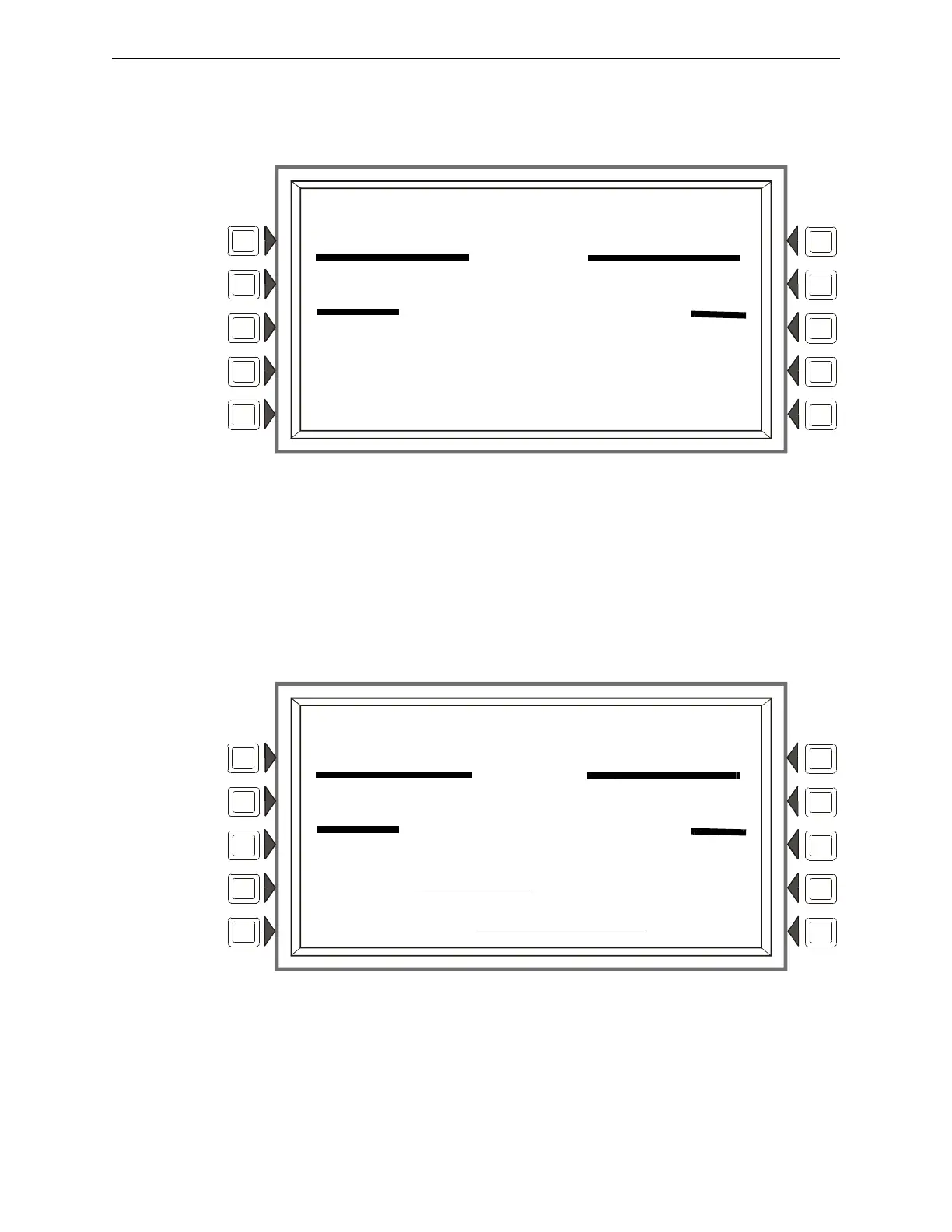

Figure 5.5 Bootloader Menu Screen
LCD-160 DOWNLOAD:Press thi
s
soft key to display the LCD-160 Download menu screen.
REBOOT:Press t
his soft key to reboot the panel, and exit the bootloader screen.
LOOP DOWNLOAD:Press this
soft key to display the Loop Download Menu screen.
5.3.1 LCD-160 Download Menu
The language and banner displayed on LCD-160s can be programmed at this screen.
Figure 5.6 LCD-160 Download Menu Screen
ADDRESS:
Press thi
s soft key to scroll through to the desired LCD-160 address. “All” means all
addresses. Default: ADDRESS 001.
Shortcut: Type 1 on the keyboard, which jumps to address 10, or t
ype 2 for twenty, 3 for thirty,
0 to reset back to 1. Type an asterisk (*) to select all addresses.
TROUBLE
LOADING..NO SERVICE
LAKEVIEW GENERAL HOSPITAL
BOOTLOADER
11:58:45A WED JAN 19, 2011
REBOOT
LCD-160 DOWNLOAD LOOP DOWNLOAD
TROUBLE
LOADING..NO SERVICE
LAKEVIEW GENERAL HOSPITAL
N001
BOOTLOADER
LCD-160 DOWNLOAD MENU
11:58:45A TUE JAN 25, 2011
AUTO
ADDRESS: ADDRESS 001
START
DOWNLOAD TYPE: LANGUAGE-SPANISH BACK
