Programming the Interface
Introduction
This chapter describes how to program your system for the desired interface.

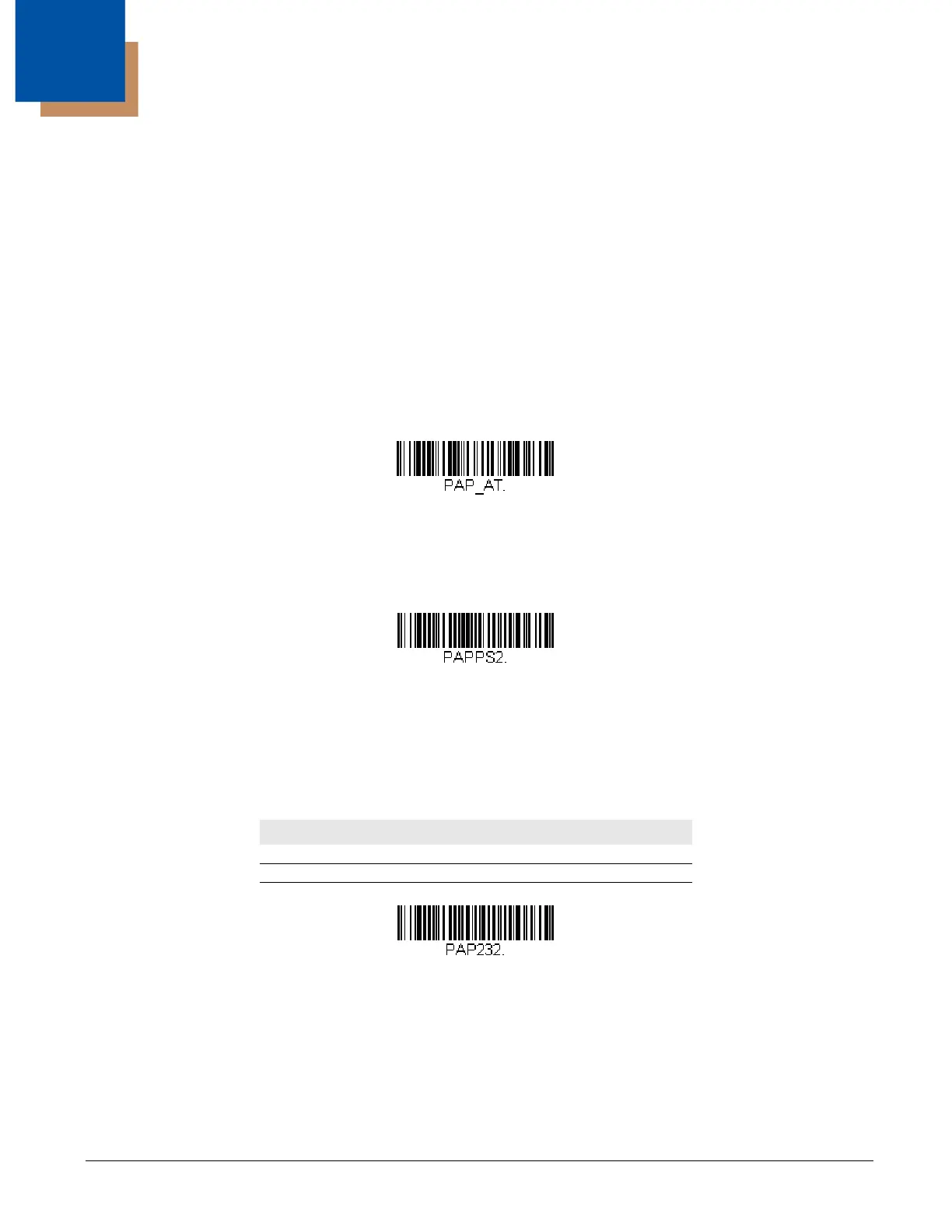

Programming the Interface - Plug and Play
Plug and Play bar codes provide instant scanner set up for commonly used interfaces.
Note: After you scan one of the codes, power cycle the host terminal to have the interface in effect.
Keyboard Wedge
If you want your system programmed for an IBM PC AT and compatibles keyboard wedge interface with a USA keyboard,
scan the bar code below.
Note: The following bar code also programs a carriage return (CR) suffix.
IBM PS2 Keyboard
The following bar code programs your scanner for an IBM PS2 keyboard wedge interface with a USA keyboard.
Note: The following bar code also programs a carriage return (CR) suffix.
RS232 Serial Port
The RS232 Interface bar code is used when connecting to the serial port of a PC or terminal. The following RS232 Inter-
face bar code also programs a carriage return (CR) and a line feed (LF) suffix, baud rate, and data format as indicated
below.
Note: To reset the scanner factory default baud rate of 9,600 bps, see "Resetting the Factory Defaults" on page 10-3.
Option Setting
Baud Rate 115,200 bps
Data Format 8 data bits, no parity bit, 1 stop bit
IBM PC AT and Compatibles with CR Suffix
IBM PS2 with CR Suffix
RS232 Interface

Honeywell VOYAGER 1202G BF Specifications

General

Product Name	Honeywell VOYAGER 1202G BF
Category	Barcode Reader
Scanner Type	Laser
Battery-Free Technology	Yes
Scan Rate	100 scans per second
Decode Capability	1D Barcodes
Interface	USB, Keyboard Wedge, RS232, IBM 46xx (RS485)
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Weight	180g (6.3 oz)
Dimensions	180 mm x 66 mm x 92 mm (7.1 in x 2.6 in x 3.6 in)
Connectivity	Bluetooth
Radio Range	Up to 10 meters
Scan Pattern	Single Line
Humidity	5% to 95% relative humidity, non-condensing
Drop Specification	Withstands 30 drops to concrete from 1.5 m (5 ft)
Power Source	Battery-Free with Supercapacitor
Resolution	1D: 4 mil (0.102 mm), 2D: 6.7 mil (0.169mm)
