5 - 17

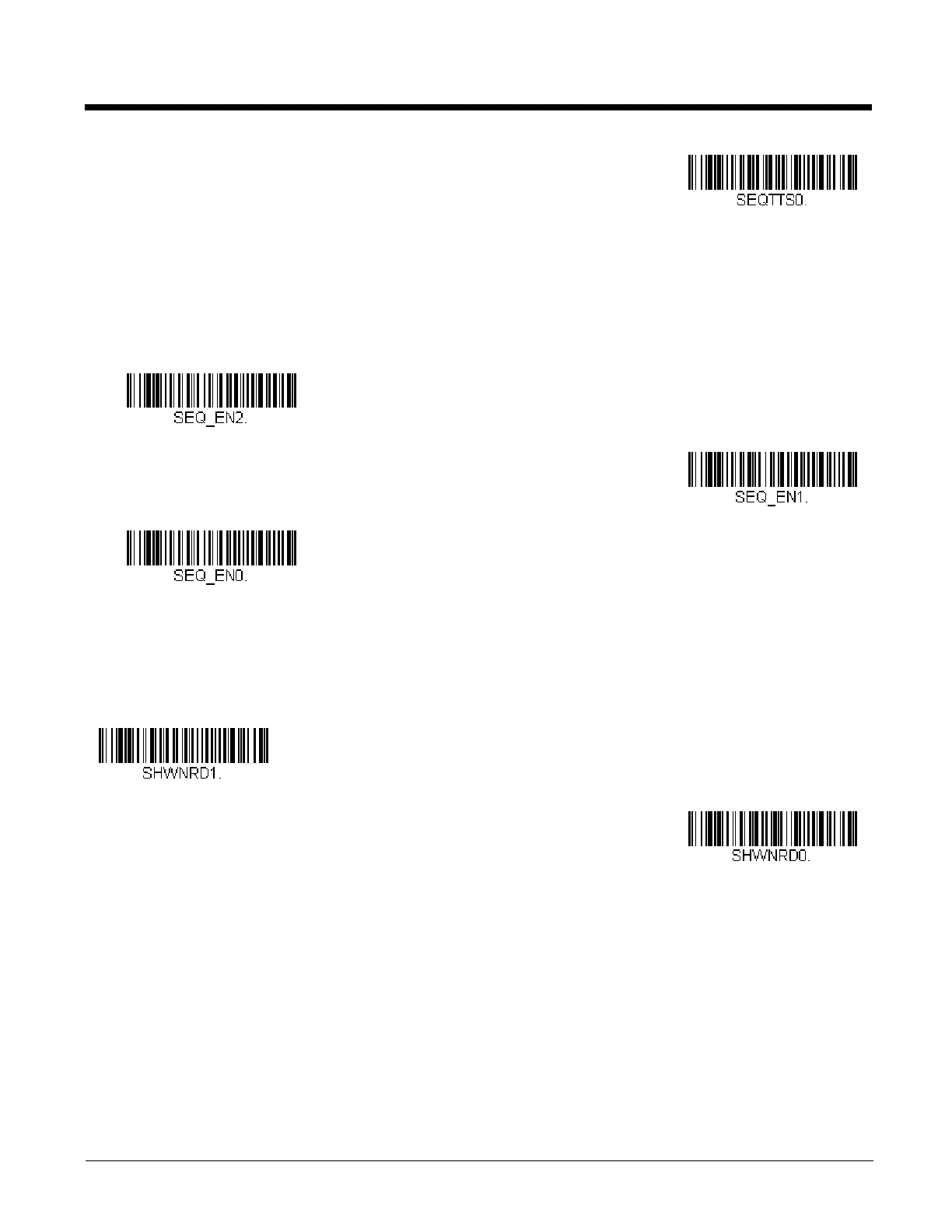

Require Output Sequence
When an output sequence is Required, all output data must conform to an edited sequence or the scanner will not transmit
the output data to the host device. When it’s On/Not Required, the scanner will attempt to get the output data to conform
to an edited sequence but, if it cannot, the scanner transmits all output data to the host device as is.
When the output sequence is Off, the bar code data is output to the host as the scanner decodes it. Default = Off.
No Read
With No Read turned On, the scanner notifies you if a code cannot be read. If using an EZConfig-Scanning Tool Scan Data
Window (see page 10-2), an “NR” appears when a code cannot be read. If No Read is turned Off, the “NR” will not appear.
Default = Off.
If you want a different notation than “NR,” for example, “Error,” or “Bad Code,” you can edit the output message (see Data
Formatting beginning on page 7-1). The hex code for the No Read symbol is 9C.
* Discard Partial Sequence
Required
On/Not Required
*Off
On
* Off

Honeywell VOYAGER 1202G BF Specifications

General

Product Name	Honeywell VOYAGER 1202G BF
Category	Barcode Reader
Scanner Type	Laser
Battery-Free Technology	Yes
Scan Rate	100 scans per second
Decode Capability	1D Barcodes
Interface	USB, Keyboard Wedge, RS232, IBM 46xx (RS485)
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Weight	180g (6.3 oz)
Dimensions	180 mm x 66 mm x 92 mm (7.1 in x 2.6 in x 3.6 in)
Connectivity	Bluetooth
Radio Range	Up to 10 meters
Scan Pattern	Single Line
Humidity	5% to 95% relative humidity, non-condensing
Drop Specification	Withstands 30 drops to concrete from 1.5 m (5 ft)
Power Source	Battery-Free with Supercapacitor
Resolution	1D: 4 mil (0.102 mm), 2D: 6.7 mil (0.169mm)
