Wincor Nixdorf Beetle™ Terminal Default Settings

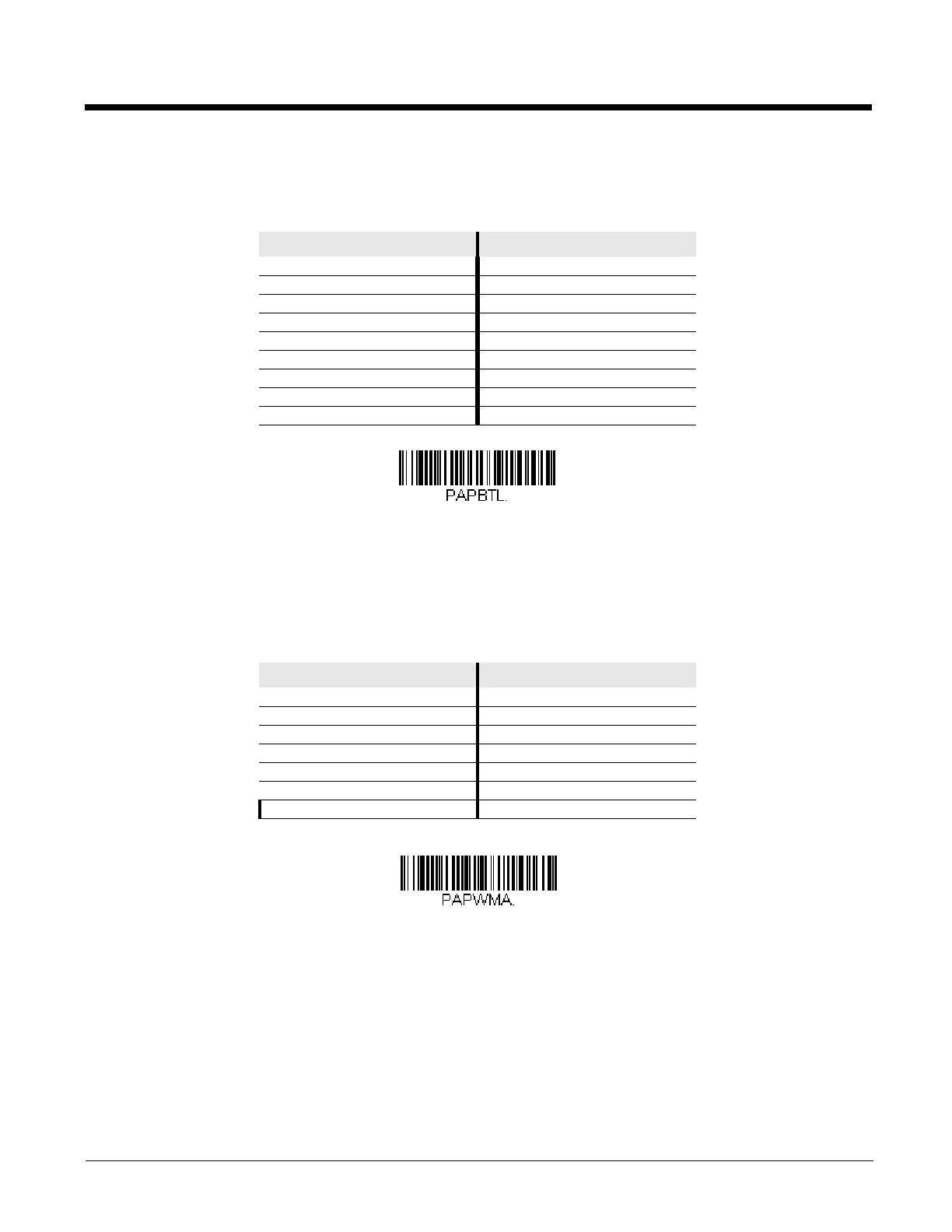

Scan the following Plug and Play code to program the scanner for a Wincor Nixdorf Beetle terminal. The following prefixes are
programmed for each symbology:
Note: If you are having unexpected results with this programming code, scan the Resetting the Custom Defaults bar code on
page 1-7 first, then scan the programming code above.
Wincor Nixdorf RS232 Mode A
Scan the following Plug and Play code to program the scanner for a Wincor Nixdorf RS232 Mode A terminal. The following pre-
fixes are programmed for each symbology:
Keyboard Country Layout
If your interface is USB Keyboard or Keyboard Wedge, your keyboard layout default is a US keyboard. To change this layout,
scan the appropriate country code below to program the keyboard for your country or language.
Symbology Prefix Symbology Prefix
Aztec Code V Interleaved 2 of 5 I
Codabar N MaxiCode T
Code 93 L MicroPDF417 S
Code 128 K PDF417 Q
Data Matrix R QR Code U
EAN-8 B Straight 2 of 5 IATA H
EAN-13 A UPC-A A0
GS1 DataBar E UPC-E C
GS1-128 P All other bar codes M
Symbology Prefix Symbology Prefix
Code 128 K EAN-13 A
Code 93 L GS1-128 K
Codabar N Interleaved 2 of 5 I
UPC-A A0 Plessey O
UPC-E C Straight 2 of 5 IATA H
EAN-8 B GS1 DataBar E
All other bar codes M
Wincor Nixdorf Beetle Settings
Wincor Nixdorf RS232 Mode A
Settings

Honeywell VOYAGER 1202G BF Specifications

General

Product Name	Honeywell VOYAGER 1202G BF
Category	Barcode Reader
Scanner Type	Laser
Battery-Free Technology	Yes
Scan Rate	100 scans per second
Decode Capability	1D Barcodes
Interface	USB, Keyboard Wedge, RS232, IBM 46xx (RS485)
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Weight	180g (6.3 oz)
Dimensions	180 mm x 66 mm x 92 mm (7.1 in x 2.6 in x 3.6 in)
Connectivity	Bluetooth
Radio Range	Up to 10 meters
Scan Pattern	Single Line
Humidity	5% to 95% relative humidity, non-condensing
Drop Specification	Withstands 30 drops to concrete from 1.5 m (5 ft)
Power Source	Battery-Free with Supercapacitor
Resolution	1D: 4 mil (0.102 mm), 2D: 6.7 mil (0.169mm)
