Honeywell VOYAGER 1202G BF User Manual

3 - 15

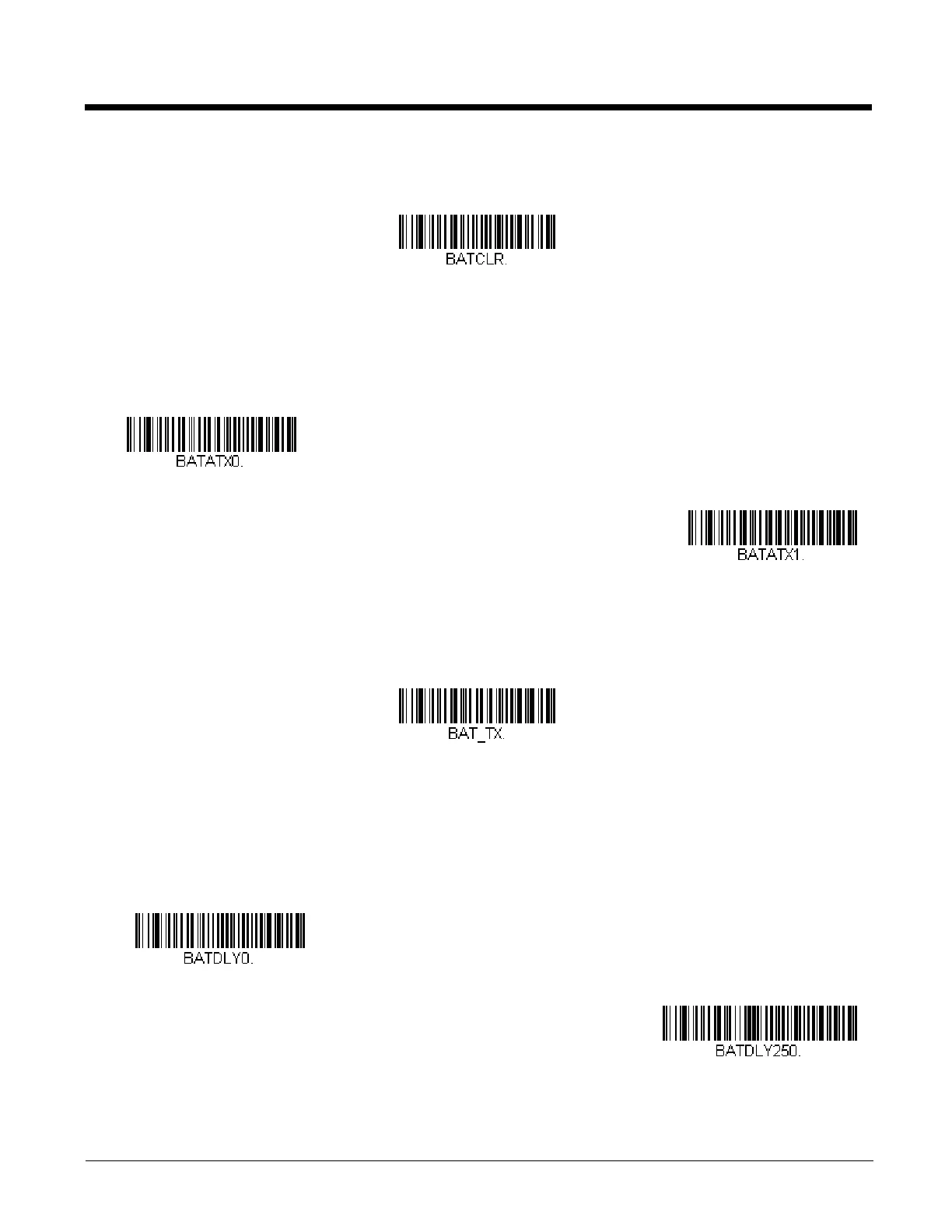

Clear All Codes
If you want to clear the scanner’s buffer of all data accumulated in Batch Mode, scan Clear All Codes.
Transmit Records Automatically
If you are operating in Inventory Batch Mode (see Inventory Batch Mode on page 3-11), you can transmit all stored data to
the host system when the scanner is placed in the base. If you don’t want the records transmitted when the scanner is
placed in the base, scan the Don’t Transmit Records Automatically bar code. Default = Don’t Transmit Records Auto-
matically.
Transmit Records to Host
If you are operating in Inventory Batch Mode (see Inventory Batch Mode on page 3-11), and your scanner is set to Don’t
Transmit Records Automatically, you must scan the following bar code to transmit all stored records to the host system.
Batch Mode Transmit Delay
Sometimes when accumulated scans are sent to the host system, the transmission of those scans is too fast for the appli-
cation to process. To program a transmit delay between accumulated scans, scan one of the following delays. Default =
Off.
Note: In most cases, a short (250 ms (milliseconds)) delay is ideal, however, longer delays may be programmed. Contact
Technical Support (page 14-1) for additional information.
Clear All Codes
* Don’t Transmit Records
Automatically
Transmit Records Automatically
Transmit Inventory Records
* Batch Mode Transmit Delay Off
(No Delay)
Batch Mode Transmit Delay Short
(250 ms)

Honeywell VOYAGER 1202G BF Specifications

General

Product Name	Honeywell VOYAGER 1202G BF
Category	Barcode Reader
Scanner Type	Laser
Battery-Free Technology	Yes
Scan Rate	100 scans per second
Decode Capability	1D Barcodes
Interface	USB, Keyboard Wedge, RS232, IBM 46xx (RS485)
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Weight	180g (6.3 oz)
Dimensions	180 mm x 66 mm x 92 mm (7.1 in x 2.6 in x 3.6 in)
Connectivity	Bluetooth
Radio Range	Up to 10 meters
Scan Pattern	Single Line
Humidity	5% to 95% relative humidity, non-condensing
Drop Specification	Withstands 30 drops to concrete from 1.5 m (5 ft)
Power Source	Battery-Free with Supercapacitor
Resolution	1D: 4 mil (0.102 mm), 2D: 6.7 mil (0.169mm)
