Honeywell VOYAGER 1202G BF User Manual

3 - 16
Scanner Name
You may assign a name to each scanner you are using for identification purposes. The default name is “Voyager.”
Perform the rename operation using either the bar codes on page 3-17, or by sending the serial command :*:BT_NAMname.
where name is the new name for the scanner.

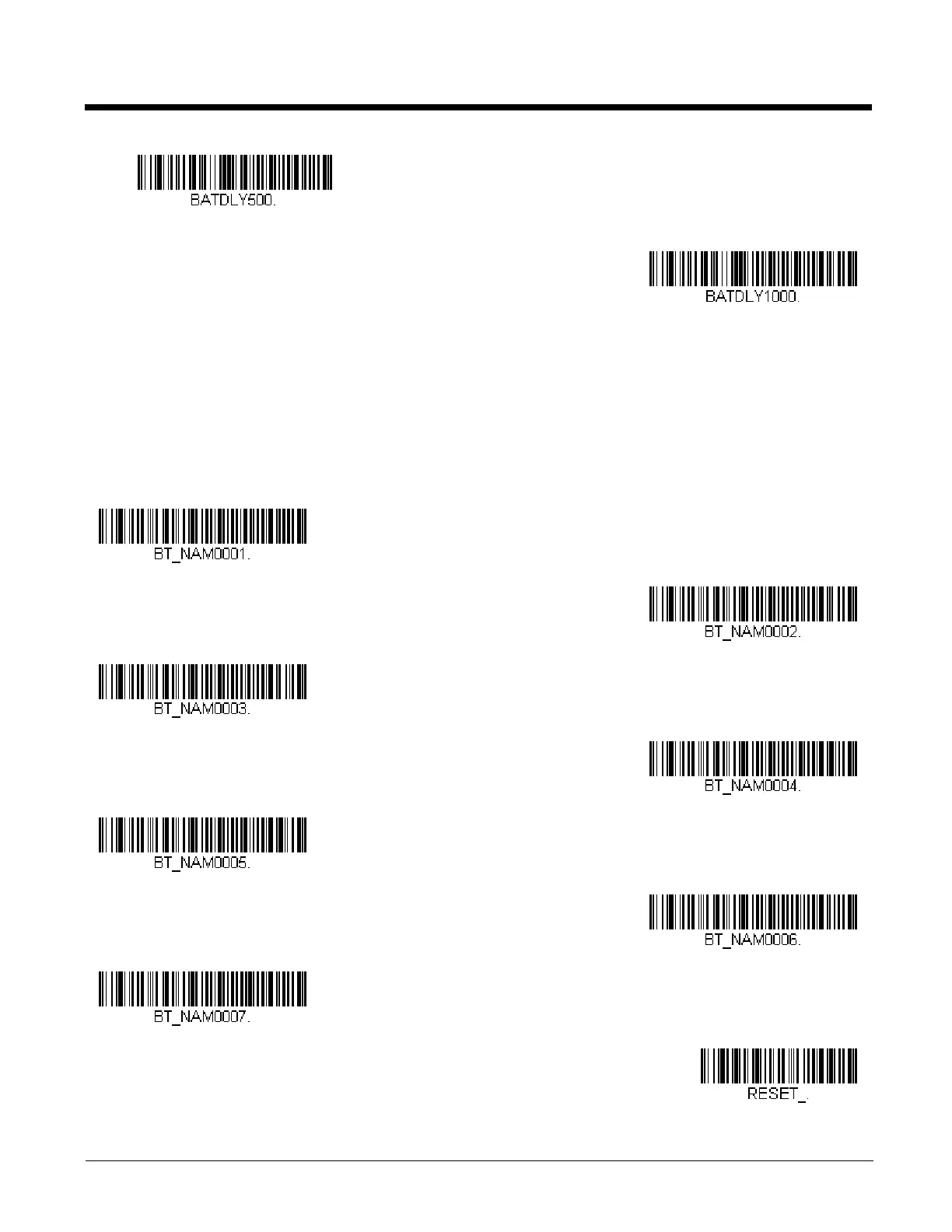

To rename scanners with sequential, numeric names, scan the following bar codes. Scan the Reset code after each name
change and wait for the scanner to relink to the base.
Batch Mode Transmit Delay Medium
(500 ms)
Batch Mode Transmit Delay Long
(1000 ms)
0001
0002
0003
0004
0005
0006
0007
Reset

Honeywell VOYAGER 1202G BF Specifications

General

Product Name	Honeywell VOYAGER 1202G BF
Category	Barcode Reader
Scanner Type	Laser
Battery-Free Technology	Yes
Scan Rate	100 scans per second
Decode Capability	1D Barcodes
Interface	USB, Keyboard Wedge, RS232, IBM 46xx (RS485)
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Weight	180g (6.3 oz)
Dimensions	180 mm x 66 mm x 92 mm (7.1 in x 2.6 in x 3.6 in)
Connectivity	Bluetooth
Radio Range	Up to 10 meters
Scan Pattern	Single Line
Humidity	5% to 95% relative humidity, non-condensing
Drop Specification	Withstands 30 drops to concrete from 1.5 m (5 ft)
Power Source	Battery-Free with Supercapacitor
Resolution	1D: 4 mil (0.102 mm), 2D: 6.7 mil (0.169mm)
