Serial Output
Standard Cable Pinouts
RS485 Output
USB

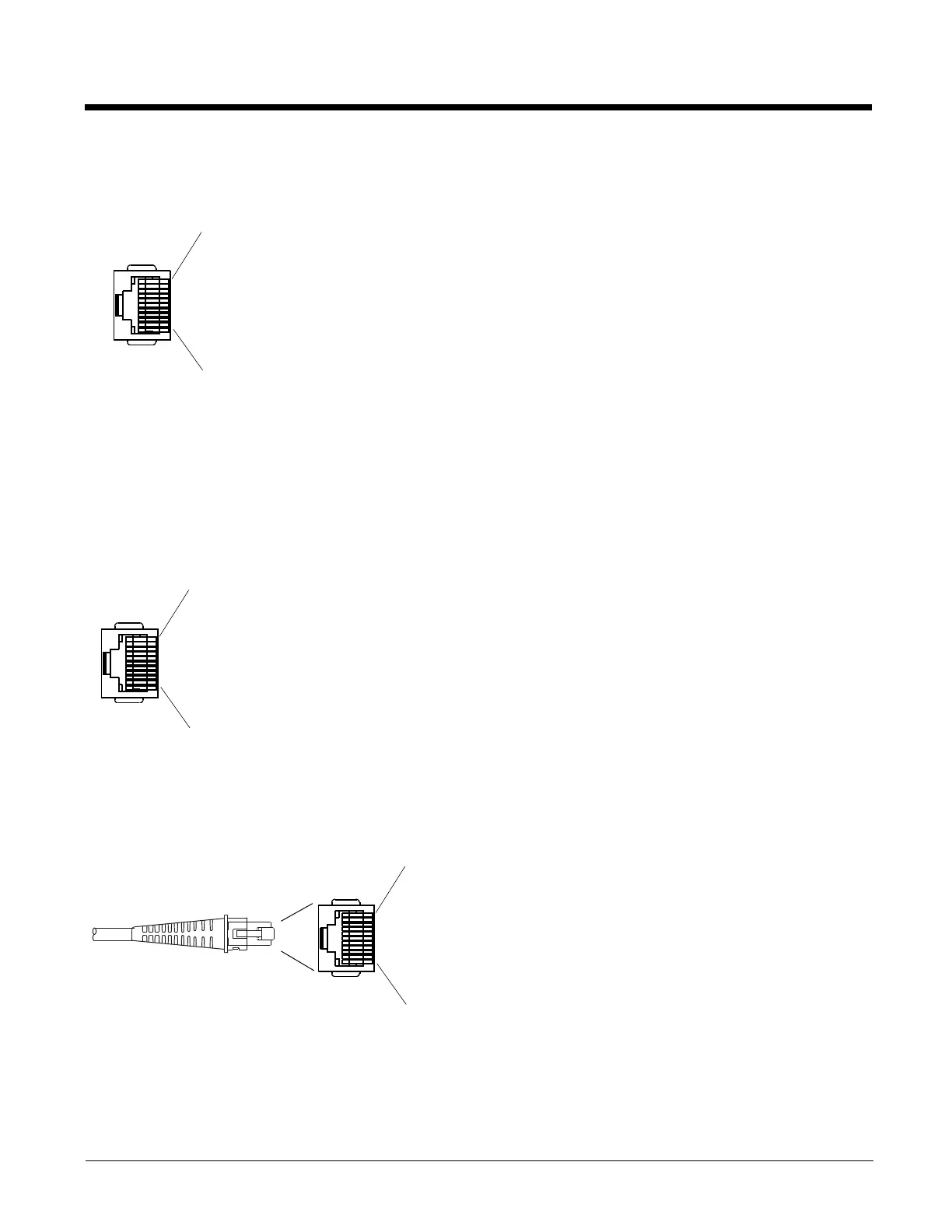

10 Pin RJ41 Modular Plug
connects to the scanner or the base
1 Cable shield
2 Cable select
3 Supply ground
4 Transmit data
5 Receive data - serial data to scanner
6CTS
7 +5V power
8RTS
9
10
Note: Pin assignments are not compatible with Honeywell legacy products.
Use of a cable with improper pin assignments may lead to damage to the unit. Use of any cables not provided by the
manufacturer may result in damage not covered by your warranty.
10 Pin RJ41 Modular Plug
connects to the scanner or the base
1 Cable shield
2 Cable select
3 Supply ground
4 Transmit data
5 Receive data - serial data to scanner
6
7 +5V power
8 Transmit Enable
9
10
Note: RS485 signal conversion is performed in the cable.
Pin assignments are not compatible with Honeywell legacy products.
Use of a cable with improper pin assignments may lead to damage to the unit. Use of any cables not provided by the
manufacturer may result in damage not covered by your warranty.
10 Pin Modular Plug
connects to the scanner or the base
1 Cable shield
2 Cable select
3 Supply ground
4
5
6
7+5V power
8
9 Data +
10 Data -
Note: Pin assignments are not compatible with Honeywell legacy products.
Use of a cable with improper pin assignments may lead to damage to the unit. Use of any cables not provided by the
manufacturer may result in damage not covered by your warranty.
