Honeywell Voyager 1470g User Manual

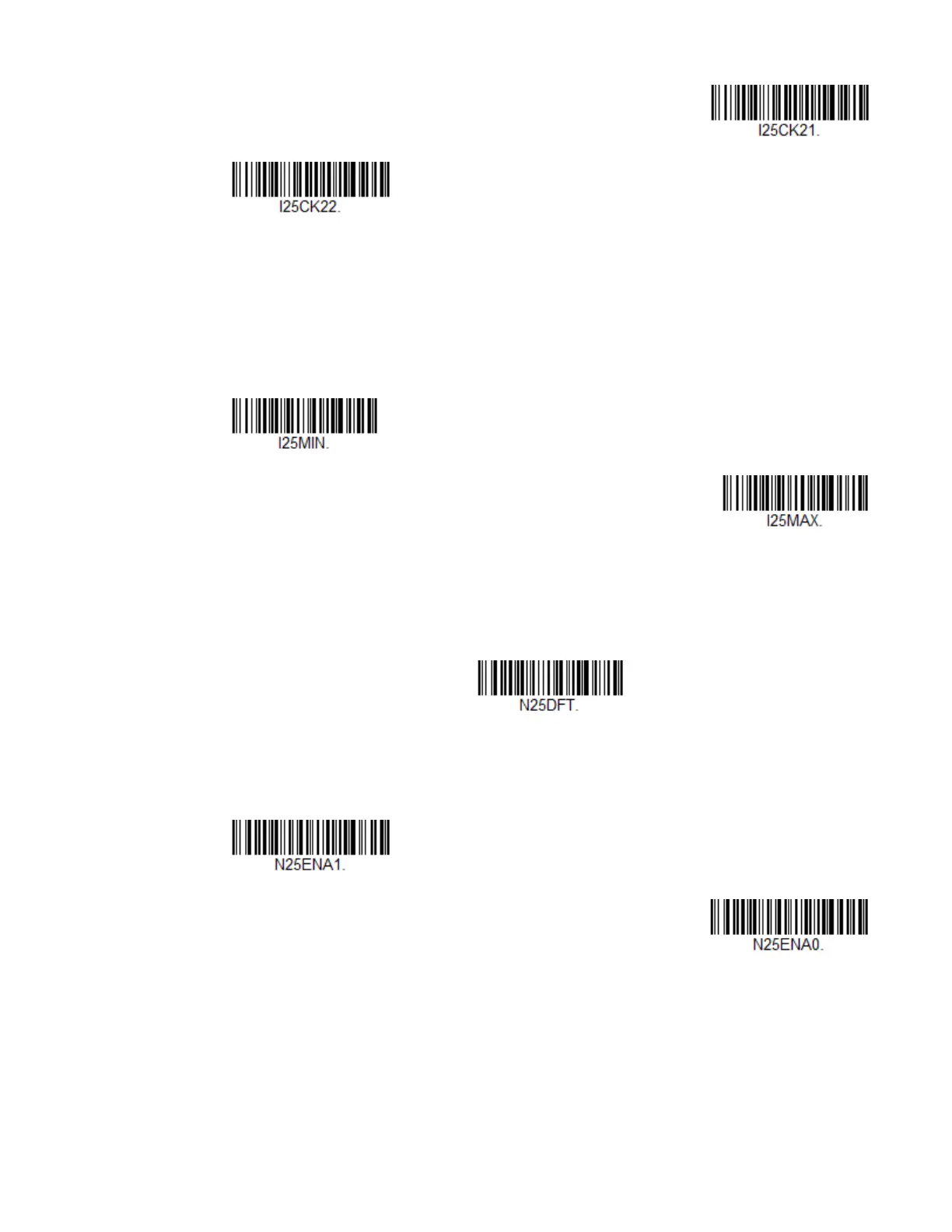

122 Voyager XP User Guide
Interleaved 2 of 5 Message Length
Scan the barcodes below to change the message length. Refer to Message Length
Description (page 114) for additional information. Minimum and Maximum
lengths = 2-80. Minimum Default = 4, Maximum Default = 80.
NEC 2 of 5
< Default All NEC 2 of 5 Settings >
NEC 2 of 5 On/Off
Validate, but Don’t Transmit
Validate and Transmit
Minimum Message Length
Maximum Message Length
* On
Off

Honeywell Voyager 1470g Specifications

General

Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Sealing	IP40
Motion Tolerance	Up to 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
Storage Temperature	-40°C to 60°C (-40°F to 140°F)
Weight	130 g (4.6 oz)
Humidity	0% to 95% relative humidity, non-condensing
Scan Pattern	Omnidirectional
Connectivity	USB, RS-232, Keyboard Wedge
Decode Capability	Reads standard 1D
Drop Specification	Withstands multiple 1.5 m (5 ft) drops to concrete
Light Levels	0 to 100, 000 lux
Dimensions	62 mm x 169 mm x 82 mm (2.5 in x 6.6 in x 3.2 in)
Light Source	LED
