Replace a Corded Scanner Interface Cable
1. Turn the power to the host system OFF.
2. Disconnect the scanner’s cable from the terminal or
computer.

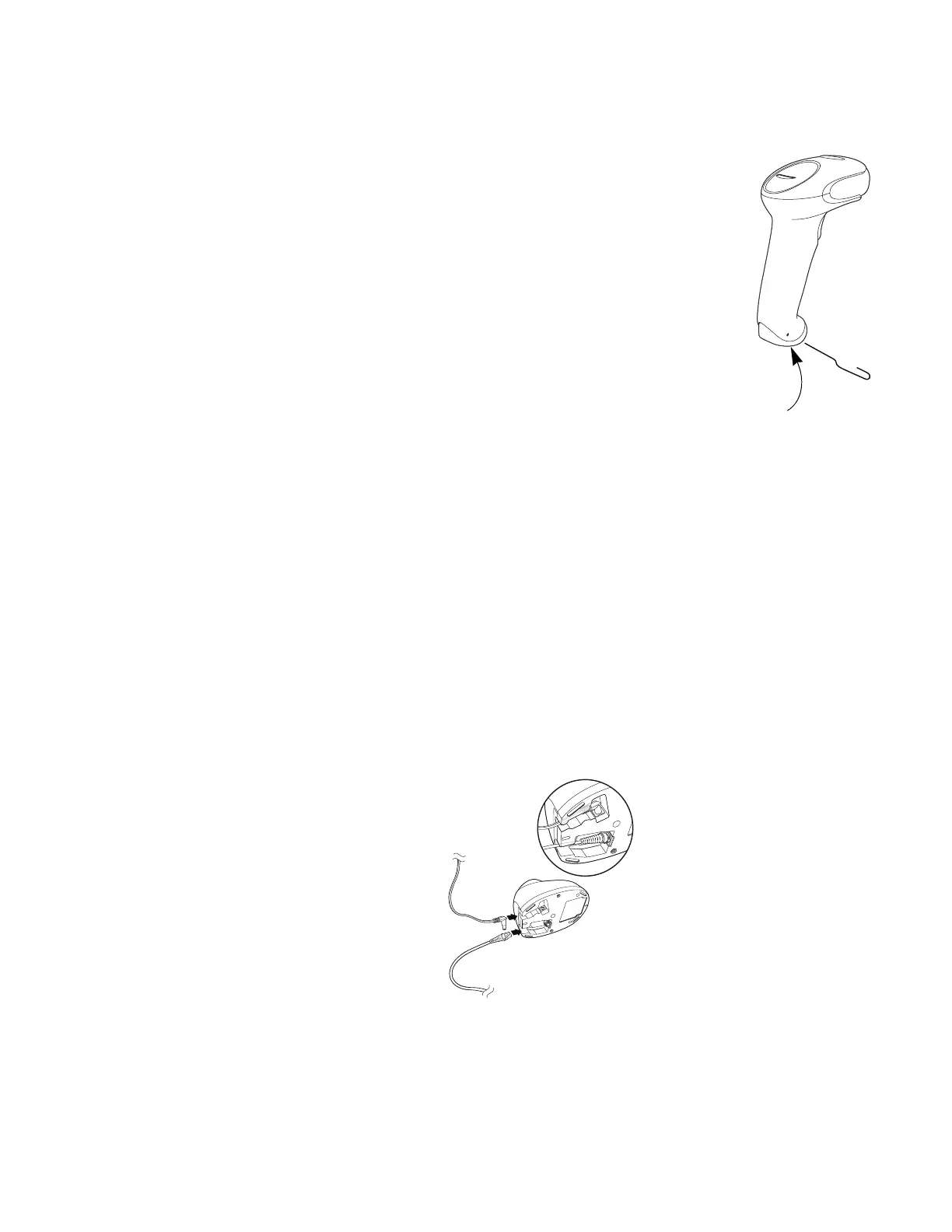

3. Locate the small hole on the back of the scanner’s handle.
This is the cable release.
4. Straighten one end of a paper clip.
5. Insert the end of the paper clip into the small hole and press
in. This depresses the retention tab, releasing the connector.
Pull the connector out while maintaining pressure on the
paper clip, then remove the paper clip.
6. Replace with the new cable.
Insert the connector into the opening and press firmly. The
connector is keyed to go in only one way, and will click into
place.
Replace Cables and Batteries in Cordless Systems
Replace an Interface Cable in a Base
1. Turn the power to the host system OFF.
2. Disconnect the base’s cable from the terminal or computer.
3. Turn the base upside down.
4. Pull the connector out while maintaining pressure on the connector release
clip.
5. Replace with the new cable.
Insert the connector into the opening and press firmly. The connector is keyed
to go in only one way, and will click into place.
Cable
Release
CCB01-010BT-V1N Base:

Honeywell Voyager 1470g Specifications

General

Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Sealing	IP40
Motion Tolerance	Up to 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
Storage Temperature	-40°C to 60°C (-40°F to 140°F)
Weight	130 g (4.6 oz)
Humidity	0% to 95% relative humidity, non-condensing
Scan Pattern	Omnidirectional
Connectivity	USB, RS-232, Keyboard Wedge
Decode Capability	Reads standard 1D
Drop Specification	Withstands multiple 1.5 m (5 ft) drops to concrete
Light Levels	0 to 100, 000 lux
Dimensions	62 mm x 169 mm x 82 mm (2.5 in x 6.6 in x 3.2 in)
Light Source	LED
