202 Voyager XP User Guide
Keyboard Wedge

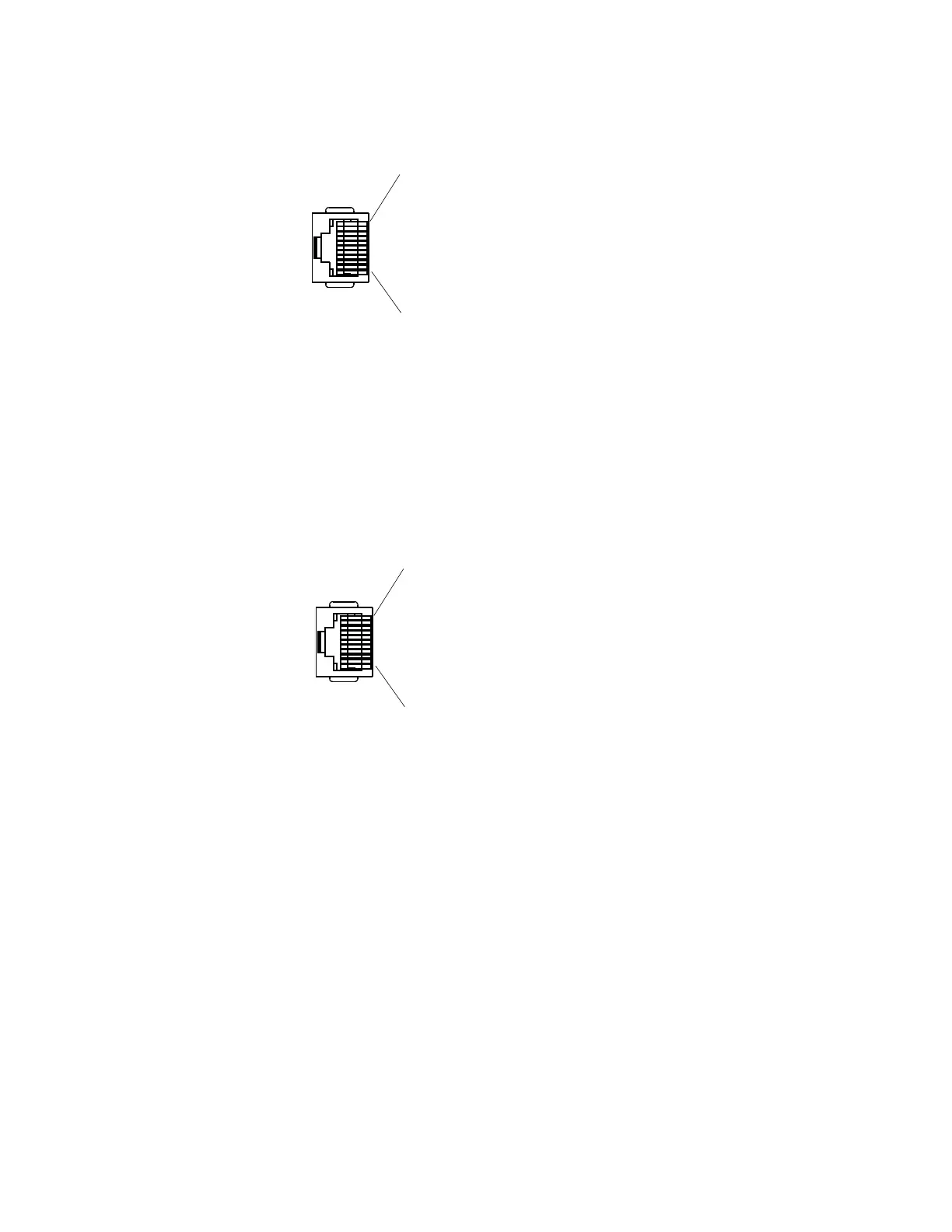

10 Pin RJ41 Modular Plug
Serial Output
10 Pin RJ41 Modular Plug
1Cable shield
2Cable select
3Supply ground
4Terminal data
5Terminal clock
6Keyboard clock
7+5V power
8Keyboard data
9
10
1Cable shield
2Cable select
3Supply ground
4Transmit data
5Receive data - serial data to scanner
6CTS
7+5V power
8RTS
9
10
