Honeywell Voyager 1470g User Manual

150 Voyager XP User Guide
GS1 Composite Codes
Linear codes are combined with a unique 2D composite component to form a new
class called GS1 Composite symbology. GS1 Composite symbologies allow for the
co-existence of symbologies already in use. Default = Off.
UPC/EAN Version
Scan the UPC/EAN Version On barcode to decode GS1 Composite symbols that
have a U.P.C. or an EAN linear component. (This does not affect GS1 Composite
symbols with a GS1-128 or GS1 linear component.) Default = UPC/EAN Version Off.
Note: If you scan coupons that have both UPC and GS1 DataBar codes, you may wish to
scan and output only the data from the GS1 DataBar code. See Coupon GS1 DataBar
Output (page 135) for further information.
GS1 Composite Code Message Length
Scan the barcodes below to change the message length. Refer to Message Length
Description (page 114) for additional information. Minimum and Maximum
lengths = 1-2435. Minimum Default = 1, Maximum Default = 2435.

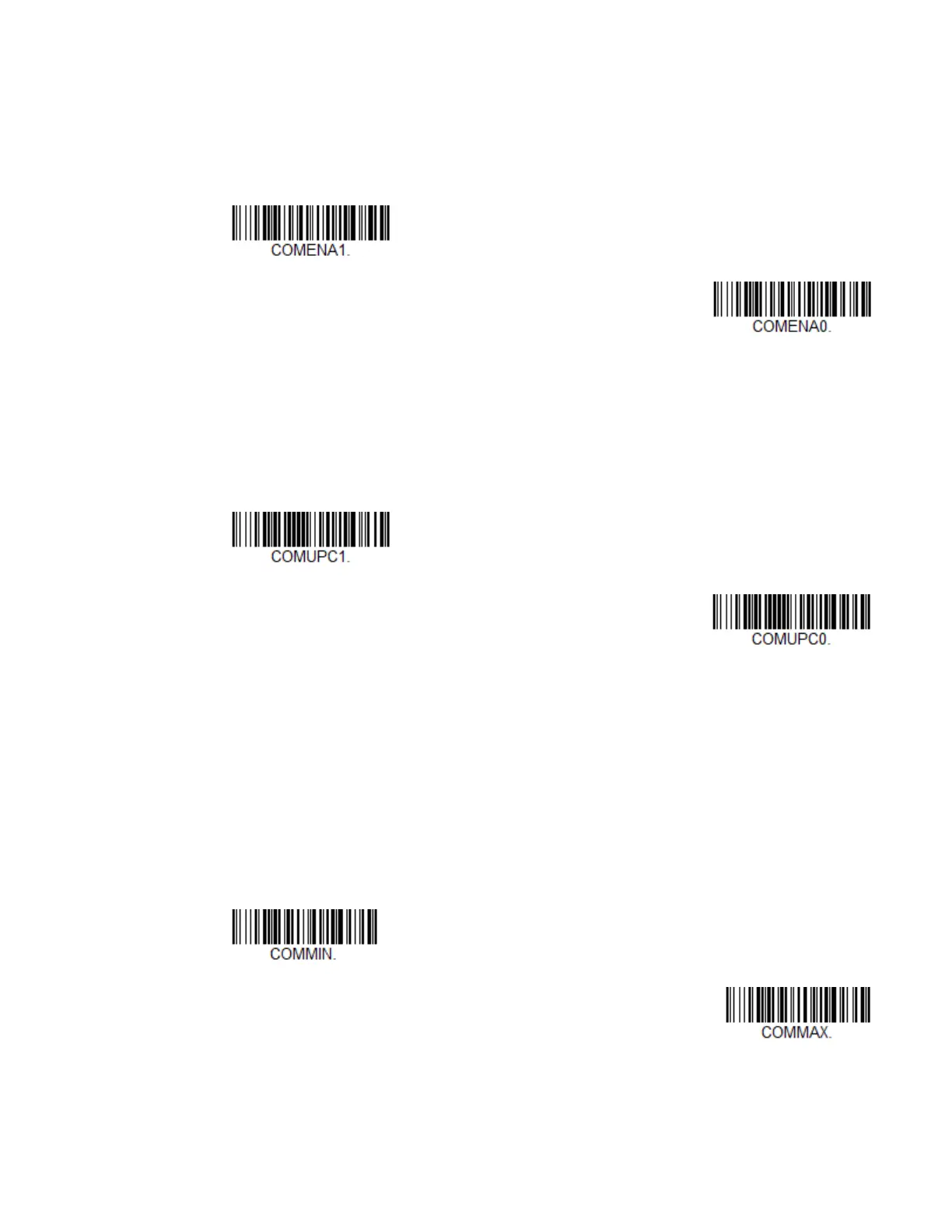

On
* Off
UPC/EAN Version On
* UPC/EAN Version Off
Minimum Message Length
Maximum Message Length

Honeywell Voyager 1470g Specifications

General

Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Sealing	IP40
Motion Tolerance	Up to 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
Storage Temperature	-40°C to 60°C (-40°F to 140°F)
Weight	130 g (4.6 oz)
Humidity	0% to 95% relative humidity, non-condensing
Scan Pattern	Omnidirectional
Connectivity	USB, RS-232, Keyboard Wedge
Decode Capability	Reads standard 1D
Drop Specification	Withstands multiple 1.5 m (5 ft) drops to concrete
Light Levels	0 to 100, 000 lux
Dimensions	62 mm x 169 mm x 82 mm (2.5 in x 6.6 in x 3.2 in)
Light Source	LED
