Honeywell Voyager 1470g User Manual

Voyager XP User Guide 7

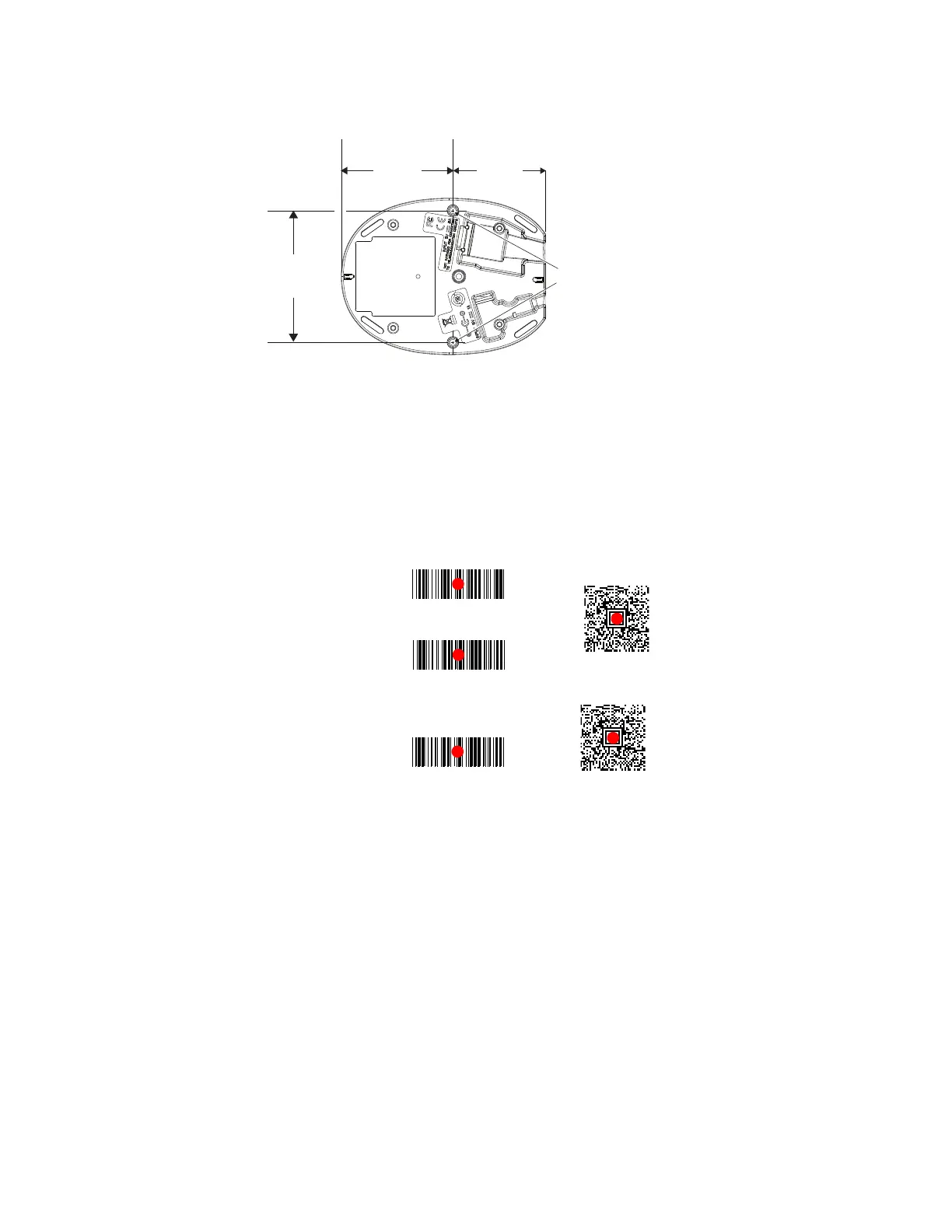

Mount a CCB01-010BT-V1N Charge Base
Reading Techniques
The scanner has a view finder that projects a bright red aiming dot that corre-
sponds to the scanner’s horizontal field of view. The aiming dot should be centered
over the barcode, but it can be positioned in any direction for a good read.
The aiming dot is smaller when the scanner is closer to the code and larger when it
is farther from the code. Symbologies with smaller bars or elements (mil size)
should be read closer to the unit. Symbologies with larger bars or elements (mil
size) should be read farther from the unit. To read single or multiple symbols (on a
page or on an object), hold the scanner at an appropriate distance from the target,
press the trigger, and center the aiming dot on the symbol. If the code being
scanned is highly reflective (e.g., laminated), it may be necessary to tilt the code up
15° to 18° to prevent unwanted reflection.
8x32 thread
x .39 in. (10mm) deep
2.36 in.
59.84mm
3.35 in.
85.09mm
2.8 in.
72.1mm
Linear barcode
2D Matrix symbol

Honeywell Voyager 1470g Specifications

General

Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Sealing	IP40
Motion Tolerance	Up to 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
Storage Temperature	-40°C to 60°C (-40°F to 140°F)
Weight	130 g (4.6 oz)
Humidity	0% to 95% relative humidity, non-condensing
Scan Pattern	Omnidirectional
Connectivity	USB, RS-232, Keyboard Wedge
Decode Capability	Reads standard 1D
Drop Specification	Withstands multiple 1.5 m (5 ft) drops to concrete
Light Levels	0 to 100, 000 lux
Dimensions	62 mm x 169 mm x 82 mm (2.5 in x 6.6 in x 3.2 in)
Light Source	LED
