Honeywell Voyager 1470g User Manual

Voyager XP User Guide 203
USB

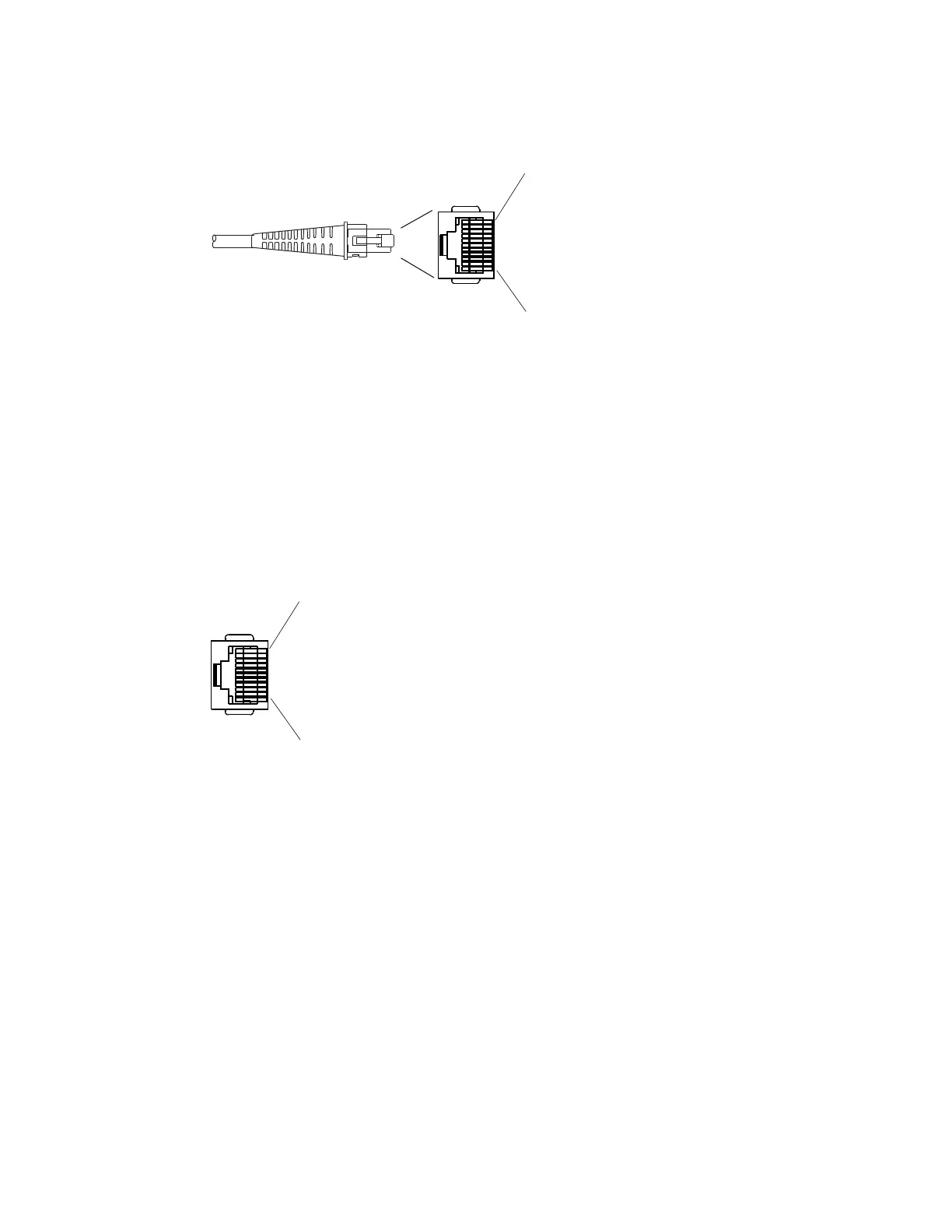

10 Pin Modular Plug
RS485 Output
10 Pin RJ41 Modular Plug
Note: RS485 signal conversion is performed in the cable.
1Cable shield
2Cable select
3Supply ground
4
5
6
7+5V power
8
9Data +
10Data -
1Cable shield
2Cable select
3Supply ground
4Transmit data
5Receive data - serial data to scanner
6
7+5V power
8Transmit Enable
9
10

Honeywell Voyager 1470g Specifications

General

Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Sealing	IP40
Motion Tolerance	Up to 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
Storage Temperature	-40°C to 60°C (-40°F to 140°F)
Weight	130 g (4.6 oz)
Humidity	0% to 95% relative humidity, non-condensing
Scan Pattern	Omnidirectional
Connectivity	USB, RS-232, Keyboard Wedge
Decode Capability	Reads standard 1D
Drop Specification	Withstands multiple 1.5 m (5 ft) drops to concrete
Light Levels	0 to 100, 000 lux
Dimensions	62 mm x 169 mm x 82 mm (2.5 in x 6.6 in x 3.2 in)
Light Source	LED
