Honeywell Voyager 1470g User Manual

Voyager XP User Guide 5
Note: The power supply must be ordered separately, if needed.

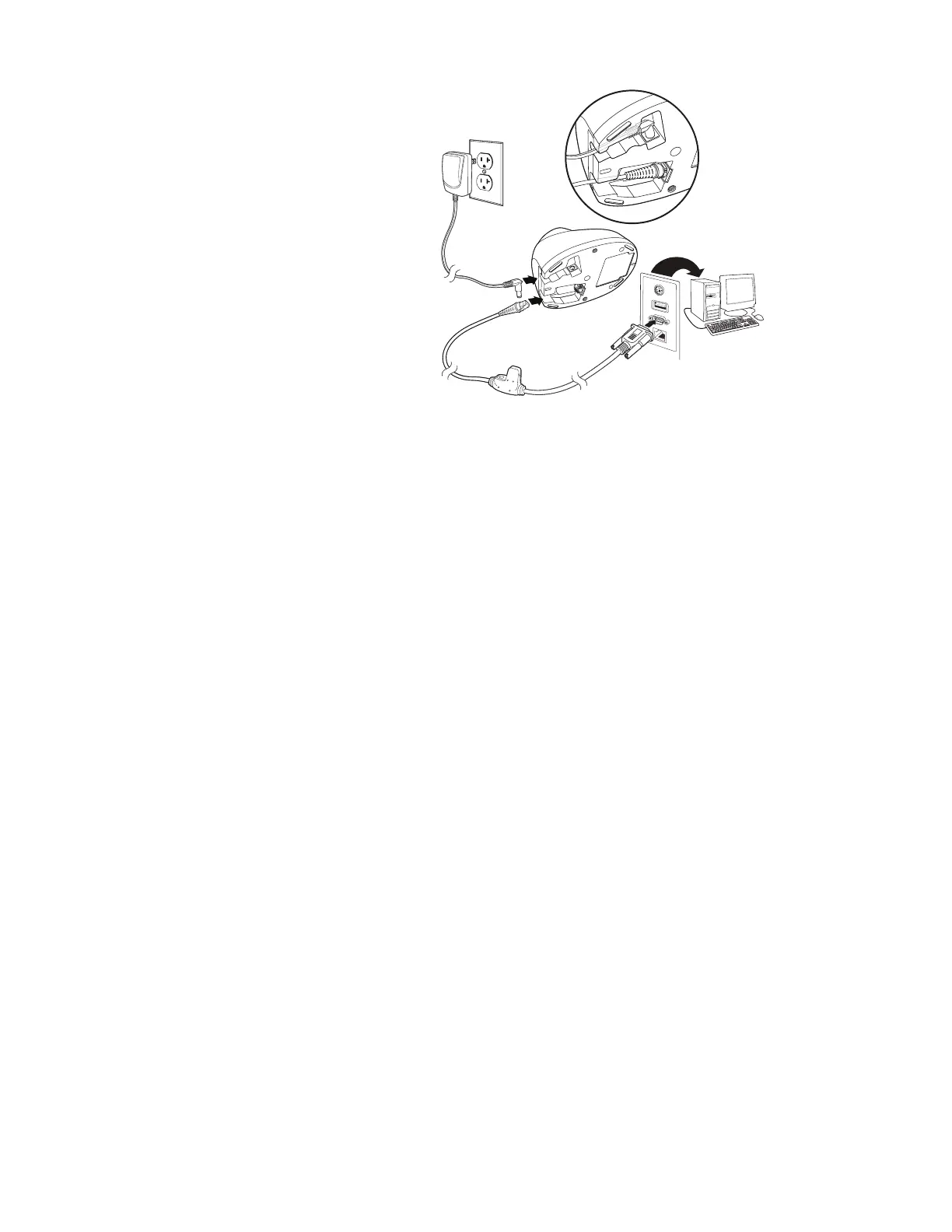

1. If you are connecting a CCB01-010BT-V1N Base, make sure the cables are
secured in the wireways in the bottom of the cordless base and the base sits flat
on a horizontal surface.
2. Plug the serial connector into the serial port on your computer. Tighten the two
screws to secure the connector to the port.
3. Once the scanner or cordless base has been fully connected, power up the
computer.
This interface programs 115,200 baud, 8 data bits, no parity, and 1 stop bit.
Connect with RS485
A scanner or cordless base can be connected for an IBM POS terminal interface.
CCB01-010BT-V1N Base
RS232 Serial Port Connection:

Honeywell Voyager 1470g Specifications

General

Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Sealing	IP40
Motion Tolerance	Up to 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
Storage Temperature	-40°C to 60°C (-40°F to 140°F)
Weight	130 g (4.6 oz)
Humidity	0% to 95% relative humidity, non-condensing
Scan Pattern	Omnidirectional
Connectivity	USB, RS-232, Keyboard Wedge
Decode Capability	Reads standard 1D
Drop Specification	Withstands multiple 1.5 m (5 ft) drops to concrete
Light Levels	0 to 100, 000 lux
Dimensions	62 mm x 169 mm x 82 mm (2.5 in x 6.6 in x 3.2 in)
Light Source	LED
