Honeywell Voyager 1470g User Manual

78 Voyager XP User Guide
User-Specified Good Read Delay

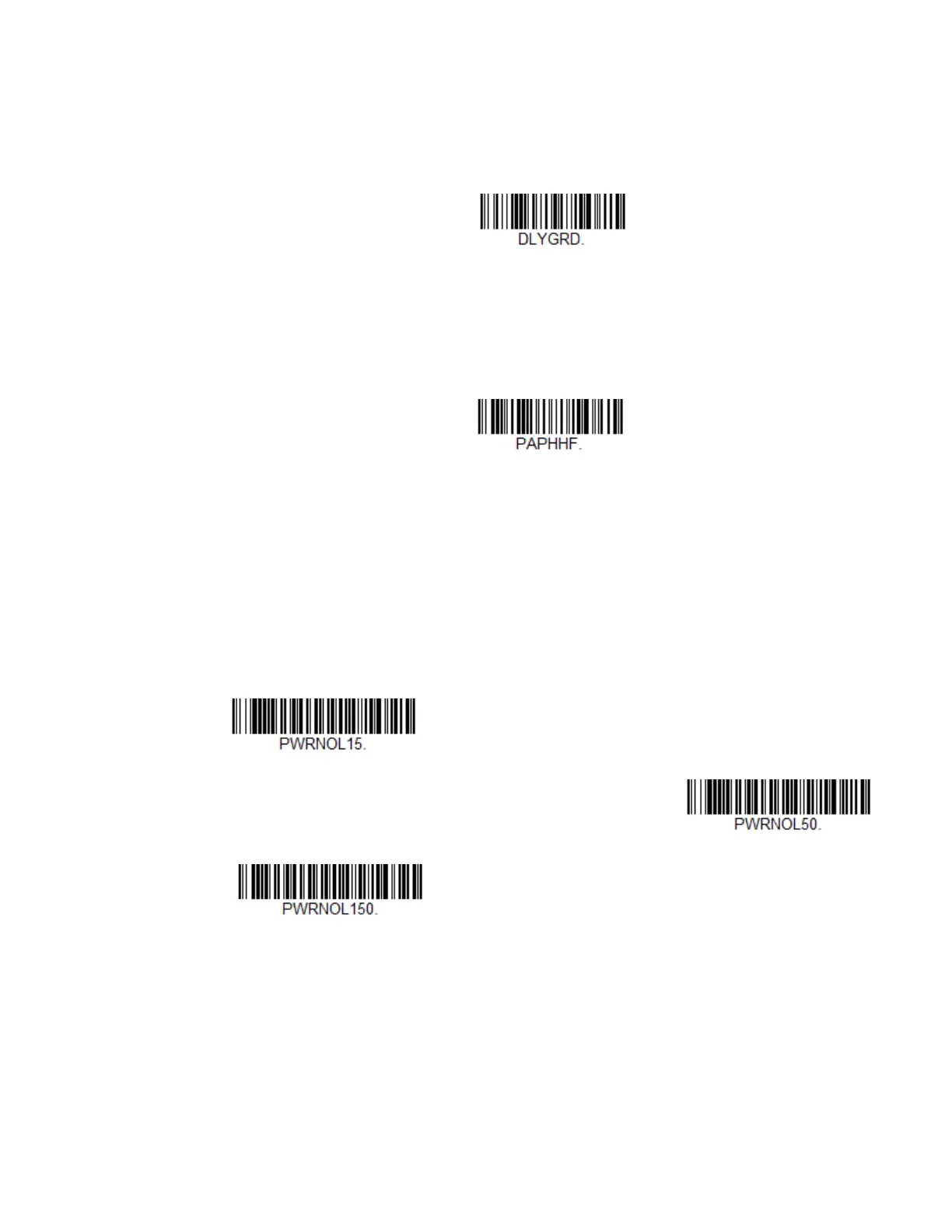

If you want to set your own length for the good read delay, scan the barcode below,
then set the delay (from 0-30,000 milliseconds) by scanning digits from the
Programming Chart, then scanning Save.
Manual Trigger Mode
When in manual trigger mode, the scanner scans until a barcode is read, or until
the trigger is released. Default = Manual Trigger-Normal.
LED Illumination - Manual Trigger
If you wish to set the illumination LED brightness, scan one of the barcodes below.
This sets the LED illumination for the scanner when the trigger is pressed. Default =
High.
Note: The LEDs are like a flash on a camera. The lower the ambient light in the room, the
brighter the LEDs need to be so the scanner can “see” the barcodes
.
User-Specified Good Read Delay
* Manual Trigger - Normal
Low
Medium
* High

Honeywell Voyager 1470g Specifications

General

Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Sealing	IP40
Motion Tolerance	Up to 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
Storage Temperature	-40°C to 60°C (-40°F to 140°F)
Weight	130 g (4.6 oz)
Humidity	0% to 95% relative humidity, non-condensing
Scan Pattern	Omnidirectional
Connectivity	USB, RS-232, Keyboard Wedge
Decode Capability	Reads standard 1D
Drop Specification	Withstands multiple 1.5 m (5 ft) drops to concrete
Light Levels	0 to 100, 000 lux
Dimensions	62 mm x 169 mm x 82 mm (2.5 in x 6.6 in x 3.2 in)
Light Source	LED
