3-48
Performance Tests
PDH Receiver Monitor Levels (Options UKK, [USB])

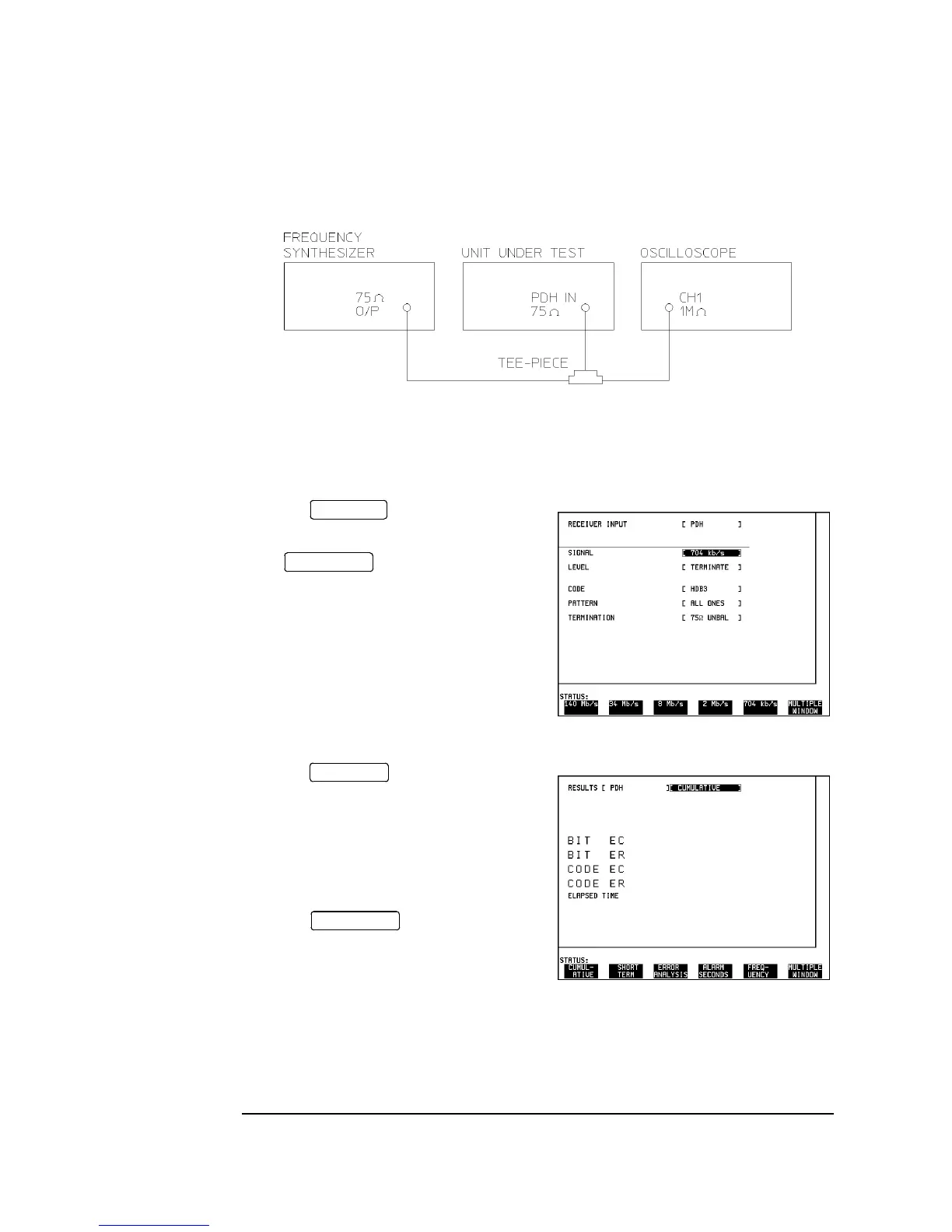

Figure 3-22 PDH Receiver Monitor Levels Test Setup
704 kb/s
5. Press and set up the display
as shown opposite.
Press until the Monitor led is
lit.
6. Press and set up the display
as shown below.
7. Set the Synthesizer to: FREQUENCY -
352 KHz sinewave AMPLITUDE - 150
mV pk-pk (30dB down) as measured on the
oscilloscope.
8. Press and verify that no
errors are displayed at the end of the test
period (5 seconds).
RECEIVE
RUN/STOP
RESULTS
RUN/STOP
To Next Page
