HP 37717C Calibration Manual

3-141
Performance Tests
Transmitted Jitter/Wander Amplitude Accuracy (Option A3K [A3Q])
Transmitted SDH Jitter Accuracy on Ranges 1 & 10

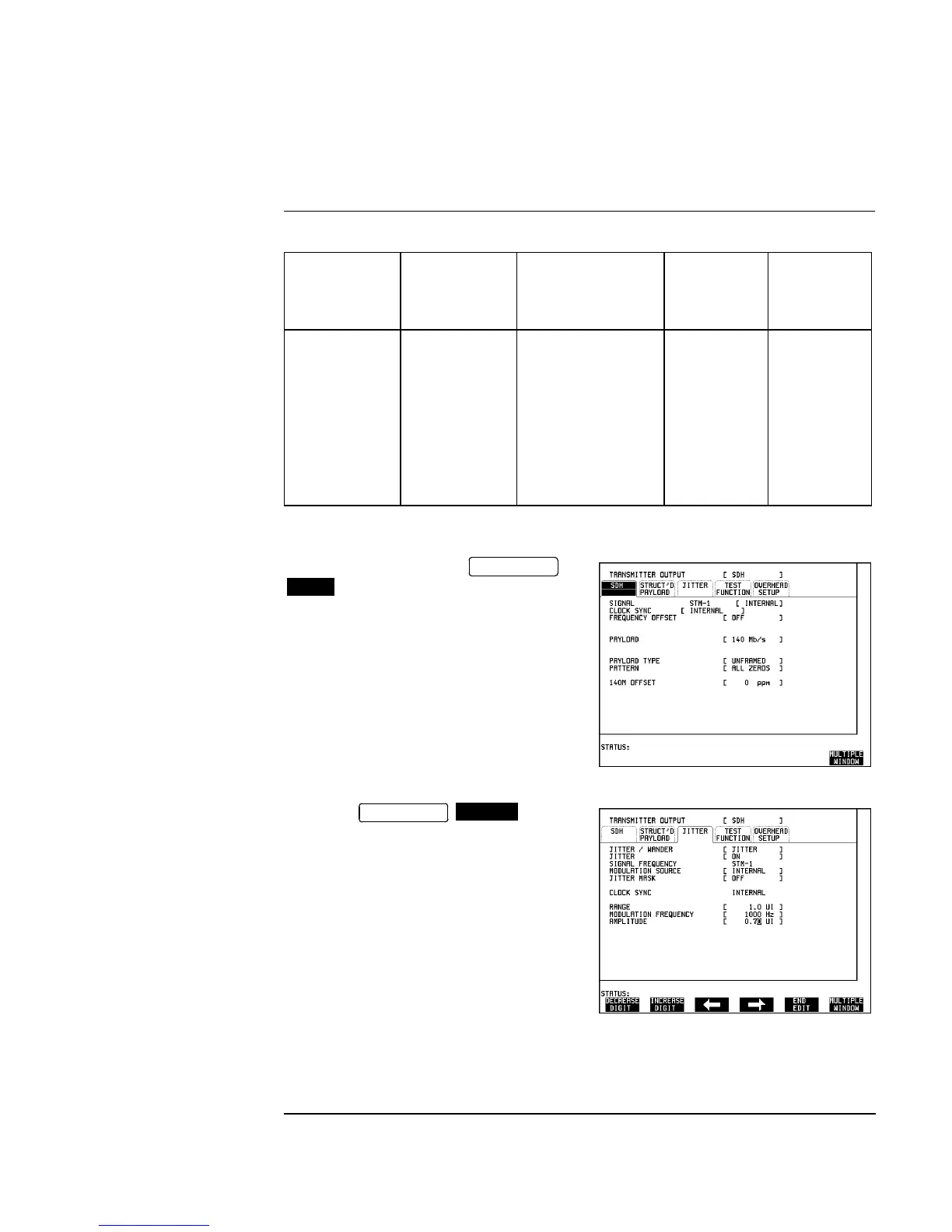

1. Setup the HP 37717C
display as shown opposite.
2. Select and
setup the display as shown opposite.
34368kHz 4000Hz 6.8 6.2 7.3
34368kHz 4000Hz 8.8 8.2 9.3
139264kHz 4000Hz 3.8 3.3 4.2
139264kHz 4000Hz 7.8 7.1 8.4
139264kHz 4000Hz 8.8 8.1 9.4
Table 3-8 Range 10 Tx Jitter Amplitude Accuracy continued
Bit Rate/
Center
Frequency
Modulation
Frequency
Jitter
Amplitude (UI)
Minimum
Jitter (UI)
Maximum
Jitter (UI)
TRANSMIT
SDH
TRANSMIT
JITTER
