HP 37717C Calibration Manual

3-145
Performance Tests
Transmitted Jitter/Wander Amplitude Accuracy (Option A3K [A3Q])
External Jitter Generation
1. Select and setup the HP

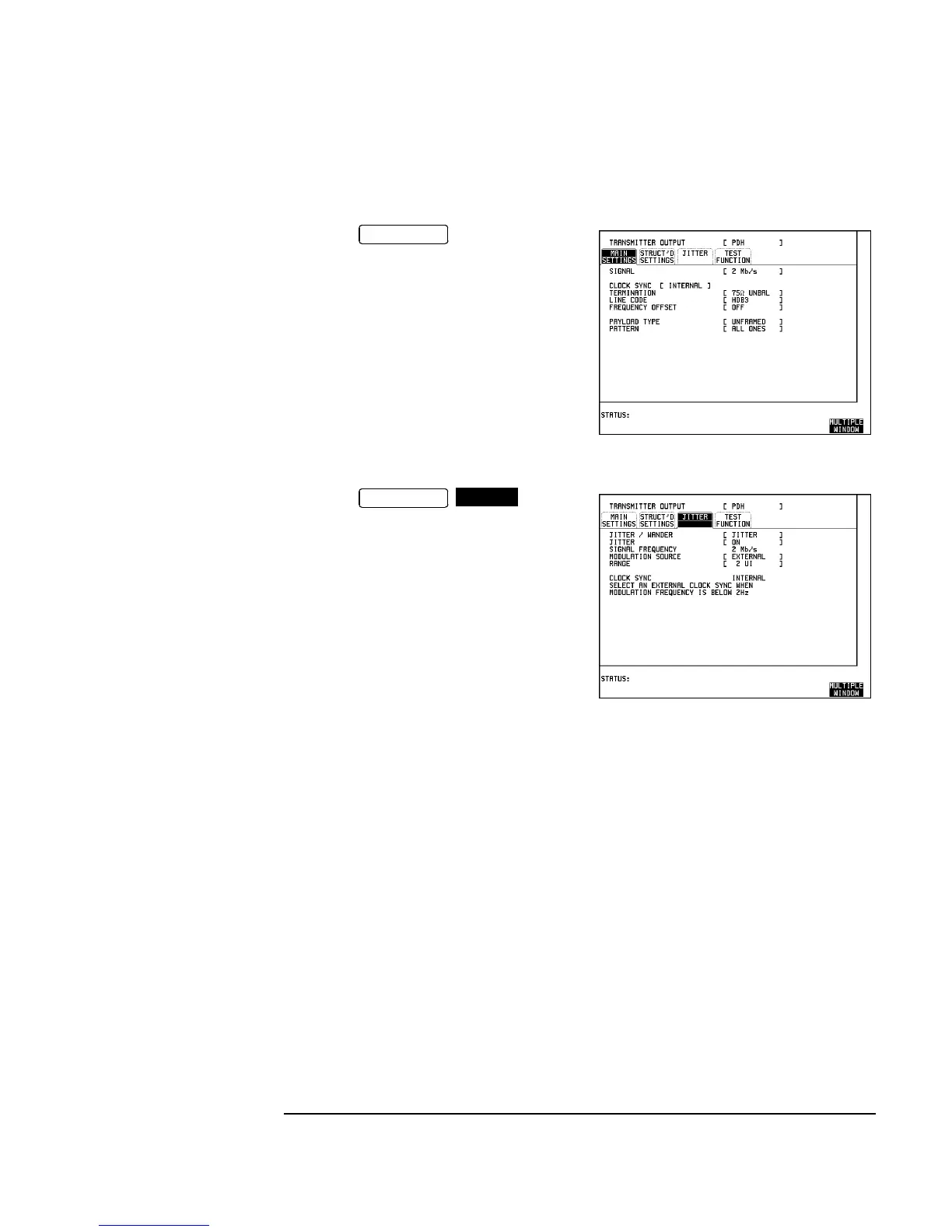

37717C display as shown opposite.
2. Select and
setup the display as shown opposite.
3. Set the Spectrum Analyzer as follows:
Centre Frequency - 2048 kHz
Frequency Span - 25 kHz
Reference Level - 0 dBm
Sweep Time - 1.0 s
Video Bandwidth - 1 kHz
Resolution Bandwidth - 100Hz
4. Set the Synthesizer to Frequency 10 kHz and minimum Output Level.
TRANSMIT
TRANSMIT
JITTER
