HP 37717C Calibration Manual

3-139
Performance Tests
Transmitted Jitter/Wander Amplitude Accuracy (Option A3K [A3Q])
Transmitted PDH Jitter Accuracy on Range 10

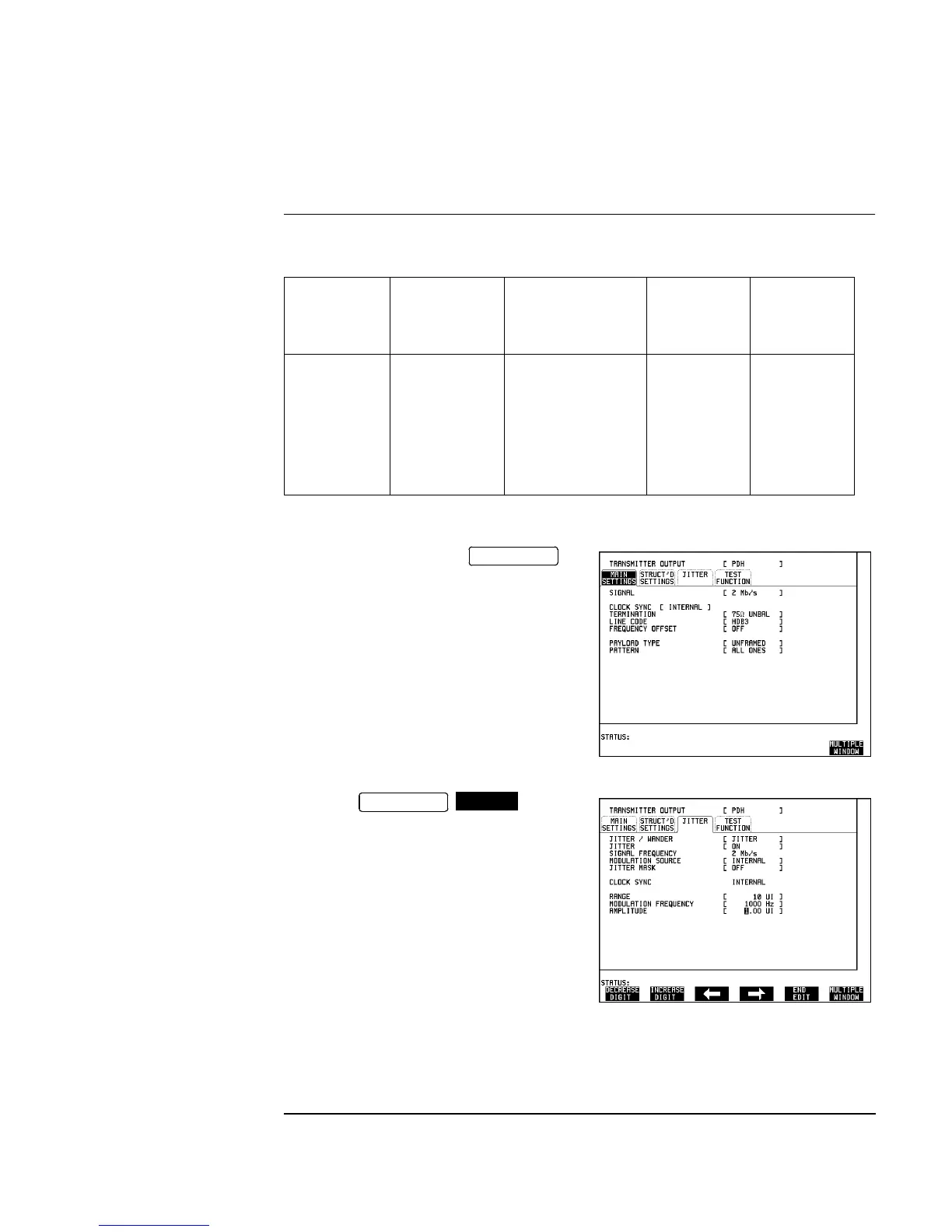

8. Setup the HP 37717C
display as shown below.
9. Select and
setup the display as shown below.
Table 3-7 PDH Range 1 Tx Jitter Amplitude Accuracy
Bit Rate/
Center
Frequency
Modulation
Frequency
Jitter
Amplitude (UI)
Minimum
Jitter (UI)
Maximum
Jitter (UI)
2048kHz 2400Hz 0.77 0.69 0.83
8448kHz 10700Hz 0.77 0.69 0.83
34368kHz 4000Hz 0.77 0.69 0.83
139264kHz 4000Hz 0.77 0.68 0.84
TRANSMIT
TRANSMIT
JITTER
