10.2 (Optional) Installing Communications Cable
10.2.1 IP Networking
Procedure
Step 1 Connect the FE port on the site monitoring unit (SMU) by using a network cable.

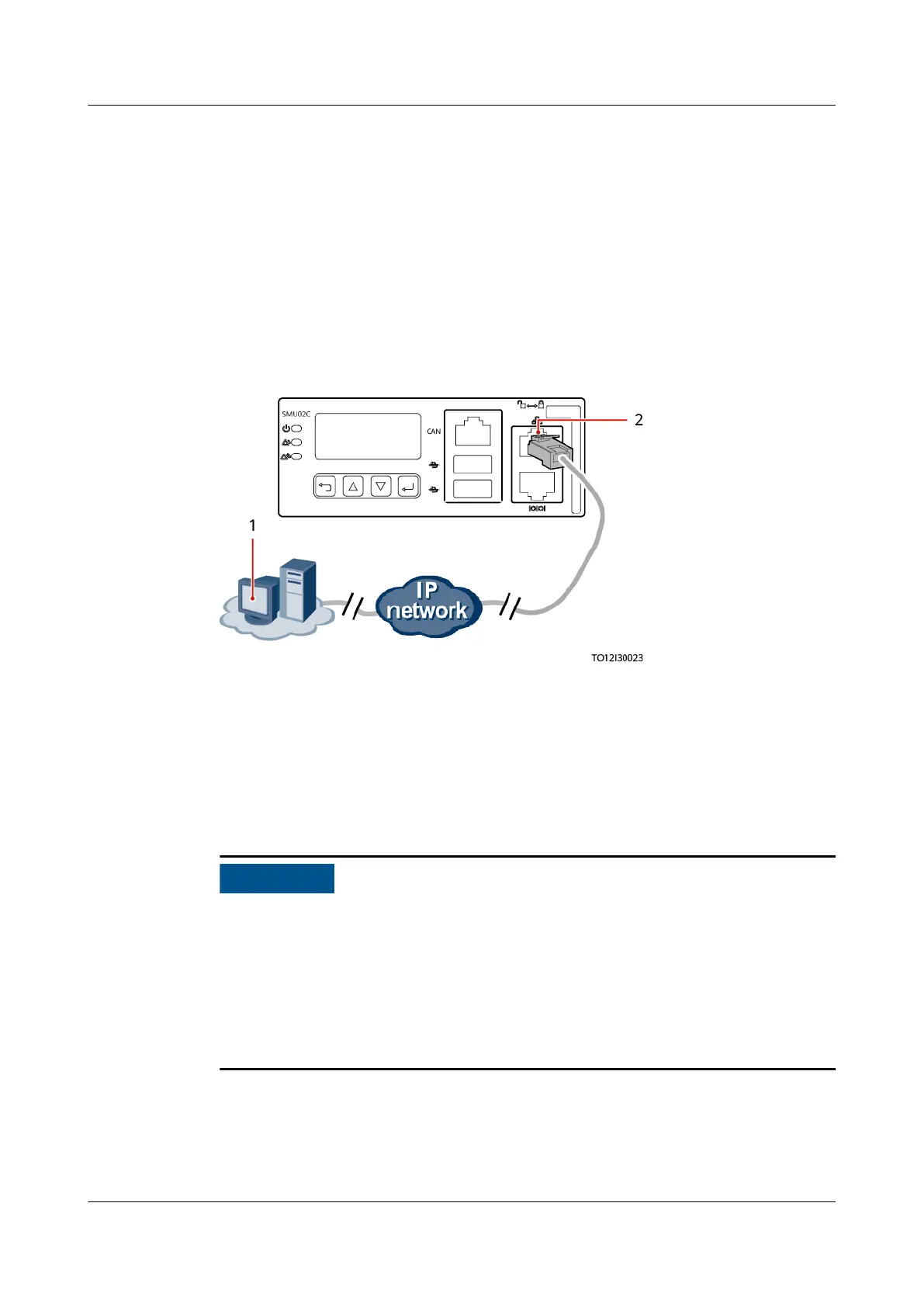

Figure 10-2 Connecting a communications cable (for WebUI management)
(1) User WebUI terminal
(2) FE port on the SMU
----End
10.2.2 Wireless Networking
If the power system uses wireless communication, install a 4G antenna.
● The antenna must be installed vertically and must not be too close to cables
nearby.
● The distance between antennas must be greater than or equal to 200 mm. The
distance between the antenna and the wall must be greater than or equal to
100 mm
● The cable bending radius must be greater than 200 mm. After cables are
installed, bind them.
Procedure
Step 1 Install an antenna on the top of the cabinet and connect the other end of the
antenna cable to the ANT port on the GIM.
PowerCube 1000 (STC, Saudi Arabia, ICC800-A1-C2,
ESC800-A1)
Installation Guide 10 Installing Cables
Issue 02 (2021-09-28) Copyright © Huawei Technologies Co., Ltd. 106
