10.4 Installing CAN Communications Cables
A build-out resistor needs to be installed for the ESM at the last level of CAN
communication.

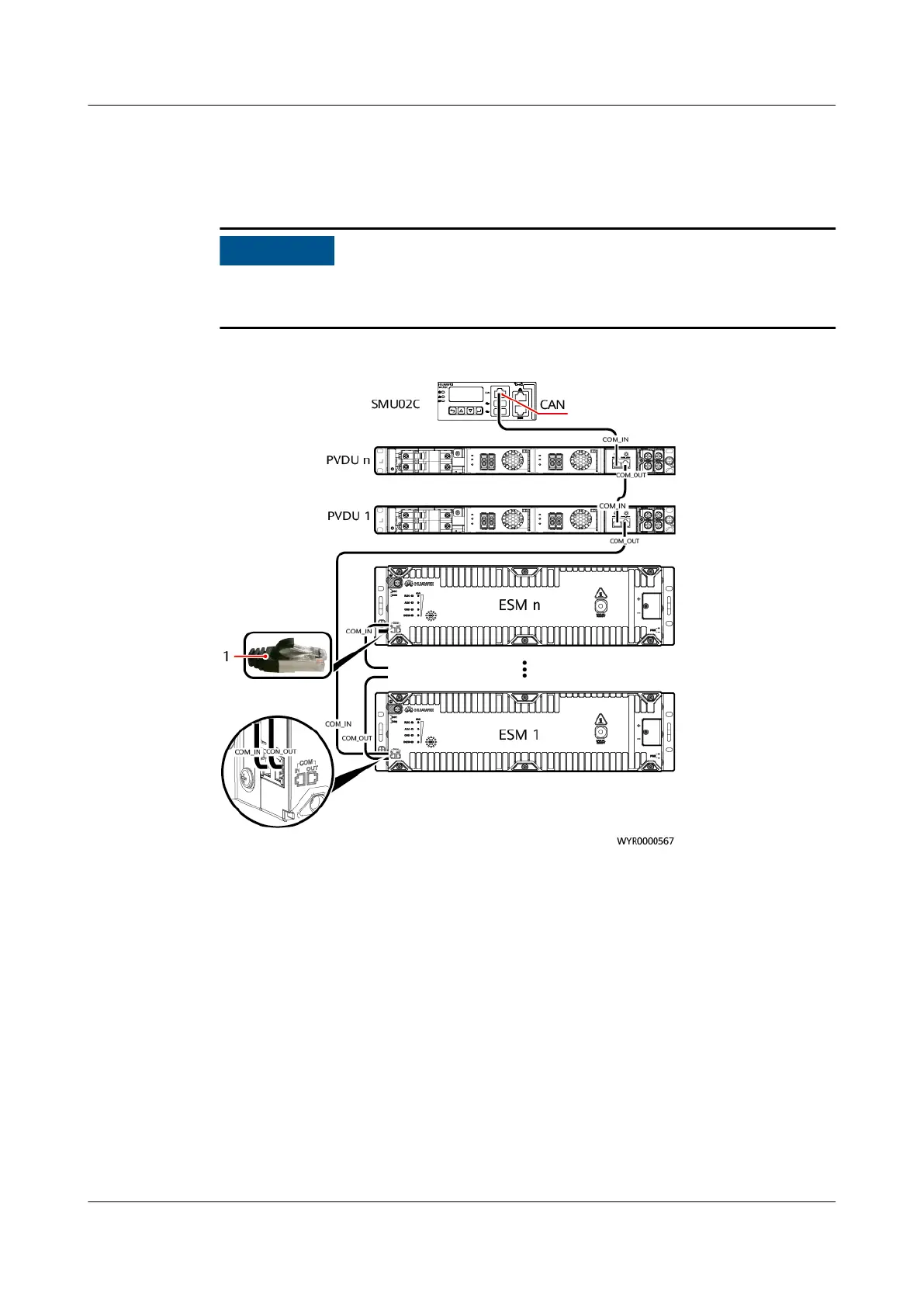

Figure 10-10 Installing CAN communications cables
(1) Build-out resistor
10.5 Installing Cables Between the ESC800 and the
ICC800
Procedure
Step 1 Install cables for cascaded digital temperature and humidity sensor.
PowerCube 1000 (STC, Saudi Arabia, ICC800-A1-C2,
ESC800-A1)
Installation Guide 10 Installing Cables
