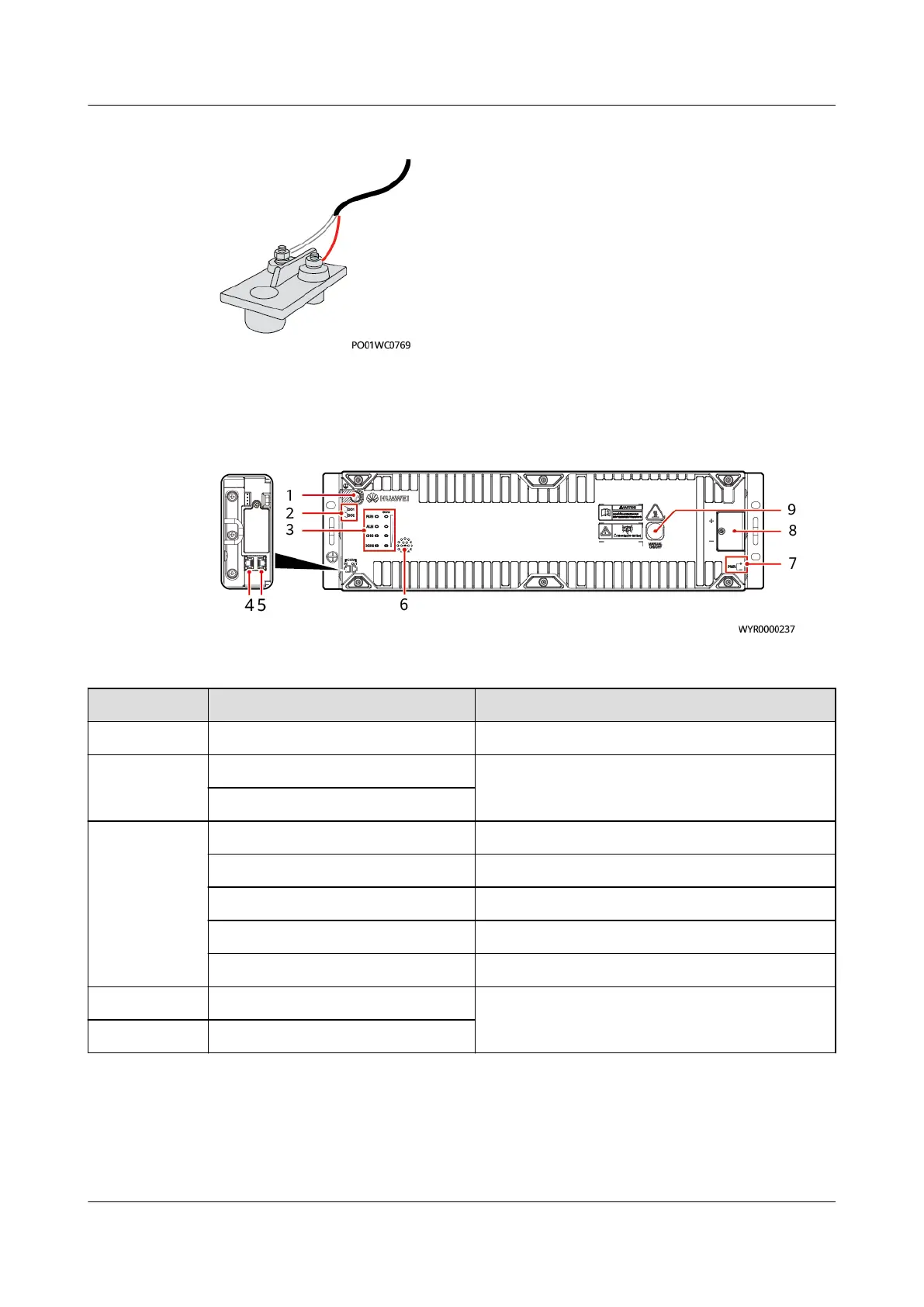

Figure 3-41 Appearance
3.22 ESM-48100A6
Figure 3-42 Panel and ports
Table 3-31 Port description
No.
Silk Screen Item
1 GND Protective ground
2 DO1 Alarm output dry contacts
DO2
3 RUN Running indicator
ALM Alarm indicator
CHG Charge indicator
DCHG Discharge indicator
SOC SOC indicator
4 COM_ IN Communications ports
5 COM_ OUT
PowerCube 1000 (STC, Saudi Arabia, ICC800-A1-C2,
ESC800-A1)
Installation Guide 3 Component
Issue 02 (2021-09-28) Copyright © Huawei Technologies Co., Ltd. 56
To Next Page
