Table 3-6 Intelligent circuit breaker (iCBD)
Circuit Breaker Slot No. Feature
The number indicated by the arrow is the slot
number of the circuit breaker. On the LUI,
WebUI, or NMS, the circuit breaker slot number
corresponds to the branch number, such as
branch 17 and branch 19 in the preceding
gure.
The intelligent circuit breaker integrates the
power-o and measurement functions.
The intelligent circuit breaker is powered by the UIM. If the UIM is faulty or removed, the
intelligent circuit breaker cannot be switched on or o over remote management or local
LUI. In this case, you can only operate the circuit breaker handle to switch on or o the
intelligent circuit breaker.
3.7 DC Output Box

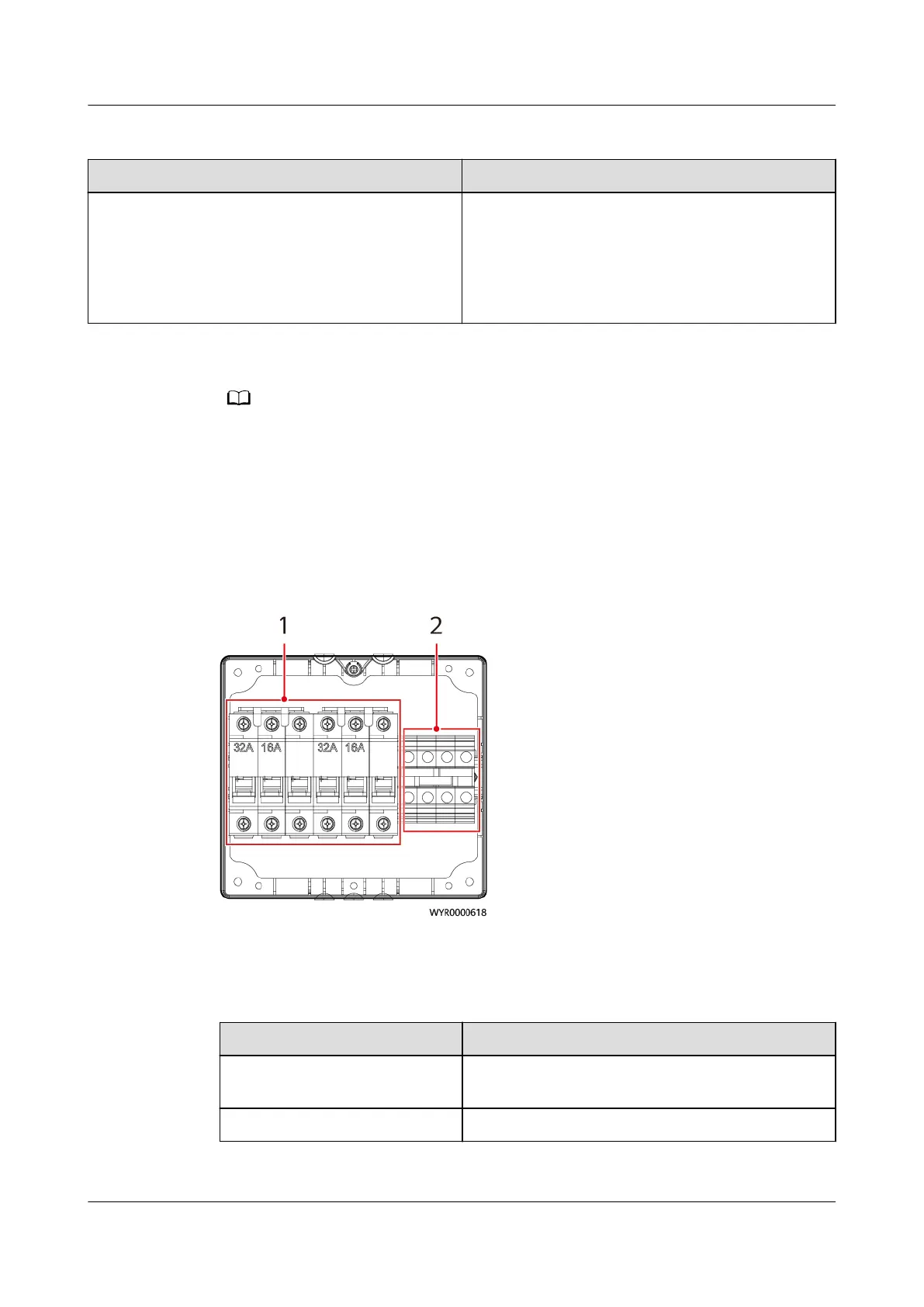

Figure 3-15 DC output box panel (ICC800-A1-C2)
(1) DC output circuit breakers
(2) RTN+ terminal
Table 3-7 PDU specications
Item
DC output box
DC power distribution DC output: 2 x 32 A/1P, 2 x 16 A/1P and 2 x 6
A/1P circuit breakers
Installation mode Installed on the cabinet side panel.
PowerCube 1000 (STC, Saudi Arabia, ICC800-A1-C2,
ESC800-A1)
Installation Guide 3 Component
Issue 02 (2021-09-28) Copyright © Huawei Technologies Co., Ltd. 33
