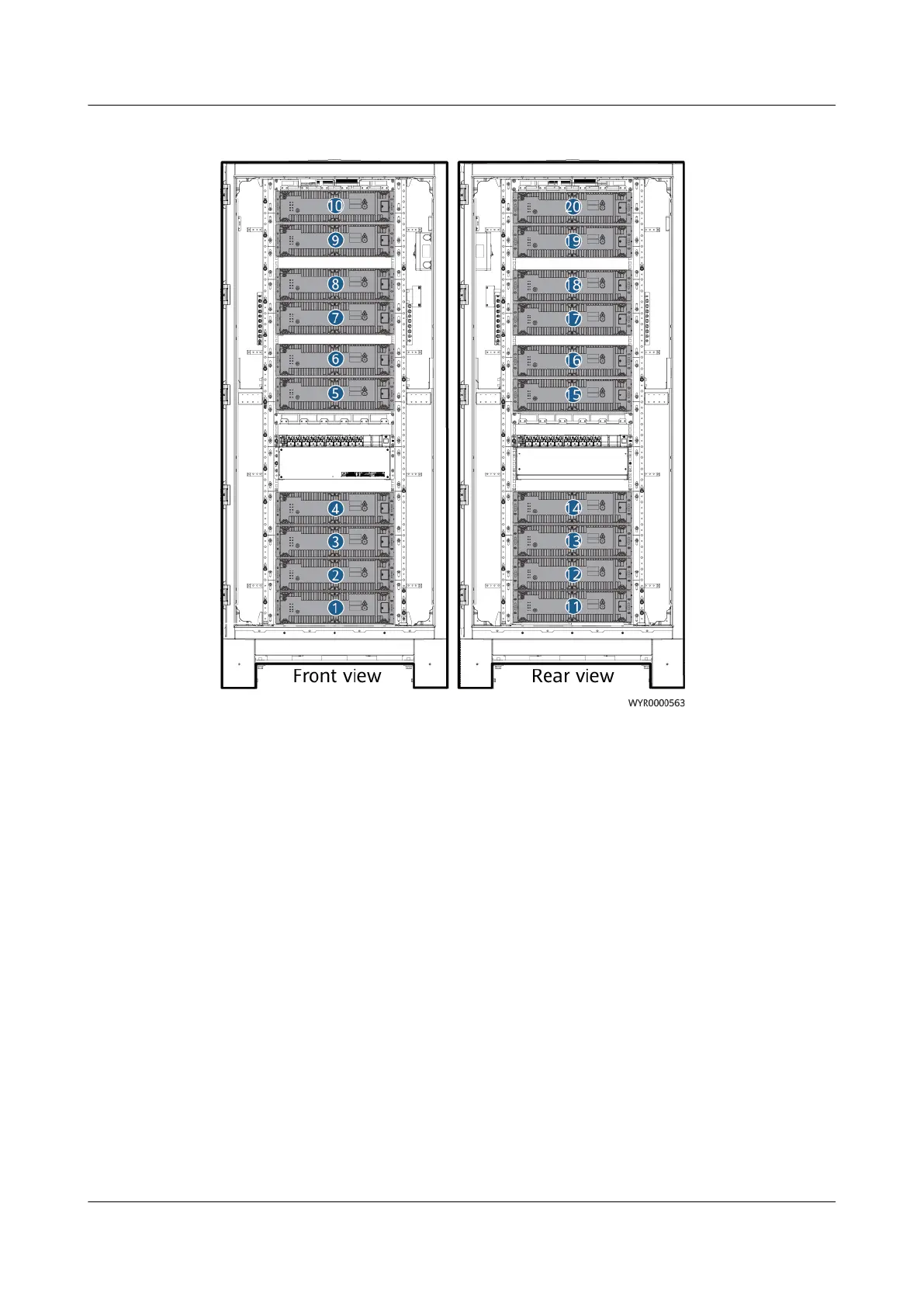

Figure 8-3 Component installation positions in ESC800 (8 KW)
8.2 Installing a PSU
Prerequisites
● If a PSU is required, perform the following steps to install it.
● The PSU delivered onsite is complete and intact after unpacking and
acceptance.
● The
ller panel has been removed from the PSU slot.
PowerCube 1000 (STC, Saudi Arabia, ICC800-A1-C2,
ESC800-A1)
Installation Guide 8 Installing Components
Issue 02 (2021-09-28) Copyright © Huawei Technologies Co., Ltd. 88
