5.4 Cabinet Cable Hole Positions and Denitions

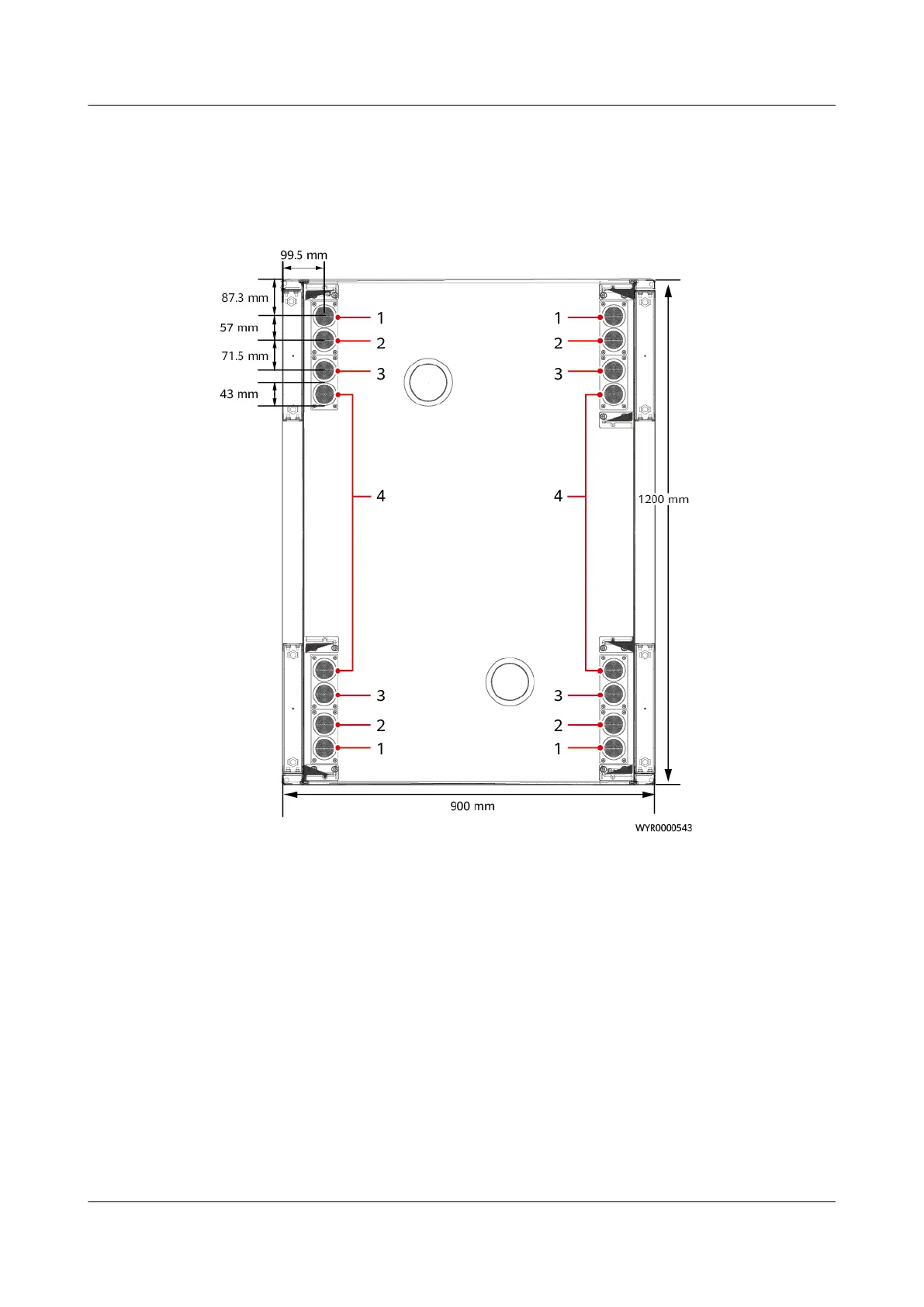

Figure 5-3 Positions and denitions of cable holes at the bottom of the cabinet
(1) For AC power cables and
ground cables
(2) For DC power cables (3) Reserved
(4) For signal cables
PowerCube 1000 (STC, Saudi Arabia, ICC800-A1-C2,
ESC800-A1)
Installation Guide 5 Installation Preparations
Issue 02 (2021-09-28) Copyright © Huawei Technologies Co., Ltd. 68
