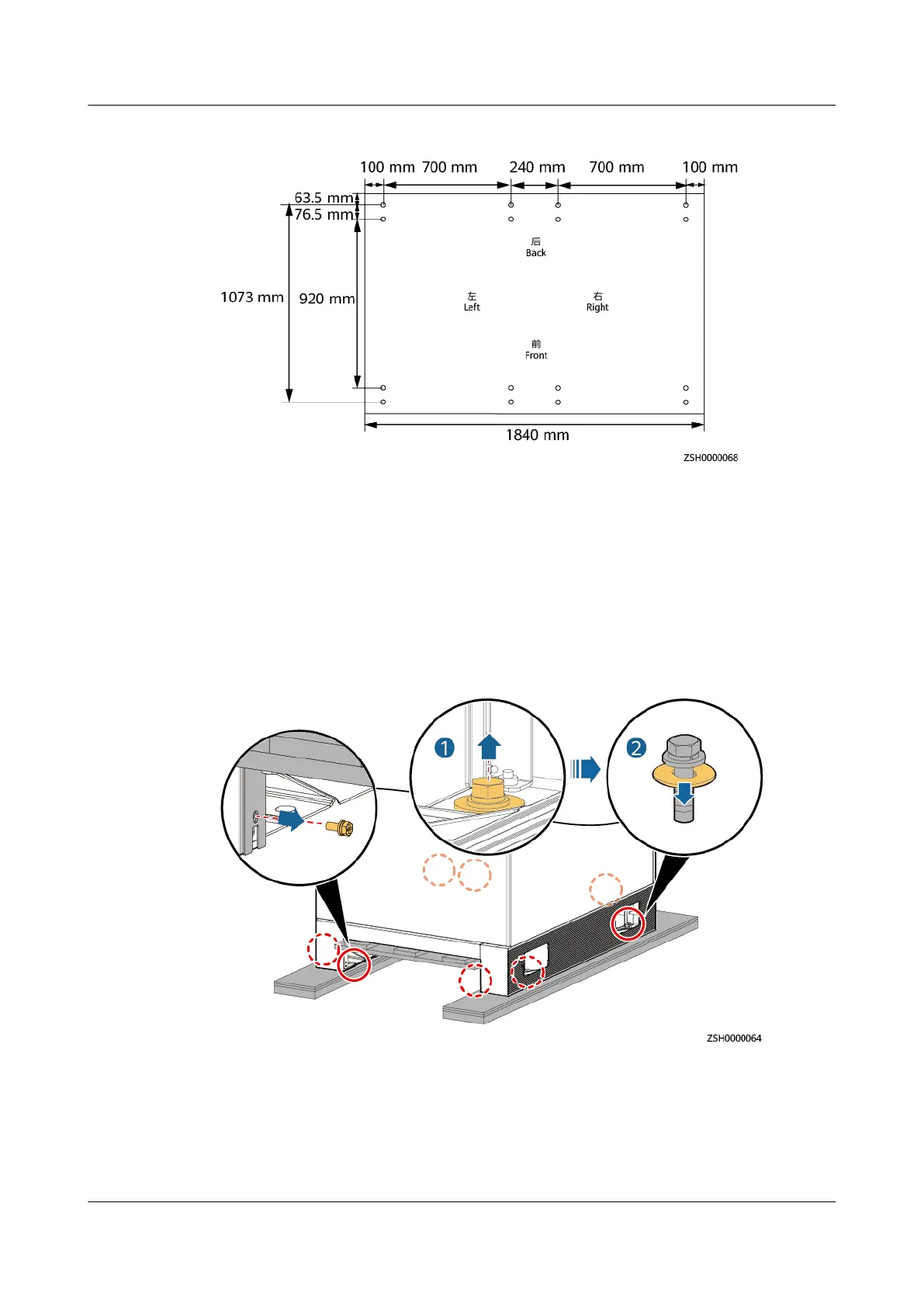

Figure 7-2 Marking mounting holes for two cabinets
----End
7.2 Drilling Holes and Installing Expansion Sleeves
Procedure
Step 1 Remove the cabinet pallet and take out the at washer.
Figure 7-3 Remove the cabinet pallet
Step 2 Replace the at washers on the expansion bolts with the removed at washers
and the at washers in the cabinet.
PowerCube 1000 (STC, Saudi Arabia, ICC800-A1-C2,
ESC800-A1)
Installation Guide 7 Installing the Cabinet
Issue 02 (2021-09-28) Copyright © Huawei Technologies Co., Ltd. 73
