302
Appendix A Circuit Board And Cable Pinouts

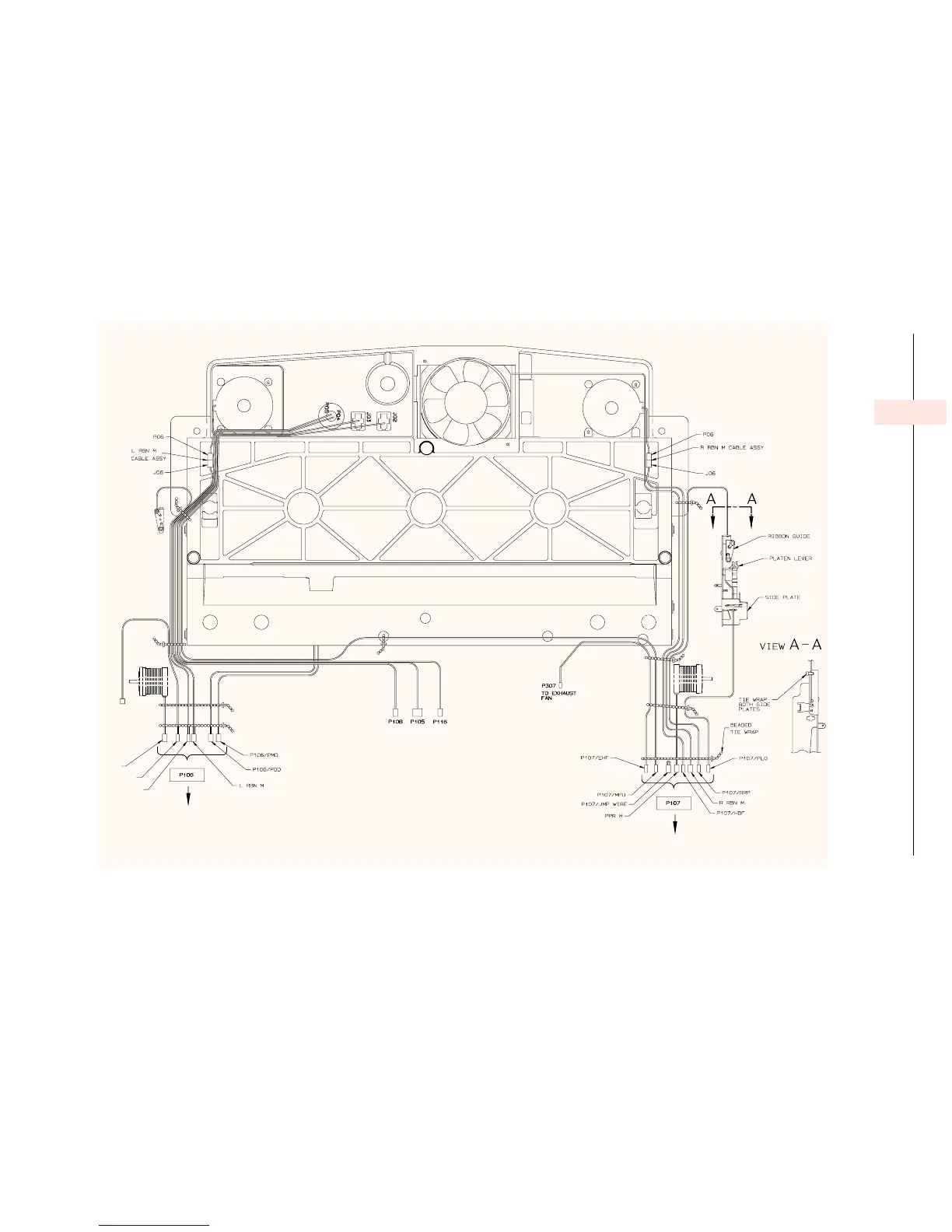

Cable Routing, Mechanism Base, Pedestal Model
on Controller
on Controller
Left Side
Right Side
Front of Printer
of Printer
of Printer
(See page 166 for
connector detail.)
(See page 166 for
connector detail.)
(Not connected
on pedestal models)
To J107 on CMX board
To J106 on CMX board
NOTE: This view shows the underside of the
mechanism base.
P306
TO CARD
CAGE FAN
PLAT M
P106/CCF
P106/LRP
