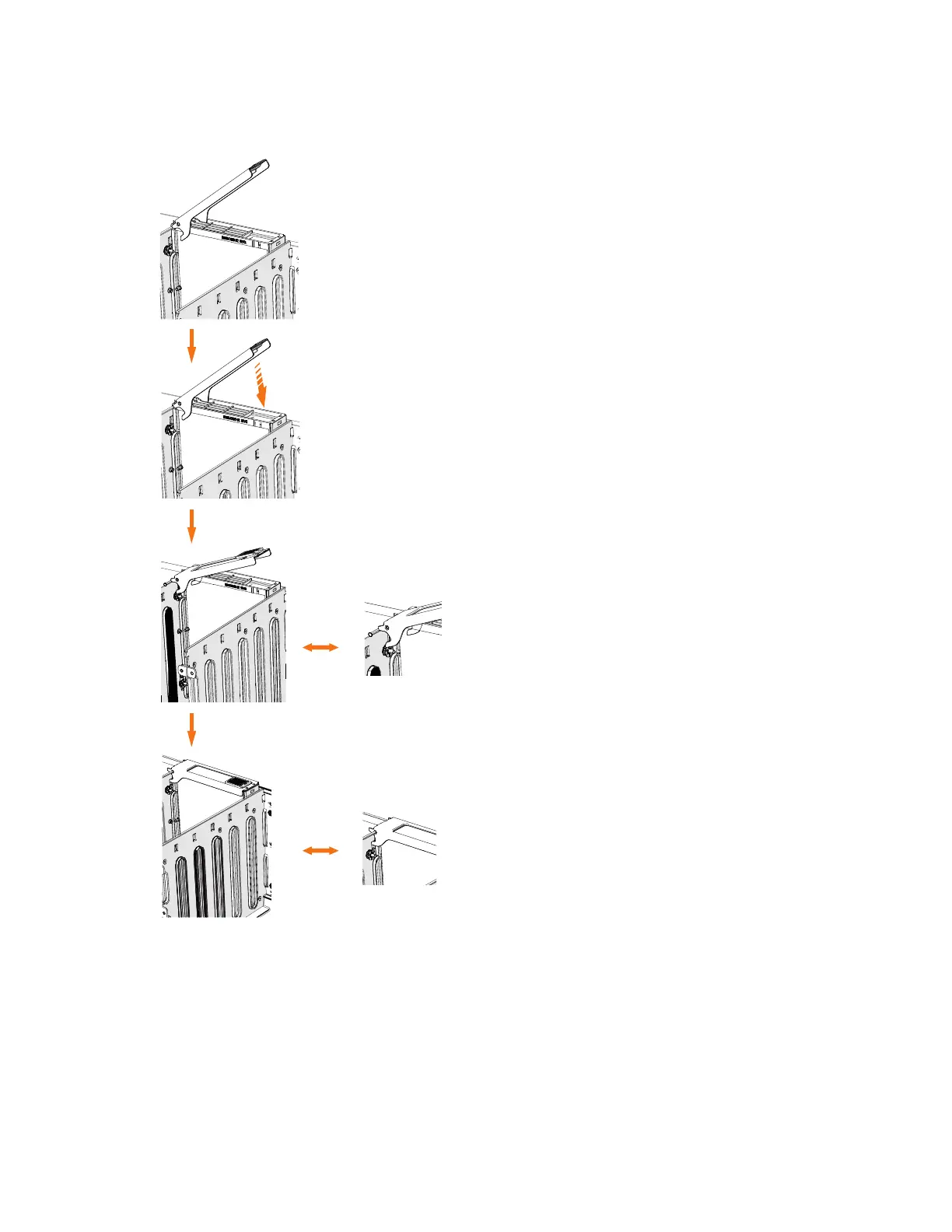

9. Rotate the handle down to lock the drive assembly into the chassis (▌3▐ in
Figure 82).
1
2
3
4
svc00982
Figure 82. Replace the drive
Chapter 4. Installing an optional 5U SAS expansion enclosure 85
