Special Tools
The following special tools are required to service the Dock
II.
Volt-Ohm Meter
A meter similar to the Triplet Model 310
1
.
Screwdriver Kit
Use small screwdrivers (IBM part 95F3598) when
removing and replacing FRUs.

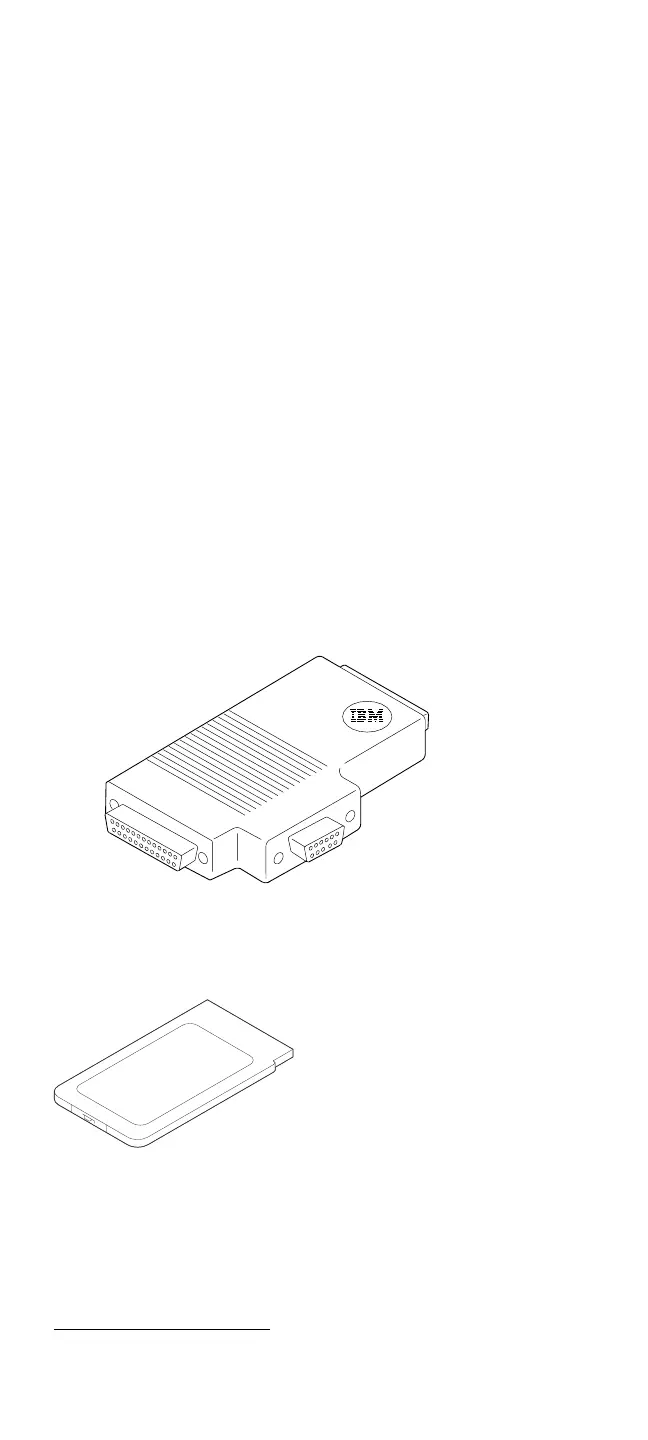

Wrap Plug
The tri-connector wrap plug (IBM part 72X8546) is used
during advanced diagnostic tests of:
Serial Connectors
Parallel Connectors
PC Test Card
The PC test card (IBM part 35G4680) is used during
advanced diagnostic tests of the PCMCIA slots.
1
Manufactured by Triplett Corporation, Bluffton, Ohio 45817,
U.S.A.
Dock II (3546) 461
