DV MODE OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

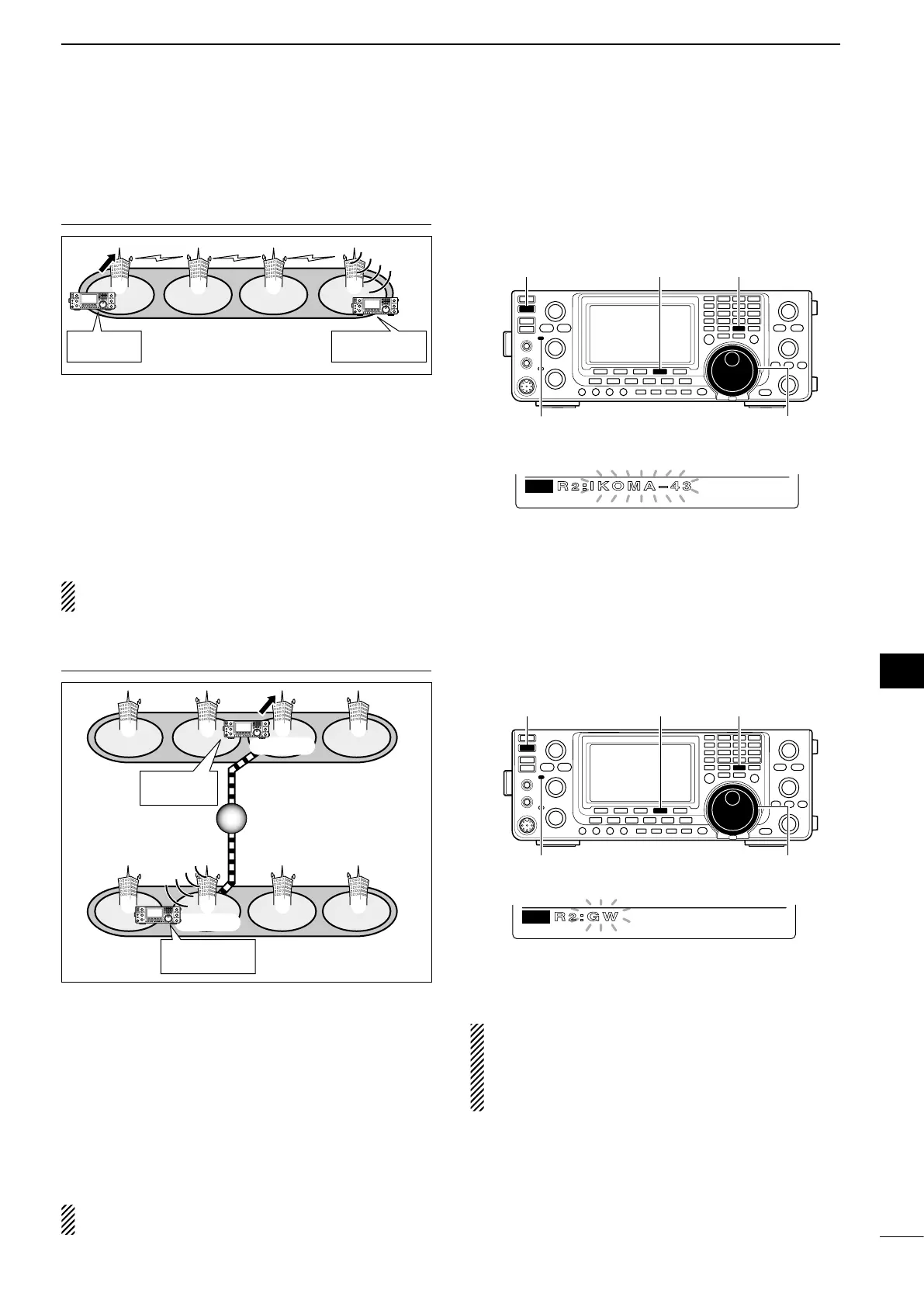

Link repeater in the same zone
CS CD R>CS UR DSET
D1
R2:IKOMA−43
Gateway repeater “GW”
CS CD R>CS UR DSET
D1
R2:GW
Making a call to an individual station through a
link repeater in the same zone (Zone call)
MY call sign：
JA3YUA
Station call sign：
JG3YMK
Repeater q ： NARA43 (JP3YHL)
Repeater r ： IKOMA-43 (JP3YHJ)
q w e r
Area
Zone
u Rotate [MAIN DIAL] to select the link repeater in
the same zone.
•Only repeaters with thesame gateway repeater ap-
pear.
i Push [UR](F-4) to exit the selection mode.
o Push [PTT] on the microphone to transmit. (or
[TRANSMIT] on the transceiver)
•TheMAINBandTX/RXindicatorlightsred.
!0 Release [PTT] to receive. (or push [TRANSMIT]
again)
If you want to save this temporary setting, push [MW]
to enter the memory select write mode. (p. 102)
Making a call to an individual station
through a
gateway repeater (Gateway call)
Repeater e ：
Repeater y ：
HIRANO43
(JP3YHH G)
HAMA43
(JP1YIU G)
Gateway
Gateway
Area
Zone A
Zone B
q w e r
t y u i
MY call sign：
JA3YUA
Station call sign：
JM1ZLK
u Rotate [MAIN DIAL] to select “GW.”
•Thepre-programmedgatewayrepeaterissetasR2.
•Only repeaters with thesame gateway repeater ap-
pear.
i Push [UR](F-4) to exit the Link repeater (R2) selec-
tion mode.
o Push [PTT] on the microphone to transmit. (or
[TRANSMIT] on the transceiver)
•TheMAINBandTX/RXindicatorlightsred.
!0 Release [PTT] to receive. (or push [TRANSMIT]
again)
If you want to save this temporary setting, push [MW]
to enter the memory select write mode. (p. 102)
[TRANSMIT] [UR] [MW]
[MAIN DIAL]
MAIN Band TX/RX indicator
NOTE: If other station has accessed a repeater at
least once, the D-STAR system will automatically
connect to the last repeater the station accessed,
even if you don’t know where the station is. So it is
no need to select the destination repeater.
[TRANSMIT] [UR] [MW]
[MAIN DIAL]
MAIN Band TX/RX indicator
