Icom IC-9100 User Manual

108
8
DV MODE OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
• Calling CQ
My call sign：
JA3YUA
Repeater q ： JP3YHL
Repeater r ： JP3YHJ
CQ
q w e r
Area
Zone
• Calling an individual station
My call sign：
JA3YUA
Station call sign：
JG3YMK
Repeater q ： JP3YHL
Repeater r ： JP3YHJ
q w e r
Area
Zone
[TRANSMIT]
MAIN Band
TX/RX indicator
[MAIN DIAL]
[DV•DR][MENU]
[VFO/MEMO][SET][Z] [GRP]
UR
Ú
≈ UR
CLR
JG3YMK
EDT NAME GRP
R1
Ú
≈ R1
CLR
JP3YHL
EDT NAME GRP
UR
Ú
≈ U01
CQCQCQ
SET GRP
Rotate [MAIN DIAL]
R2
Ú
≈ R2
CLR
JP3YHJ
EDT NAME GRP
MY
Ú
≈ MY1
CLR
JA3YUA ⁄
EDT NAME
UR
Ú
≈ UR
CLR
CQCQCQ
EDT NAME GRP
• Calling CQ in the same zone (Zone CQ)
q Select the desired frequency band. (p. 35)
w Push [VFO/MEMO] to select the VFO mode.
e Push [DV•DR] to select the DV mode.
r Set the repeater’s transmit frequency, duplex direc-
tion and offset. (pp. 37, 65, 163)
t
P ush [MENU] one or more times to display the “M3”
screen (Menu 3).
y P ush [CS](F-1) to display the “CS” screen (Call
Sign).
u P ush [Z](F-1) to display the “UR” screen, and rotate
[MAIN DIAL] to select UR call sign, then push [SET]
(F-4).
 •Firstselectingthecallsignmemorygroupsbypushing
[TS•GRP]or[GRP](F-5)makesitmoreconvenient.
• When calling CQ : Select “CQCQCQ”
• When calling an individual station
: Select the station’s call sign
i P ush [Z](F-1) to display the “R1” screen, and rotate
[MAIN DIAL] to select the access repeater call sign,
then push [SET](F-4).
 •Firstselecting therepeatercall sign groupmakes it
more convenient, if you have programmed repeaters
into Groups. (p. 93)
 •Push[NAME](F-4)totogglethecallsignandrepeater
name display, if the name has been programmed.
o P ush [Z](F-1) to display the “R2” screen, and rotate
[MAIN DIAL] to select the link repeater call sign in
the same zone, then push [SET](F-4).
!0
P ush [Z](F-1) todisplay“MY,”andsetyourowncall
sign if necessary, then push [SET](F-4).
!1 Push [PTT] on the microphone to transmit. (or
[TRANSMIT] on the transceiver)
 •TheMAINBandTX/RXindicatorlightsred.
!2 Release [PTT] to receive. (or push [TRANSMIT]
again)
 •Ifanotherstationsreplies,it’scallsignwillbestoredin
the receive log.
 •Receivedcallsignscanbeautomaticallystoredintothe
received call record. See page 95 for details.
After setting, rotate [M-CH] to select a memory
channel, then hold down [MW] for 1 second to save
this temporary programmed data into the channel.

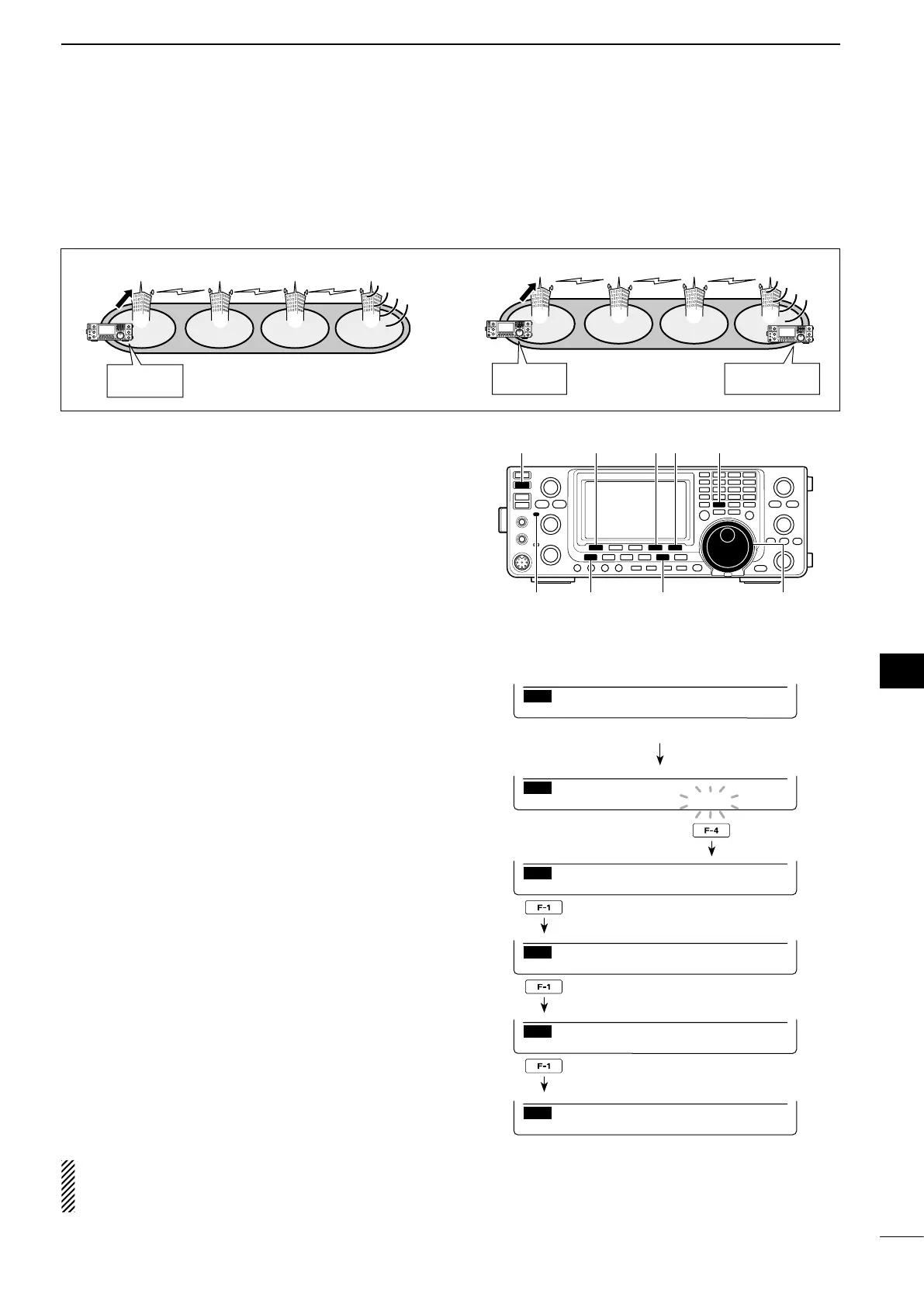

D Making a CQ call or a call to an individual station through a link repeater in the same
zone (Zone call)
