Icom IC-9100 User Manual

106
8
DV MODE OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
• Calling CQ
UR
MY
MY
Ú
≈ JA3YUA ⁄ MY1
CLR EDT NAME
UR
Ú
≈ CQCQCQ UR
CLR EDT NAME GRP
MY call sign：
JA3YUA
CQ
• Calling an individual station
UR
MY
MY
Ú
≈ JA3YUA ⁄ MY1
CLR EDT NAME
UR
Ú
≈ JG3YMK UR
CLR EDT NAME GRP
My call sign：
JA3YUA
Station call sign：
JG3YMK
[TRANSMIT]
MAIN Band
TX/RX indicator
[MAIN DIAL]
[DV•DR][MENU]
[VFO/MEMO][UR]/[SET]
CS CD R>CS UR DSET
M3
UR
≈ UR
JG3LUK
GRP
UR
≈
CQCQCQ
SET GRP
U––
Rotate [MAIN DIAL]
• When calling CQ
q Select the desired frequency band. (p. 35)
w Push [VFO/MEMO] to select the VFO mode.
e Push [DV•DR] to select the DV mode.
r Set the desired frequency. (p. 37)
 •Selecttheoutputpower,ifdesired.(p.46)
 •When the duplex operation is selected, push [MENU]
one or more times to display the “M1” screen (Menu 1)
and push [DUP](F-2) one or more times to turn it OFF.
t Push [MENU] twice to display the “M3” screen
(Menu 3).
ySetyourowncallsignasthecurrentMYcallsign.
(p. 85)
u Push [UR](F-4) to enter the UR call sign selection
mode.
i Rotate [MAIN DIAL] to select UR call sign.
 •Firstselectingthecallsignmemorygroupsbypushing
[TS•GRP]or[GRP](F-5)makesitmoreconvenient.
• When calling CQ : Select “CQCQCQ”
• When calling an individual station
: Select the station’s call sign
o Push [SET](F-4) to return to the “M3” screen (Menu
3).
!0 Push [PTT] on the microphone to transmit. (or
[TRANSMIT] on the transceiver)
 •TheMAINBandTX/RXindicatorlightsred.
!1 Release [PTT] to receive. (or push [TRANSMIT]
again)
 •Ifanotherstationreplies,it’scallsignwillbereceived.
 •Receivedcallsignscanbeautomaticallystoredintothe
received call record. See page 95 for details.
After setting, rotate [M-CH] to select a memory
channel, then hold down [MW] for 1 second to save
this temporary programmed data into the channel.
NOTE: The digital mode is vastly different than the
FM mode. One of the differences is that changing
the squelch setting in the digital mode will not open
it to hear the hiss of “white noise,” like it does in the
FM mode. It is only activated for digital squelch func-
tions such as CSQL (Digital code squelch) or DSQL
(Digital call sign squelch).

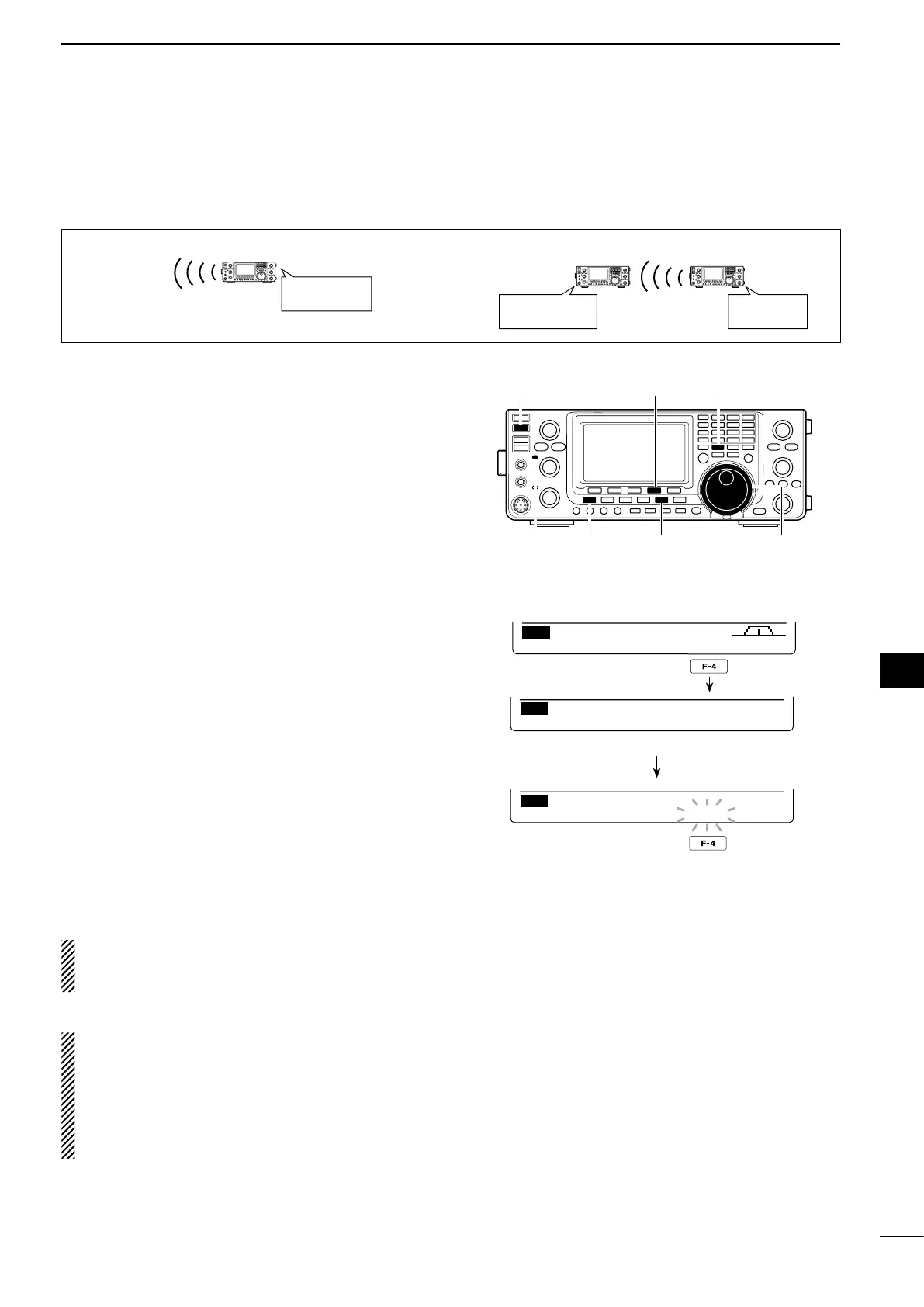

■ Simplex operation using the VFO
D Making a simplex CQ call or a call to an individual station
