Icom IC-9100 User Manual

16
1

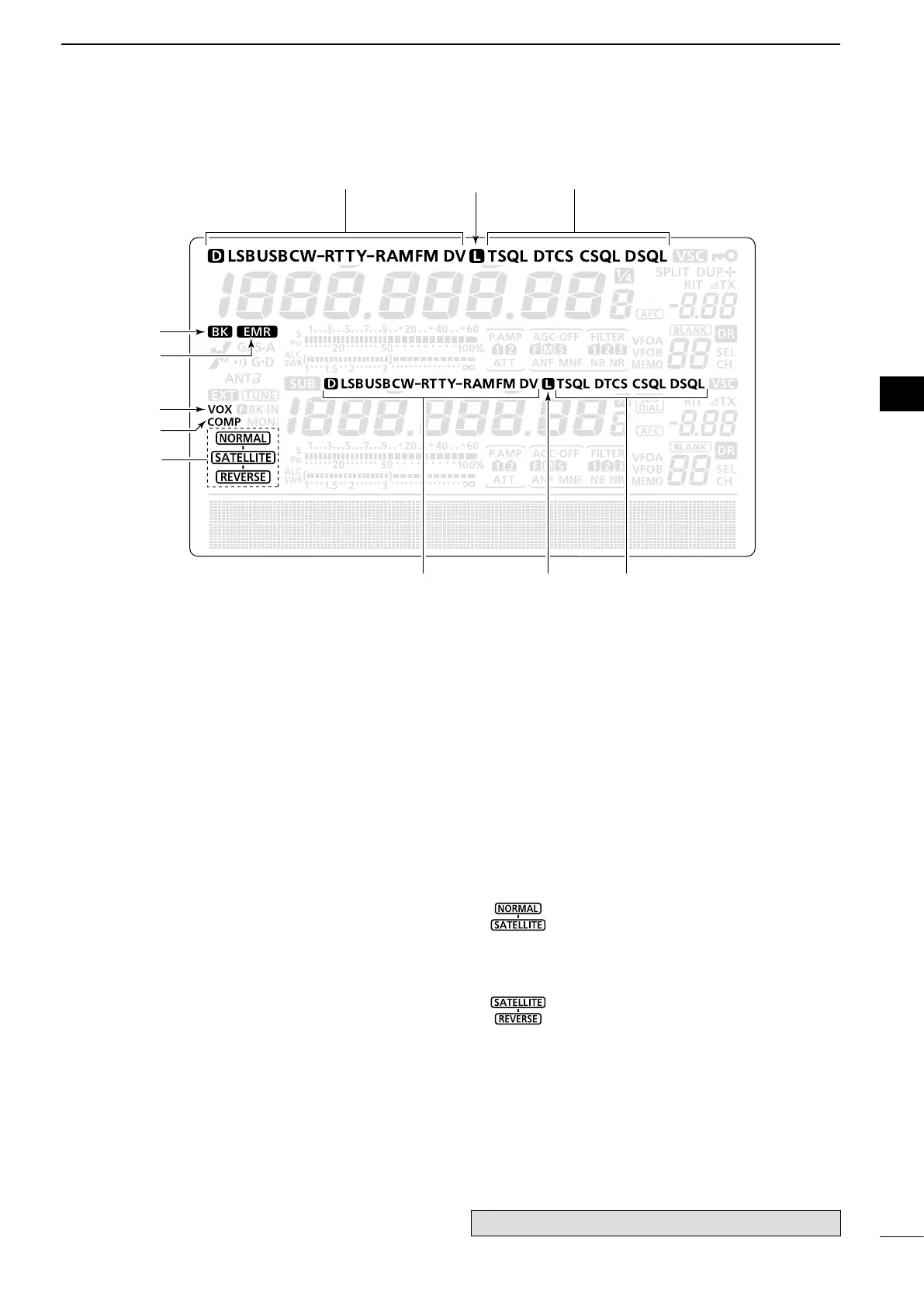

PANEL DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
!5 !3!4
!
5
@0
!6
!8
!9
!
4
!
3
!7
!3 TONE SQUELCH ICONS
(Mode: FM)
 ➥“T” appears when the repeater tone function is
ON. (p. 65)
 ➥“TSQL” appears when the tone squelch function
is ON. (p. 62)
 ➥“DTCS” appears when the DTCS code squelch
function is ON. (p. 63)
(Mode: DV)
 ➥“DSQL” appears when the digital call sign squelch
function is ON. (p. 114)
 ➥“CSQL” appears when digital code squelch func-
tion is ON. (p. 114)
!4 PACKET LOSS ICON
(Mode: DV)
 Appears
when the Packet Loss occurs.
 •Whileoperatingvoicecommunicationorlow-speeddata
communication via the internet network, some packets
may be lost due to network error (poor data throughput
performance). (p. 117)
!5 MODE ICONS (p. 43)
Displays the selected operating mode.
 •“D” appears when SSB data, AM data or FM data mode
is selected.
!6 BK MODE ICON (p. 116)
(Mode: DV)
 ➥Appears when the BK (Break-in) function is
turned ON.
• The BK function allows you to break into a conversa-
tion, where the two original stations are communicat-
ing with call sign squelch enabled.
➥Blinks when receiving a break-in call.
!7 EMR MODE ICON (p. 115)
➥ Appears when the EMR (Enhanced Monitor Re-
ceive) communication mode is selected.
  •IntheEMRcommunicationmode,nocallsignset-
ting is necessary when operating in the DV mode.
➥Blinks when receiving an EMR signal.
!8 VOX ICON (p. 78)
Appears when the VOX function is activated.
!9 SPEECH COMPRESSOR ICON (p. 80)
Appears when the Speech Compressor function is
turned ON.
@0 SATELLITE ICON (p. 153)
Appears while the satellite mode is selected.
The optional UT-121 is required for DV mode operation.
: Normal satellite mode is selected.
 •When[MAINDIAL] is rotated, both down-
link and uplink frequencies simultaneously
increase or decrease in the same step.
: Reverse satellite mode is selected.
 •When [MAIN DIAL] is rotated clockwise,
downlink frequency increase, and uplink
frequency decrease in the same step.
 •When[MAINDIAL] is rotated counterclock-
wise, downlink frequency decrease, and up-
link frequency increase in the same step.
