Product Information MD320/MD320N User Manual
26
D
W
A
H1
H
B
2.5.2 Physical Dimensions and Mounting Hole Dimensions
Table 2-3 Physical Dimensions and Mounting Hole Dimensions (mm)
Model
Mounting
Hole mm
Physical Dimensions mm
Diameter of
Mounting
Hole mm
Weight
(kg)
A B H H1 W D
MD320S0.4G
113 172 182 / 123 145 ø5.4 1.1
MD320S0.7G
MD320S1.5G
MD320S2.2G
MD320T0.7GB
MD320T1.5GB
MD320T2.2GB
MD320T2.2GB
(Build-in PG )Card
147 236 246 / 158 165 ø5.4 2.5
MD320T3.7GB
MD320T5.5PB
MD320T5.5GB
MD320T7.5PB

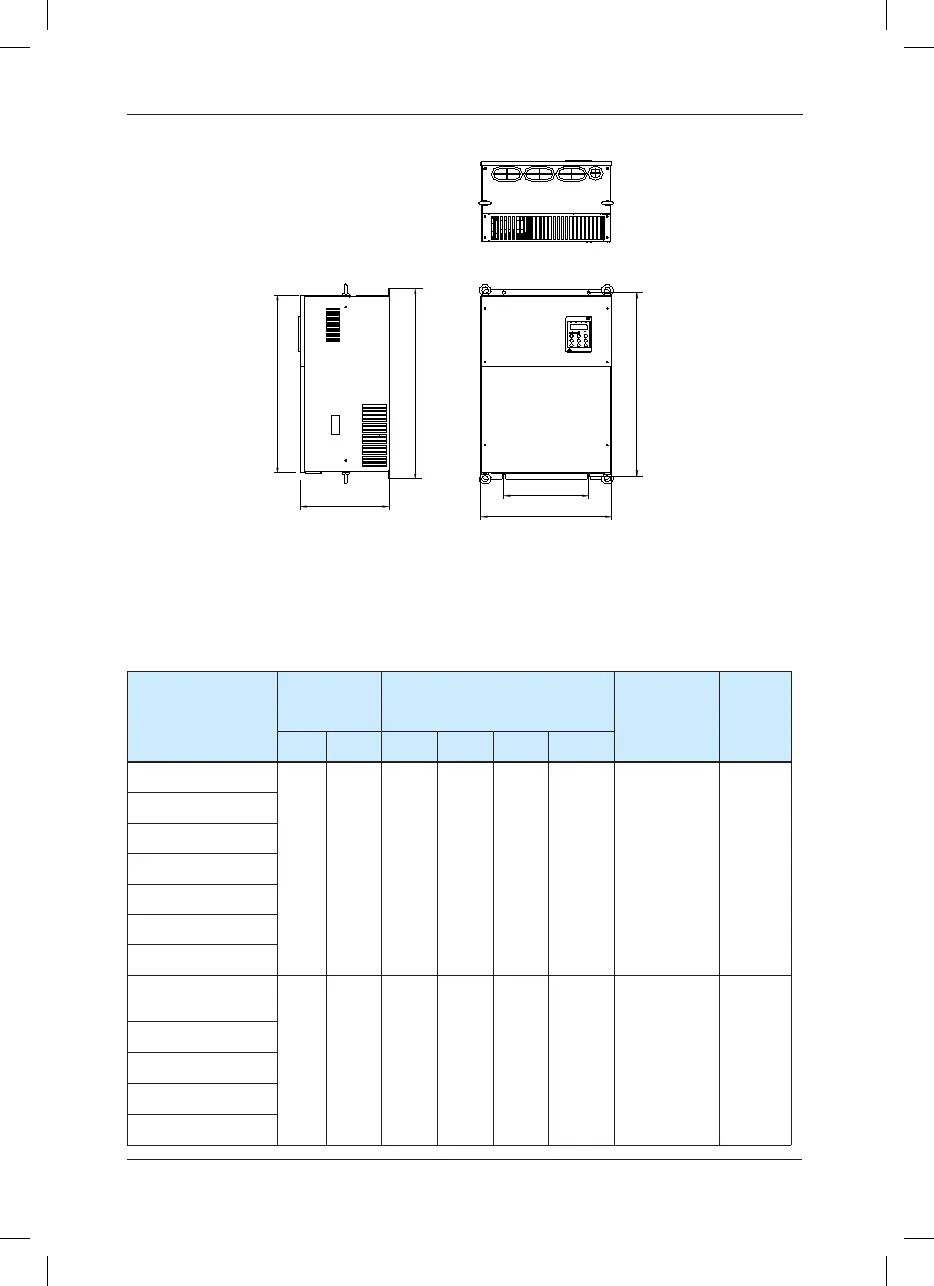

Fig. 2-8 MD320N Series Schematic Diagram for Physical Dimensions and Mounting
Dimensions of 18.5kW
～
450kW
