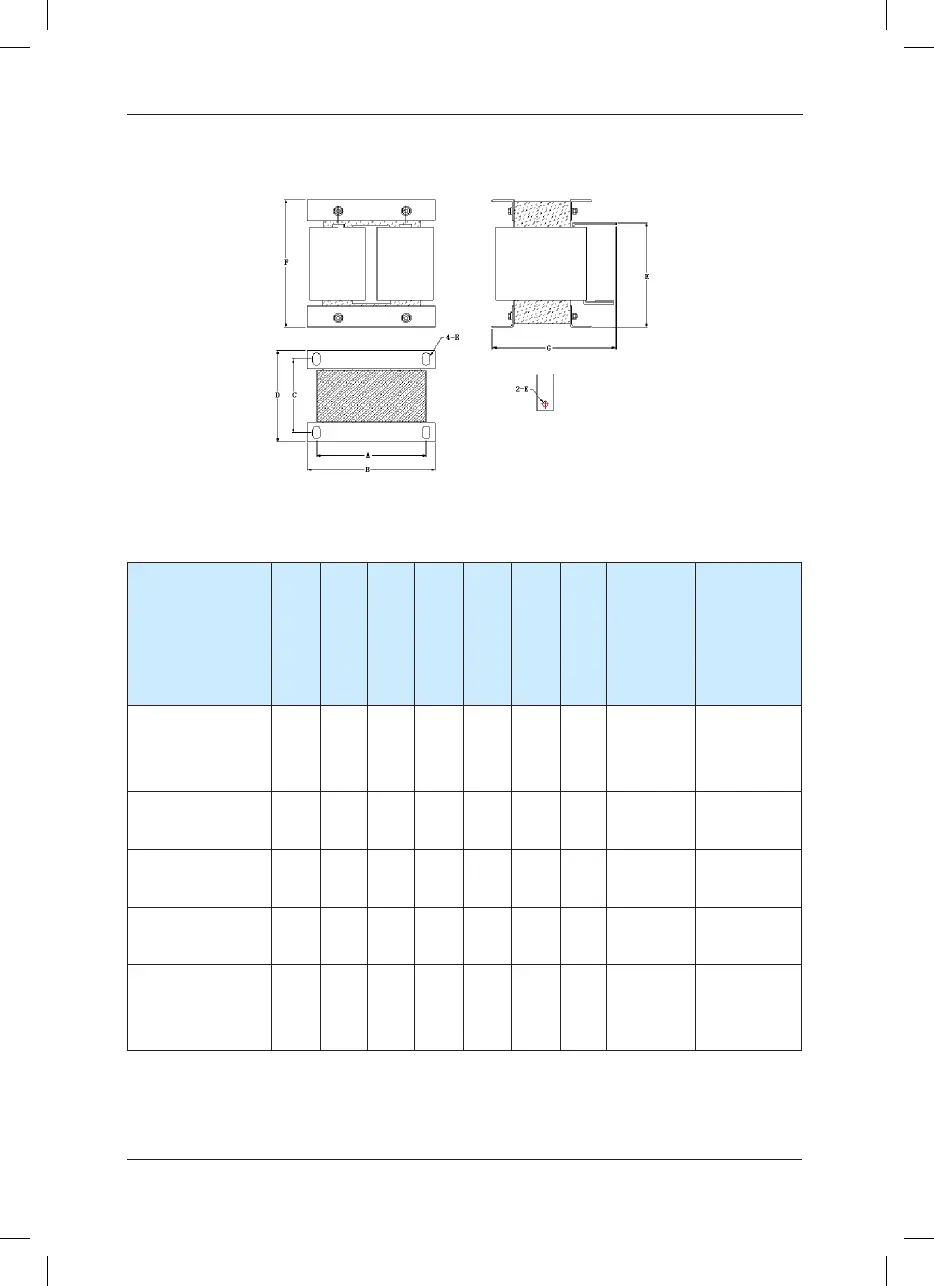

2.5.4 Schematic Diagram for Dimensions of External DC Reactor
Fig. 2-11 Schematic Diagram for Dimensions of External reactor
Table 2-5 Adaptable Inverter Model
Adaptable
Inverter Model
A B C D E F G
Mounting
holes
Connection
Diameter
Hole of
the copper
medal
MD320T75G/90P/
90G/110P/110G
/132P
160 190 125 161 192 255 195 10*15 Ø12
MD320T132G/160P
/160G
160 190 125 161 192 255 195 10*15 Ø12
MD320T200P/200G
/220P/220G/250P
190 230 93 128 250 325 200 13*18 Ø15
MD320T250G/280P
/280G/315P
190 230 93 128 250 325 200 13*18 Ø15
MD320T315G/355P/
355G/400P/400G
/450P
224 250 135 165 260 330 235 12*20 Ø14
Caution:For special requirements, the user can customize non-standard products.
*External DC reactor installation mode:
MD320 series inverter of more than 75kW produced by Shenzhen Inovance Technology Co.,
