LF 3400 / LF 3800

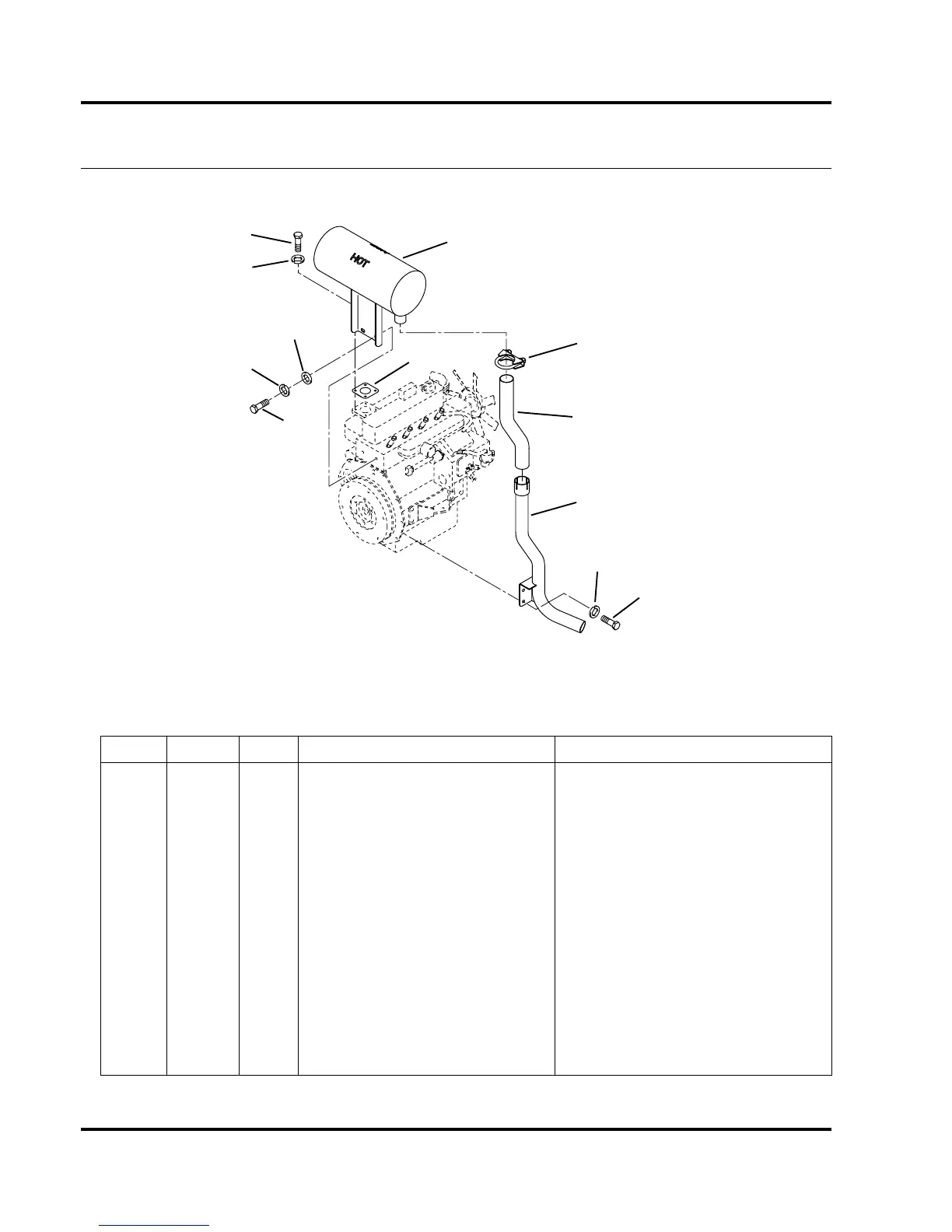

14.1 Engine Exhaust
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
1004653 1 Muffler LF 3400 & 3800 Only
1
1002931 1 Muffler LF 3400 Turbo, LF 4675, LF 4677
2 1004598 1 Tailpipe
3 363586 6 Screw, M8-1.25 x 20mm Hex Head
4 452006 2 Flat Washer, 5/16
5 363485 2 Lockwasher, M10 Heavy
6 366884 2 Bolt, M10-1.25 x 25mm Hex Head
7 446136 6 Lockwasher, 5/16 Heavy
8 553020 1 Gasket, Exhaust
9 348856 1 Clamp, Exhaust
10 3007889 1 Sleeve Insulating
